Description

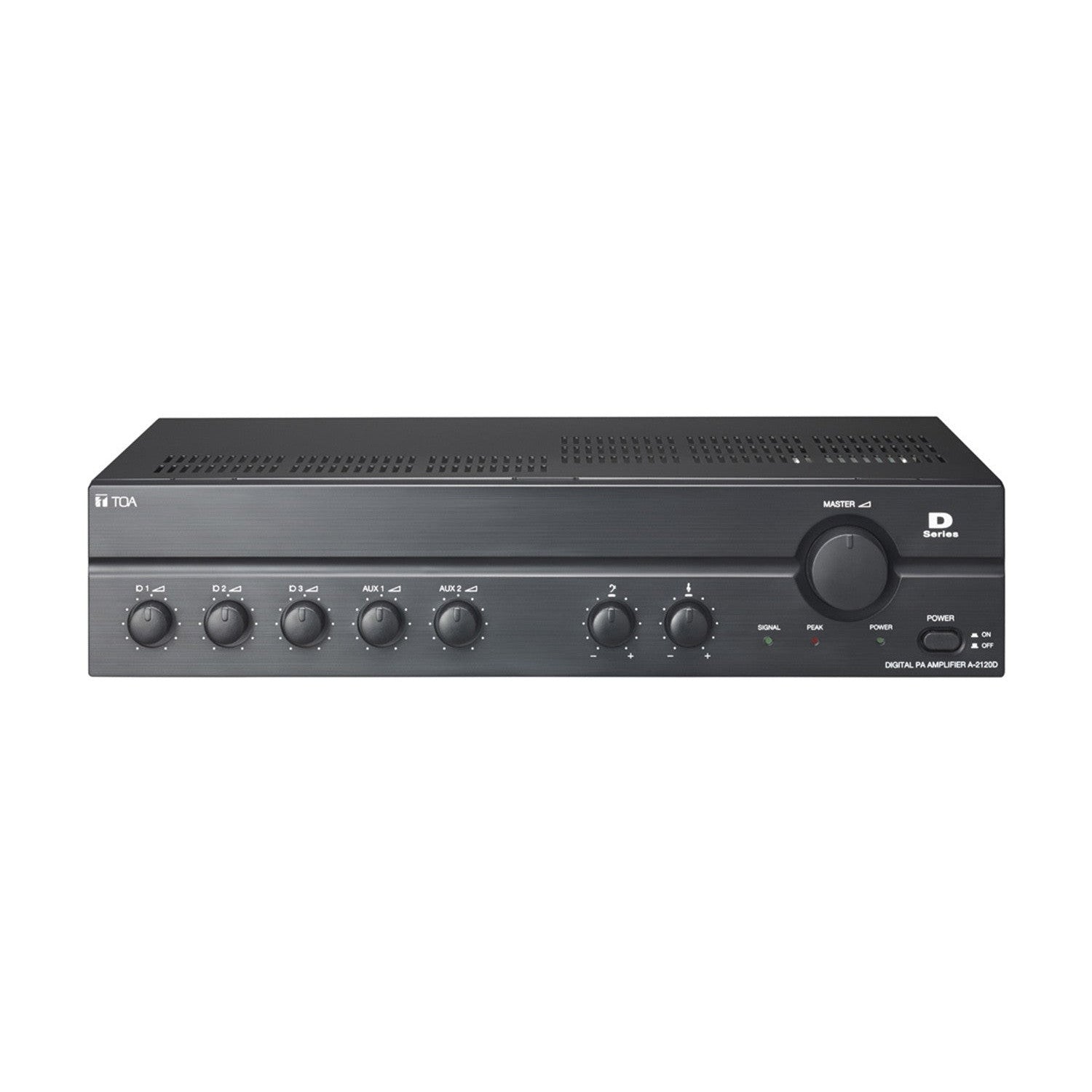

The A-2120D is a range of high performance digital mixer power amplifier suited for broadcasting paging and/or background music in schools, retail shops, offices, factories, houses of worship and large function rooms.
FEATURES:
- 120 W
- User-friendly front panel allows easy operation
- Excellent frequency response
- Phantom power is provided to MIC 1, for supplying power to a condenser microphone
- Recording output
- 3 MIC inputs, 2 AUX inputs
SPECIFICATION:
Power Source
Rated Output
Power Consumption
- 34 W (AC operation at 1/8 maximum output without clip)
Frequency Response
Distortion
- Under 1% at 1 kHz, 1/3 rated power
Input
- MIC 1-3: -60 dB*, 600 Ω, balanced, phone jack
- AUX 1, 2: -20 dB*, 10 kΩ, unbalanced, RCA pin jack
Output
- Speaker out: Balanced (floating)
- High impedance: 83 Ω (100 V)
- Rec out: 0 dB*, 600 Ω, unbalanced, RCA pin jack
Phantom Power
S/N Ratio
Tone Control
- Bass: ±10 dB at 100 Hz
- Treble: ±10 dB at 10 kHz
Muting
- MIC 1: Mutes other input signals by 0-30 dB attenuation
Indicator
- Power LED, peak LED, signal LED
Finish
- Panel: ABS resin, black
- Case: Steel plate, black
Dimensions
- 420 (W) × 100.6 (H) × 280.3 (D) mm (16.54" × 3.96" × 11.04")
Weight
Manufacturer: TOA
