Description

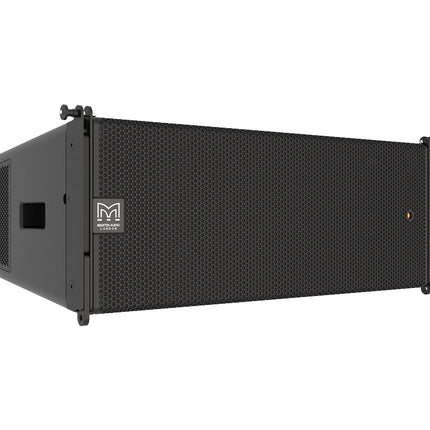

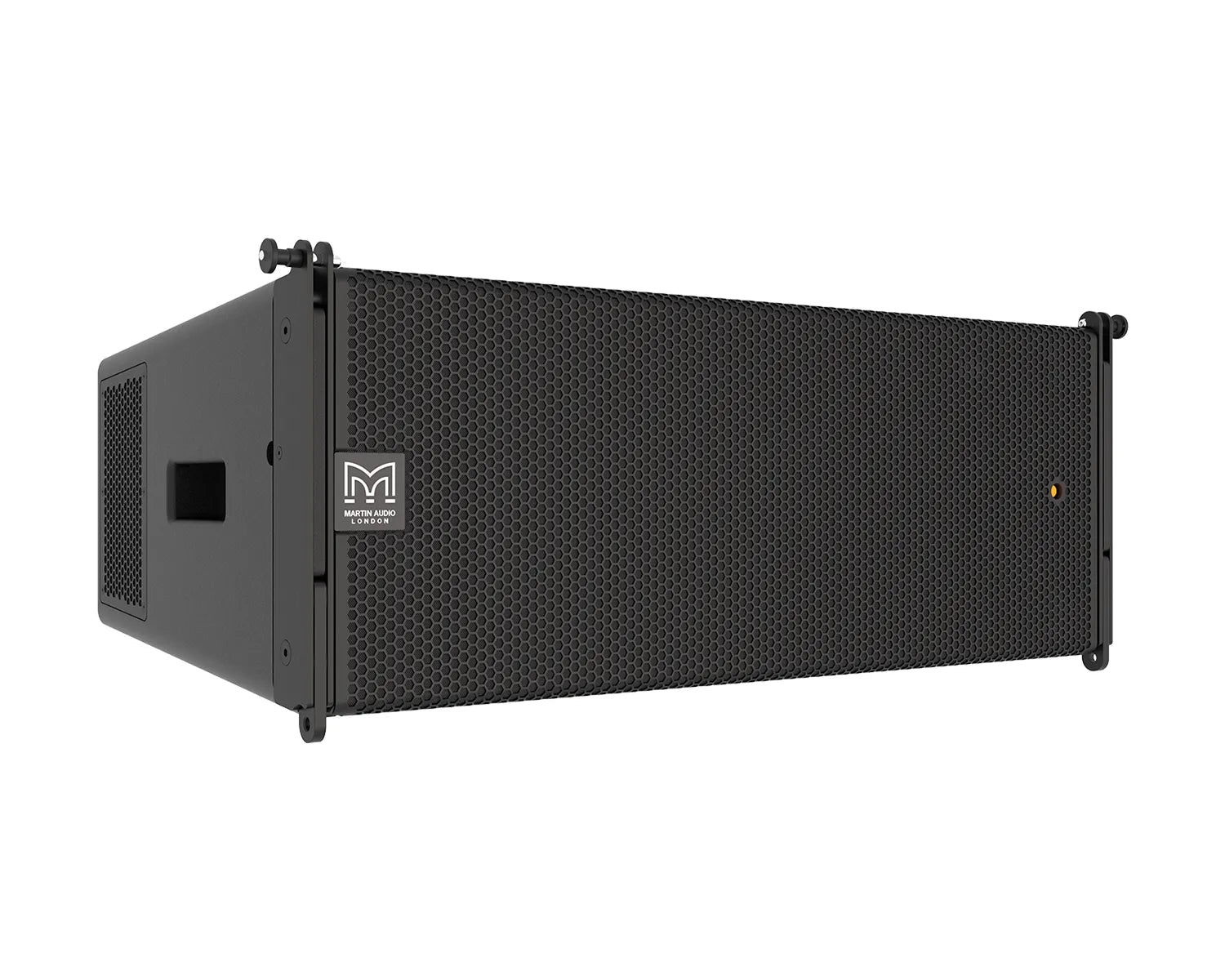

WPC is a medium-format, three-way bi-amped line array that delivers premium Wavefront Precision performance to a wider range of users, applications and budgets. Sitting at the heart of the series, WPC combines innovative horn-loaded acoustics, excellent output-to-weight ratio, and scalable resolution optimisation to give rental partners and integrators a system that punches far above its footprint.
From Q2 2026, WPC systems are designed to withstand tougher environmental conditions, feature LED circuit visibility, and enjoy blazing-fast DISPLAY 3 optimisation software with enhanced LF control.
Designed for tours, festivals, live venues, sports grounds, and large-scale corporate or House of Worship installations, WPC offers the control, consistency and projection normally associated with larger systems — but with the truck space, weight and budget profile of a compact array.
With a peak output of 135 dB (141 dB with crest factor 4) and the ability for a 12-box hang to project over 60 metres (200 ft) while delivering full rock-and-roll levels to a 5,000-seat audience, WPC is the definition of medium-format done right.
If fidelity, precision and ROI matters, this is the moment to choose WPC.
Product Features
3-way bi-amp, 2 x 10” compact line array
Scalable resolution for advanced array control
External, dedicated, multi-channel Class D amplification
Industry-leading DISPLAY software interacts with DSP for highly-accurate results
Fast, integral 3-point flying systems for up to 16 enclosures
Side and rear handles for ease of handling and setting splay angles
100° horizontal constant directivity pattern control
Product Specifications
Type: Three-way, bi-amp line array element
Frequency Response: 65Hz-18kHz ± 3dB
Drivers:
LF: 2 x10” (250mm)/2.5” (63mm) voice coil, long excursion, vented pole, neodymium magnet drivers, Hybrid® slot-horn loaded
MF: 2 x 5” (125mm)/1.5” (38mm) coil, neodymium magnet drivers, horn loaded
HF: 4 x 0.7” (19mm) exit neodymium magnet compression drivers, horn loaded
System Amplifier: iKON iK42
System Resolution: 1 to 3 enclosures per pair of amplifier channels (Bi-amp)
Rated Power:
LF: 500 W AES, 2000 W peak
MF/HF: 180 W AES, 720 W peak
Maximum SPL: 135dB peak
Nominal Impedance: LF: 8 ohms, MF + HF: 8 ohms
Dispersion: 100º horizontal (-6dB), 130º horizontal (-10dB), 10° vertical
Crossover: 440Hz active, 4.4kHz internal passive
Enclosure: Vertical trapezoid with 5º wall angle, multi-laminate birch and poplar-ply construction
Finish: Black or white hardwearing paint
Protective Grille: Black or white HEX perforated steel with network LED
Environmental Testing:
IP 54
MIL-STD-810H
ISO 4892-2 Solar Radiation
ISO 12944-6 Category C3 Corrosion resistance
Connectors: 2 x NL4 type
Pin Connections: LF: 1+/1-, MF + HF: 2+/2-
Fittings:
3-point rigging system
2 x side pocket handles
2 x rear grip handles
Flown Array Maximum: 16 enclosures in single array
Dimensions: (W) 772mm x (H) 319mm x (D) 421mm
Weight: 35kg
