Description

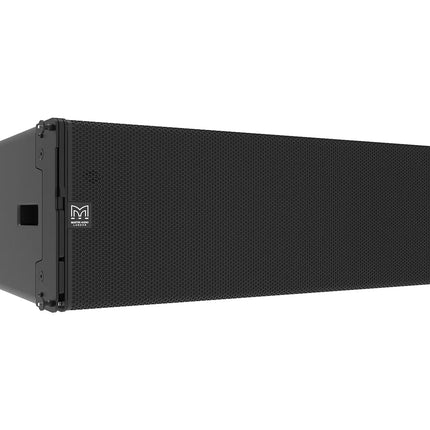

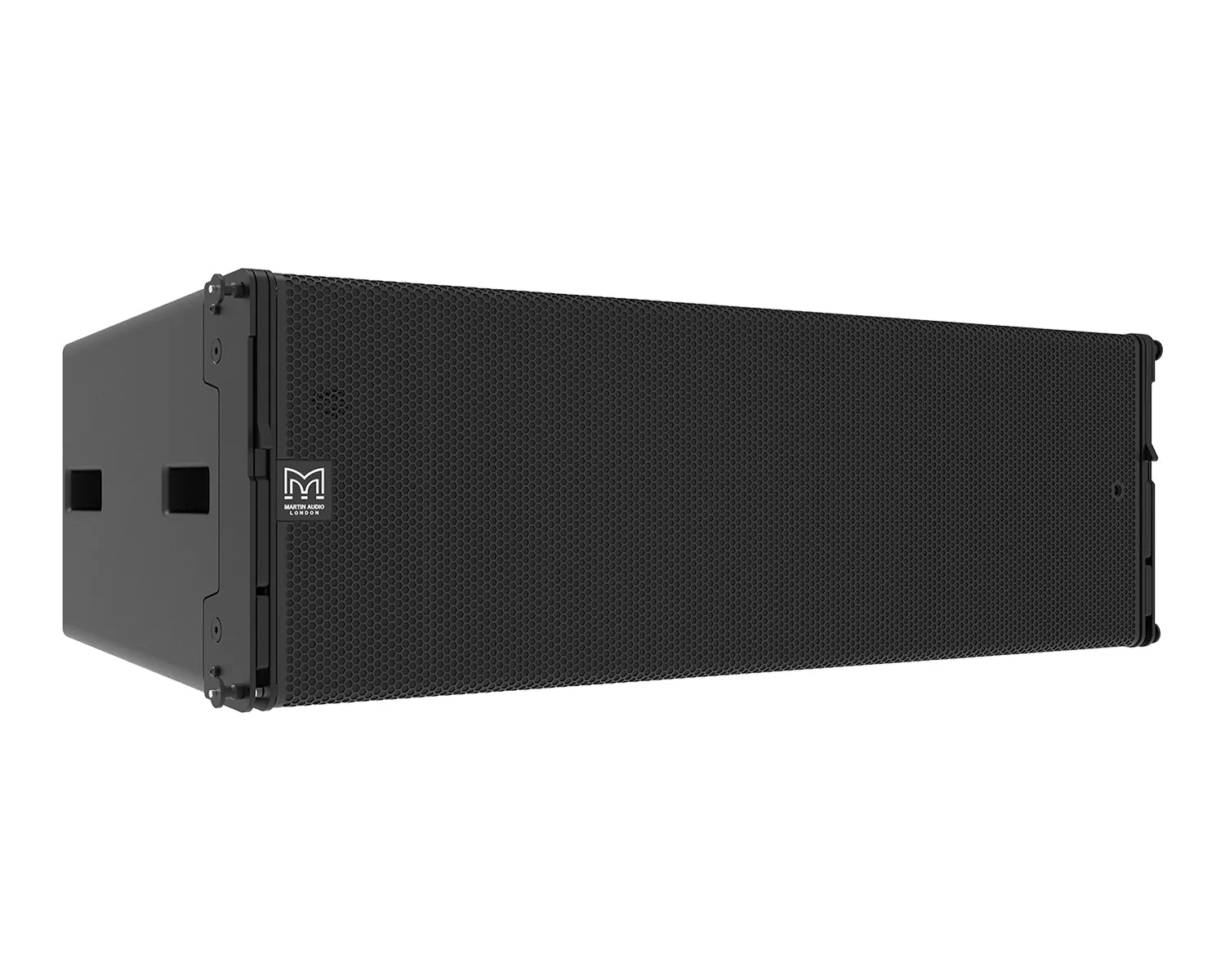

WPL is a 3-way, bi-amped, large-format line array with dual 12” LF, scalable resolution optimisation, and the ability to deliver stadium-level and large festival output with extraordinary control.
At just 64kg [116lbs] its power output to weight relationship provides additional efficiency in trucking space and speed of deployment.
From Q2 2026, WPL systems are designed to withstand tougher environmental conditions, feature LED circuit visibility, and enjoy blazing-fast DISPLAY 3 optimisation software with enhanced LF control.
If fidelity, precision and ROI matters, this is the moment to choose WPL.
Product Features
3-way bi-amp, 2 x 12” large format line array
All-horn, maximum-efficiency design
Exceptional signature sonic performance
Exemplary 90° horizontal constant directivity pattern control
External, dedicated, multi-channel Class D amplification
Scalable resolution for flexible optimisation of coverage, consistency and control
Industry-leading DISPLAY software interacts with DSP for highly-accurate array optimisation
Fast, integral 3-point rigging for up to 24 enclosures
Compact and light weight design with discreet side handles for ease of handling
Product Specifications
Type: Three-way, bi-amp line array element
Frequency Response: 52Hz-18kHz ± 3dB
Drivers:
LF: 2 x 12” (300mm)/3” (75mm) voice coil, ultra-long excursion, neodymium magnet drivers, Hybrid® bass horn loaded
MF: 2 x 6.5” (165mm)/2” (50mm) coil, neodymium magnet drivers, horn loaded
HF: 3 x 1” (25mm) exit neodymium magnet compression drivers, horn loaded
System Amplifier: iKON iK42
System Resolution: 1 or 2 enclosures per pair of amplifier channels (Bi-amp)
Rated Power:
LF: 800 W AES, 3200 W peak
MF/HF: 500 W AES, 2000 W peak
Maximum SPL:
LF: 139dB
MF: 140dB
HF: 145dB
Nominal Impedance: LF: 8 ohms, MF + HF: 8 ohms
Dispersion:
90º horizontal (-6dB), 120º horizontal (-10dB)
7.5° vertical
Crossover: 320Hz active, 4kHz internal passive
Enclosure: Vertical trapezoid with 3.75º wall angle, multi-laminate birch and poplar-ply construction
Finish: Black or white hardwearing paint
Protective Grille: Black or white HEX perforated steel with network LED
Environmental Testing:
IP 54
MIL-STD-810H
ISO 4892-2 Solar Radiation
ISO 12944-6 Category C3 Corrosion resistance
Connectors: 2 x NL4 type
Pin Connections: LF: 1+/1-, MF + HF: 2+/2-
Fittings:
3-point rigging system
4 x side pocket handles
Flown Array Maximum: 24 enclosures in single array
Dimensions: (W) 1136mm x (H) 371mm x (D) 526mm
Weight: 64kg
