Description

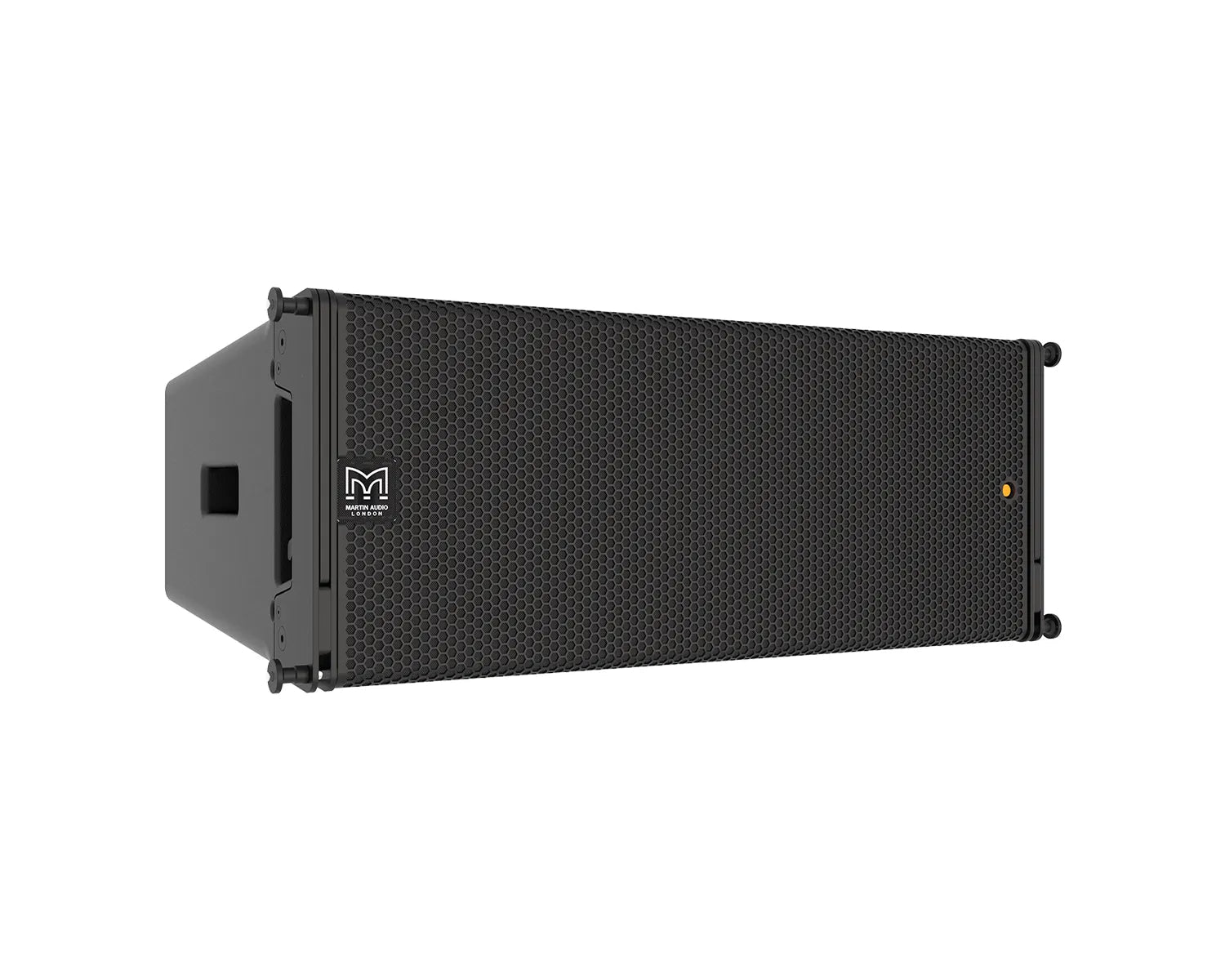

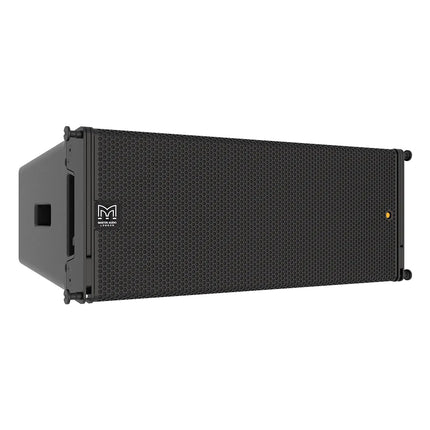

WPS is a state-of-the-art, medium-compact Wavefront Precision line array, engineered for small to medium-scale touring and install applications where high output, pattern control and deployment flexibility are required. With a peak SPL of 133 dB (139 dB with crest factor 4), WPS delivers full-spectrum clarity, consistent coverage and reliable performance from compact enclosures, making it ideal for theatres, concert halls, Houses of Worship and corporate AV events.
Lightweight and space-efficient, WPS also shines as side-hangs, front-fill, or delay arrays in larger Wavefront Precision systems, maximising rental ROI and system versatility.
From Q2 2026, WPS systems are designed to withstand tougher environmental conditions, feature LED circuit visibility, and enjoy blazing-fast DISPLAY 3 optimisation software with enhanced LF control.
If fidelity, precision and ROI matters, this is the moment to choose WPS.
Product Features
3-way passive, 2 x 8” small line array
Scalable resolution for advanced array control
External, dedicated, multi-channel Class D amplification
Industry-leading DISPLAY software interacts with DSP for highly-accurate results
Fast, integral 3-point flying systems for up to 16 enclosures
Side and rear handles for ease of handling and setting splayangles
100° horizontal constant directivity pattern control
Product Specifications
Type: Three-way, passive line array element
Frequency Response: 70Hz-18kHz ± 3dB
Drivers:
LF: 2 x 8” (200mm)/2” (50mm) voice coil, long excursion, vented yoke, neodymium magnet drivers
MF: 4 x 4” (100mm)/1” (25mm) coil, neodymium magnet drivers, compression loaded
HF: 4 x 1” (25mm) exit/1.4” (35mm) HT Polymer diaphragm, neodymium magnet compression drivers
System Amplifier: iKON iK42
System Resolution: 1 to 3 enclosures per amplifier channel
Rated Power: 500 W AES, 2000 W peak
Maximum SPL: 133dB peak
Nominal Impedance: 6 ohms
Dispersion: 100º horizontal (-6dB), 120º horizontal (-10dB), 10° vertical
Crossover: 520Hz, 1.6kHz internal passive
Enclosure: Vertical trapezoid with 5º wall angle, multi-laminate birch and poplar-ply construction
Finish: Black or white hardwearing paint
Protective Grille: Black or white HEX perforated steel with network LED
Environmental Testing:
IP 54
MIL-STD-810H
ISO 4892-2 Solar Radiation
ISO 12944-6 Category C3 Corrosion resistance
Connectors: 2 x NL4 type
Pin Connections: 1+/1-
Fittings:
3-point rigging system
2 x side pocket handles
2 x rear grip handles
Flown Array Maximum: 16 (installation) and 24 (touring) enclosures in a single array
Dimensions: (W) 650mm x (H) 261mm x (D) 400mm
Weight: 27kg
