Description
Its unique Coaxial Differential Dispersion technology produces a horizontal coverage pattern which varies from 60° when the performer is directly over the monitor, narrowing to 30° further back. This narrowing delivers a near-rectangular coverage plane at head-height to maintain the sound level and balance independent of distance from the monitor.The XE300 enclosure is constructed from multi-laminate birch ply, with integral ergonomic handles and finished with a hard-wearing paint. A strong, perforated steel grille with an acoustically transparent cloth backing provides protection for the Coaxial Differential Dispersion driver, while moulded feet on the base prevent movement onstage with additional rubber feet on the side panels providing added protection if the monitor is upended when carrying.Frontal reflex ports couple with the floor to increase LF output and inbuilt risers can be used to increase the monitoring angle for longer-throw applications.XE Series monitors are designed as a complete system with the iK42 4-channel Class D Amplifier, offering a unique combination of power and audio performance seamlessly combined with advanced DSP, proprietary VU-NET™ software control and Dante™ digital audio networking. State of the art components and a finely optimised design results in generous power reserves that ensures pristine sound quality is maintained even under the most extreme conditions. As well as maximising the capability of the monitor, this ensures that the monitor engineer and artist can be confident that they will experience this same high level of consistent performance from an XE monitor anywhere in the world.Product Features

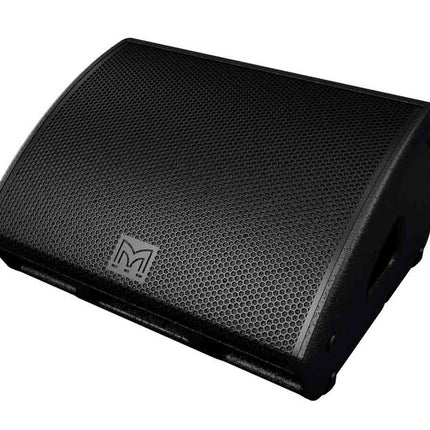

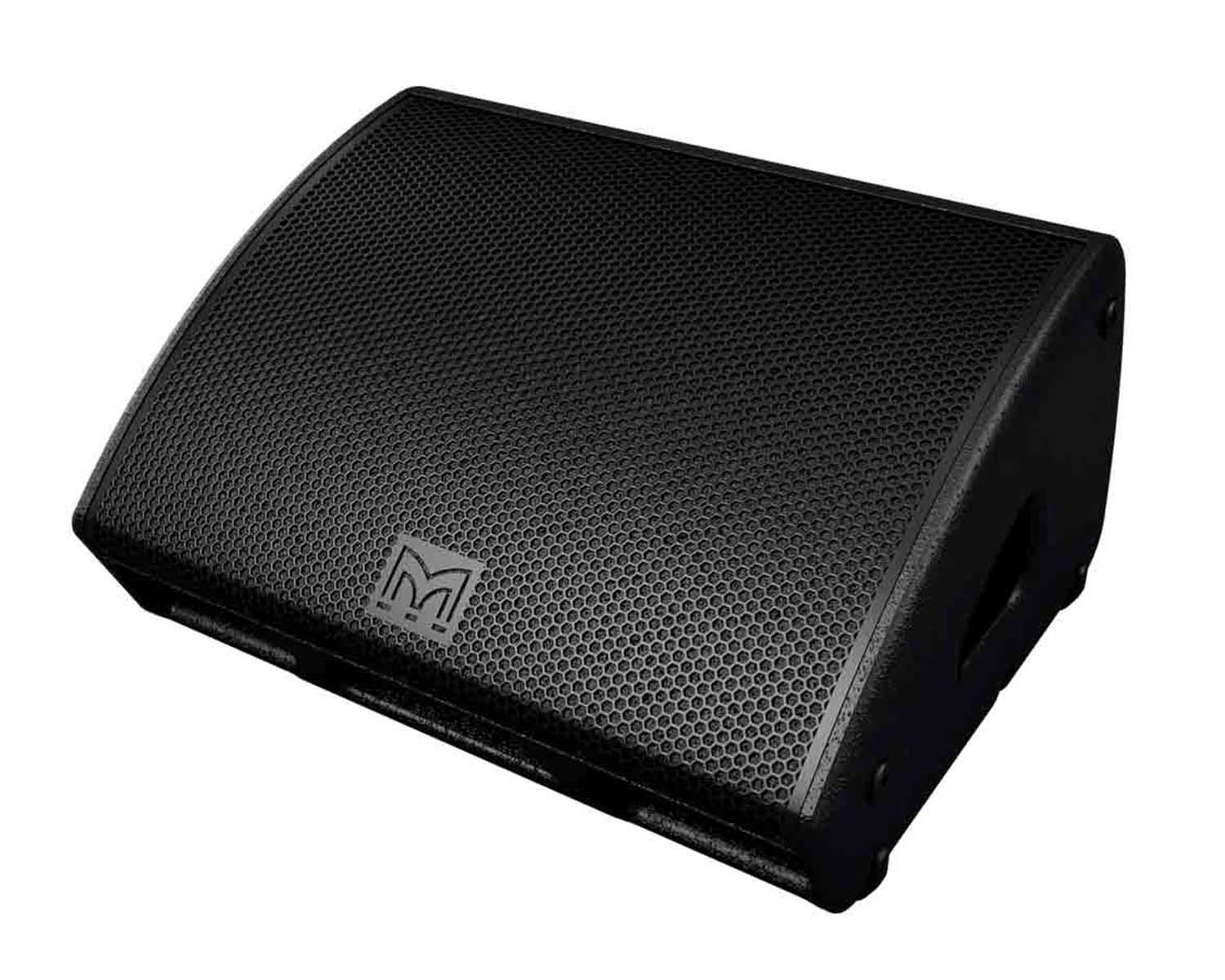

Very high-SPL, compact two-way stage monitor
Coaxial ‘point source’ performance
Differential Dispersion™ technology for consistent coverage
Defined, rectangular coverage plane at head-height
Complete system with iK42 for consistent high performance
Visually-appealing, low-profile plywood enclosures
Built-in risers for steeper monitor angle when required
Side panel rubber feet for extra protection when up-ended
Easy to carry and manoeuvre
M8 rigging inserts
Product SpecificationsGeneral
TYPE: Two-way, bi-amp/passive, Coaxial Differential Dispersion Stage Monitor
FREQUENCY RESPONSE (5): 67Hz-18kHz ± 3dB, -10dB @ 55Hz
DRIVERS:
LF: 12” (300mm)/3” (75mm) voice coil, dual-gap neodymium motor system
HF: 1.4” (35mm) exit/3” (75mm) voice coil, titanium dome compression driver
RATED POWER (2):
LF: 350W AES, 1400W peak
HF: 80W AES, 320W peak
MAXIMUM SPL (9): Bi-amp: 140dB peak. Passive: 139dB peak
SYSTEM AMPLIFIER: iKON® iK42
NOMINAL IMPEDANCE:
LF/FR: 6Ω
HF: 8Ω
DISPERSION (-6DB): 60-30° horizontal, 90° vertical
CROSSOVER: 1.1kHz
ENCLOSURE: Birch/beech ply and hardwood
FINISH: Textured black paint
PROTECTIVE GRILLE: Black perforated steel with scrim cloth backing
BAFFLE ANGLE: 27.5° (40° with risers)
CONNECTORS: 4 x NL4 type
PIN CONNECTIONS: LF/FR: 1+/-, HF: 2+/-
FITTINGS:
2 x pocket handles
Protective rubber feet on base and sides
Built-in risers
4 x M8 inserts
Physical & Dimensions
Height: 290mm
Width: 550mm
Depth: 470mm
Weight: 19kg
