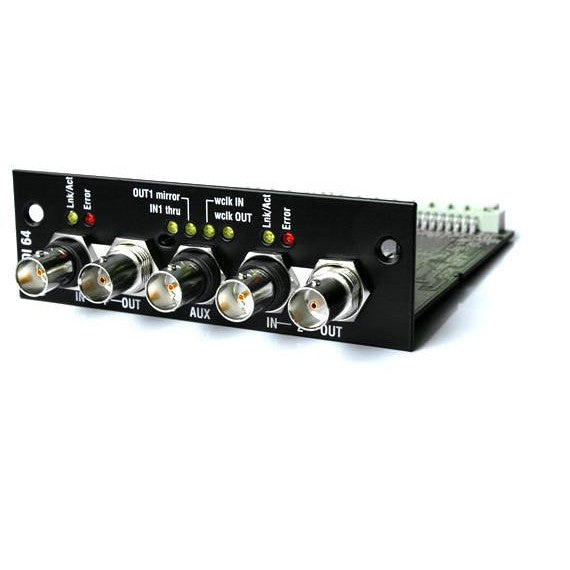

Allen & Heath M-MADI Card Module

Description

The M-MADI dual port MADI card supports two streams of 64 channel bi-directional 24-bit 48kHz serial digital audio transmission using two 75 ohm coaxial cables per port.

 An additional AUX connector can be configured to mirror stream 1 outputs, pass thru stream 1 inputs, or as a word clock input or output. Daisy chain or split signals to multiple devices, sync with either stream or an external word clock.  The second port can be configured as an independent stream or as a redundant backup connection using a second cable.  Signals from either stream can be routed to the iLive channels in blocks of 8.  iLive and GLD outputs can be patched to MADI and appear at both stream outputs.

M-MADI is one of a range of digital audio networking options available for iLive and GLD to enable integration with other systems, digital mic splitting, multi-track recording and system expansion.

It can be fitted to the Port B expansion slot in iLive fixed format MixRacks (iDR-16, iDR-32, iDR-48, iDR-64) or expander (xDR-16), Port A/B in iLive modular MixRacks (iDR0, iDR10) and Port A of iLive modular surfaces if they are fitted with the new RAB-2 standard. It can also be fitted to the I/O Module expansion slot in a GLD mixer, or to any I/O Port on a dLive system when equipped with a M-DL-ADAPT interface.

FEATURES:

SPECIFICATION:

Related Collections:

Product form

SKU: AH-M-MADI

Out of stock

£1,019.00 Incl. VAT

    Delivery informationDelivery information

    There is a free standard delivery option for most UK orders as well as a £2.99 option which means your order will arrive faster than normal.

    For standard delivery your order should arrive within 2-5 working days. For the faster option it should be 1-3 working days.

    If you're from Northern Ireland there will be a £5 surcharge for heavier items. If you're buying a light item (under 2kg) please let us know as we may be able to refund your postage after the purchase.

    Buy now pay laterBuy now pay later

    Paypal Pay in 3 lets you spread your purchase interest free over 3 separate payments.

    If you'd like to use Paypal Pay in 3, please perform the following steps.

    1. Add the item to your cart as normal.

    2. Check out with Paypal.

    3. Log into Paypal.

    4. You should see a screen detailing the item costs. Scroll down and you should see an option for "Pay in 3".

    5. Continue the checkout process.

    1/3 of the purchase price will be taken immediately and then the rest over the next 2 months the rest of the payment will be taken.

    Please see more info about the service here.

    As with any sort of buy now pay later, please only use this service for added convenience when making a bigger purchase. It should only be used if you're 100% sure you can make all of the payments on time.

    Description

    The M-MADI dual port MADI card supports two streams of 64 channel bi-directional 24-bit 48kHz serial digital audio transmission using two 75 ohm coaxial cables per port.

     An additional AUX connector can be configured to mirror stream 1 outputs, pass thru stream 1 inputs, or as a word clock input or output. Daisy chain or split signals to multiple devices, sync with either stream or an external word clock.  The second port can be configured as an independent stream or as a redundant backup connection using a second cable.  Signals from either stream can be routed to the iLive channels in blocks of 8.  iLive and GLD outputs can be patched to MADI and appear at both stream outputs.

    M-MADI is one of a range of digital audio networking options available for iLive and GLD to enable integration with other systems, digital mic splitting, multi-track recording and system expansion.

    It can be fitted to the Port B expansion slot in iLive fixed format MixRacks (iDR-16, iDR-32, iDR-48, iDR-64) or expander (xDR-16), Port A/B in iLive modular MixRacks (iDR0, iDR10) and Port A of iLive modular surfaces if they are fitted with the new RAB-2 standard. It can also be fitted to the I/O Module expansion slot in a GLD mixer, or to any I/O Port on a dLive system when equipped with a M-DL-ADAPT interface.

    FEATURES:

    SPECIFICATION:
