Allen & Heath MEU Monitor Hub System

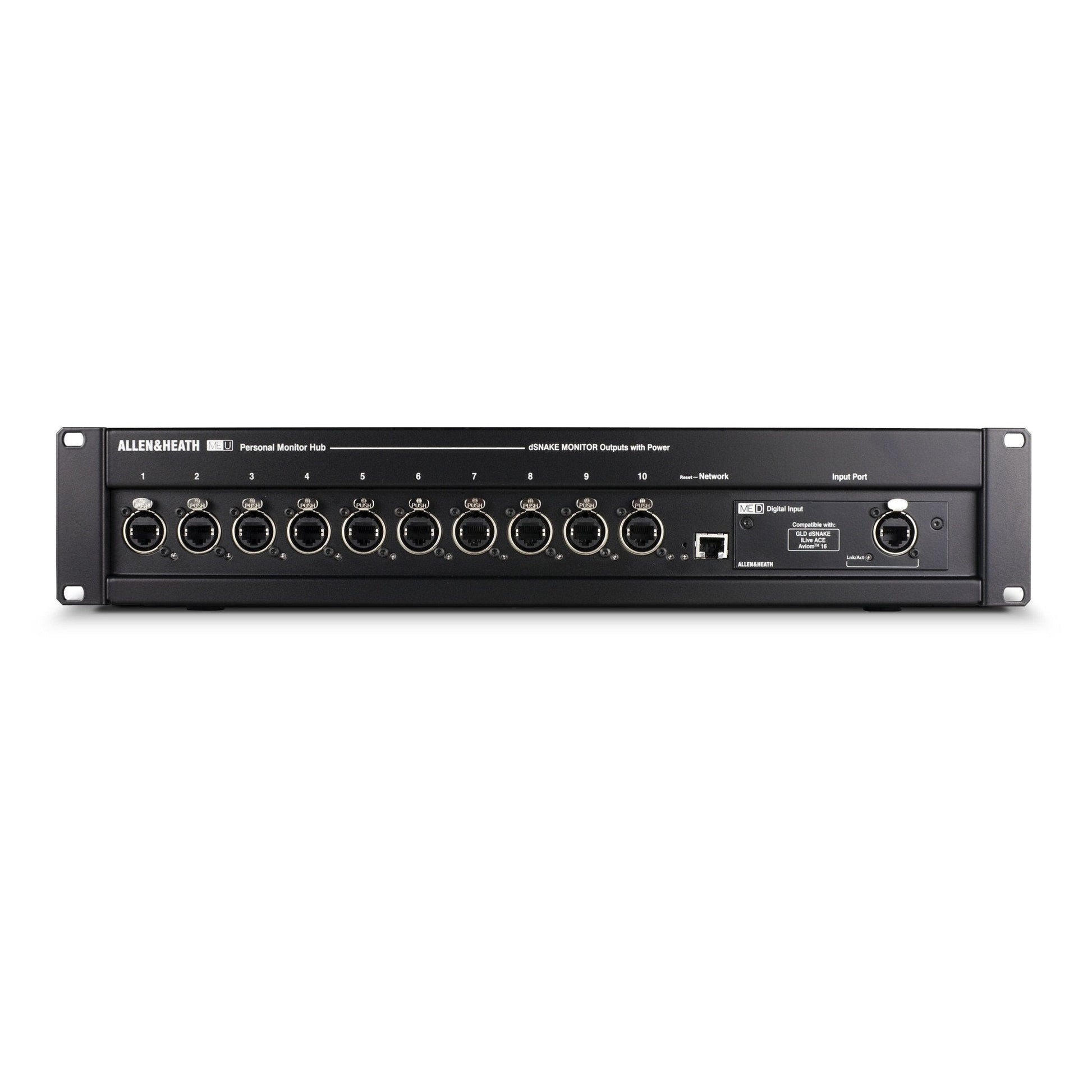

The ME-U is a touring grade, 10 port PoE hub providing power and audio to connect multiple ME-1 personal mixers.

It comes with a standard input card to interface with GLD and Qu dSnake, dLive, iLive ACE or Aviom® A-Net®.

This card can be replaced with a MADI, Dante, Waves SG or EtherSound card to take a digital feed of up to 40 sources from third party systems.

FEATURES:

• Fully customisable
• Intuitive operation
• Compact, smart design
• 40 sources from GLD, Qu, dLive or iLive
• Compatible with MADI, Dante, Waves SG or EtherSound via ME-U hub
• Daisy chain or use standard PoE Ethernet hubs
• 16 assignable keys to suit application

SPECIFICATION:

General

• Input:
  • Card option slot – 40 channels
  • 48kHz digital audio
  • ME-D (dSNAKE, ACE, Aviom®) card provided
  • Aviom® A-Net16 compatible -16 channels
  • M-Dante network card option available
  • M-MADI card option available
  • M-Waves V2 network card option available
  • M-ES-V2 EtherSound card option available
• Outputs:
  • 10 ports
  • Compatible with ME mixers
  • Locking EtherCon connectors
  • PoE available on all output ports
• Network Port:
  • Ethernet TCP/IP
  • System setup + receiving iLive channel data
• Setup:
  • Uses PC or Mac web browser
  • Received or manual channel names
  • Received or manual odd/even stereo links
  • iLive mode for receiving iLive names/links
• Default IP address: 192.168.1.40
• Subnet Mask: 255.255.255.0
• Default Gateway: 192.168.1.254
• Mains Input: 100-240V AC 47-63Hz 250W
• PoE capability: 15W at each ME-U output

Physical & Dimensions

• Width: 482.60mm
• Depth: 253mm
• Height: 92.20mm
• Weight: 4.6kg

Manufacturer: Allen & Heath
