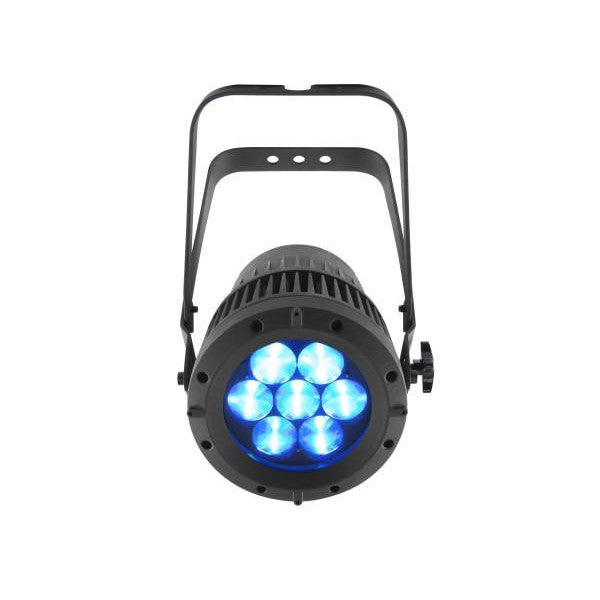

Chauvet COLORado 1 Quad Zoom

The Chauvet Colorado 1-Quad Zoom is an excellent indoor/outdoor wash light with seven Osram RGBW LEDs delivering big time power from a compact, yet solid housing.

It maintains its IP65 rating with IP rated DMX cables, but standard 5-pin XLR DMX cables work perfectly for indoor use. A 13° to 45° zoom gives you ample control over the beam, and selectable dimming curves facilitate the integration of the fixtures into an existing rig.

Centre pixel control provides even more dynamic effects with full 16-bit dimming. Outdoor rated power and data connectors allow for easy connections without proprietary cabling.

FEATURES:

• Built-in auto and custom programs recalled via DMX and Master/Slave
• RGBW colour mixing via DMX or manually
• Zoomable, with a wide zoom range for design versatility
• Tough road-ready construction
• Individual control of outer pixel ring and centre pixel
• Selectable, smooth dimming curves for programming versatility
• 16-bit dimming of individual colours as well as master dimmer
• All environment operation with IP rated power and DMX connections
• 5-pin DMX input/output connections

SPECIFICATION:

General

• OPTICAL
  • Light Source: 7 LEDs (quad-colour RGBW) 15 W, (1 A), 50,000 hours life expectancy
  • Beam Angle: 7° to 32°
  • Field Angle: 13° to 45°
  • Zoom Angle: 13° to 45°
  • Illuminance (13°): 4,009 lux @ 5 m
  • Illuminance (45°): 324 lux @ 5 m
  • PWM Frequency: 1,200 Hz
• DYNAMIC EFFECTS
  • Dimmer: Electronic
  • Zoom: Motorised
  • Strobe Rate: 0 to 20 Hz
  • Standalone Colour Mixing: Yes
  • Colour Temperature Presets: Yes
  • Dim Modes: 5
  • Dim Curves: 4
  • Built-in Automated Programs: Yes
  • Customizable Programs: Yes
  • Recall Custom Programs: Yes
• CONNECTIONS
  • Power Connection: Edison (local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)
• CONTROL
  • Control Protocol: DMX
  • DMX Channels: 3, 4, 5, 6, 7, 10, 12, 17 or 25
  • Modes/Personalities: 12 personalities (AR1D, AR2Z, ARC1, ARC2, ARC2D, ARC2S, C1Q, FULL, HSV, STD.Y, TOUR, TR16)
• ELECTRICAL
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 14 units @ 120 V; 23 units @ 208 V; 26 units @ 230 V
  • Power and Current: 112 W, 0.97 A @ 120 V, 60 Hz
  • Power and Current: 117 W, 0.57 A @ 208 V, 60 Hz
  • Power and Current: 119 W, 0.51 A @ 230 V, 50 Hz
• CERTIFICATIONS / QUALIFICATIONS
  • CE, MET
  • IP Rating: IP65, temporary outdoor/wet use

Physical & Dimensions

• Diameter: 190mm
• Width: 236mm inc. bracket
• Depth: 334mm
• Weight: 7kg
• Colour: Black
• Housing Material: Aluminum die-cast
• Accessory Holder/Gel Frame Size: 191mm

What's in the Box

• COLORado 1-Quad Zoom
• Seetronic Powerkon IP65 power cord
• Gel frame holder (7.5 in/191 mm accessories)
• Gel frame

Manufacturer: Chauvet
