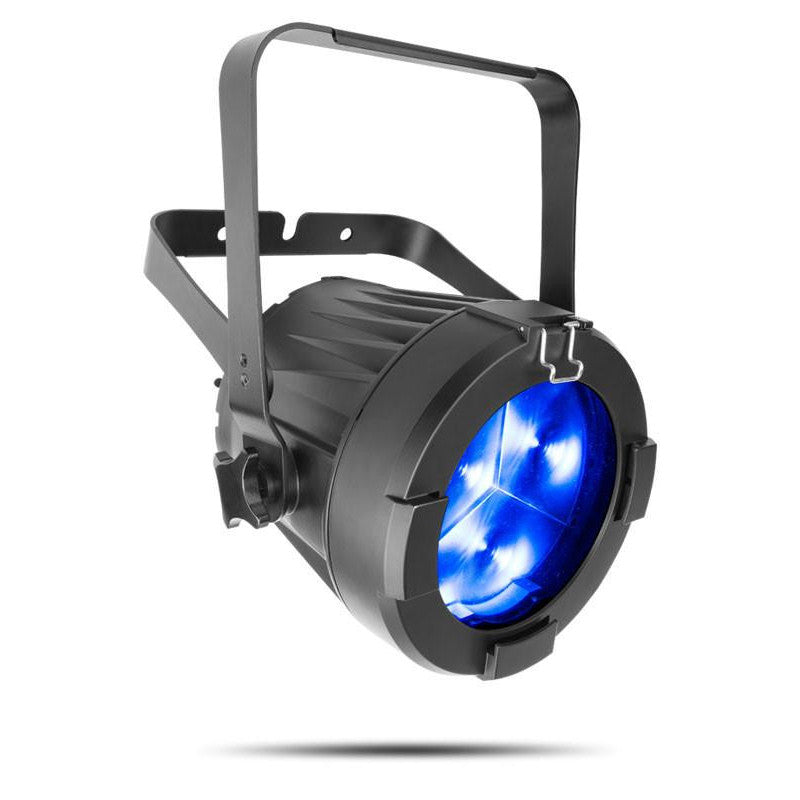

Chauvet COLORado 3 Solo

The Chauvet COLORado 3 Solo uses advanced zooming optics and three 60 W RGBW engines to project an intense and fully homogenised beam.

IP rated power and data connectors, and full convection cooling ensure a reliable and silent performance indoors and out, in a wide range of applications, from theatrical to outdoor festival productions.

FEATURES:

• Zooming RGBW LED wash for touring, rental, and production, indoors or out
• Completely homogenised wash with superior colour mixing and zoom
• 8' to 45' smooth and fast zoom
• All environment operation with IP rated power and DMX connections
• Colour temperature presets, from 3200 K to 10000 K
• Selectable, smooth dimming curves for programming versatility

SPECIFICATION:

Optical

• Light Source:  3 LEDs (quad-colour RGBW) 60 W, (4.4 A), 50,000 hours life expectancy
• Beam Angle:  4° to 34°
• Field Angle:  8° to 45°
• Zoom Angle:  8° to 45°
• Illuminance (4°):  15,280 lux @ 5 m
• Illuminance (34°):  313 lux @ 5 m
• Selectable PWM:  600 Hz, 1200 Hz, 2000 Hz, 2400 Hz, 6000 Hz, 25,000 Hz

Dynamic Effects

• Dimmer:  Electronic
• Shutter/Strobe:  Electronic
• Zoom:  Motorized
• Strobe Rate:  0 to 25 Hz
• Standalone Colour Mixing:  Yes
• Colour Temperature Presets:  Yes
• Dim Modes:  5
• Built-in Automated Programs:  Yes
• Customizable Programs:  Yes
• Recall Custom Programs:  Yes

Physical & Dimensions

• Dimensions:  250 x 314 x 413 mm
• Weight:  9 kg
• Exterior Colour:  Black
• Housing Material:  Magnesium
• Accessory Holder/Gel Frame Size:  191 mm

Connections

• Power Connection:  Edison (Local) plug to Seetronic Powerkon IP65
• Power Input:  Seetronic Powerkon IP65
• Power Output:  Seetronic Powerkon IP65
• Data Connectors:  3- and 5-pin XLR
• Cable Length (power):  1.5 m

Control

• Protocol(s):  DMX, RDM
• DMX Channels:  9, 12, or 17
• Modes/Personalities:  4 personalities (HSIC, SSP, TOUR, TR16, STD.Y)

Electrical

• Input Voltage:  100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking:  8 units @ 120 V; 14 units @ 208 V; 15 units @ 230 V
• Power and Current:  187 W, 1.580 A @ 120 V, 60 Hz
• Power and Current:  181 W, 0.909 A @ 208 V, 60 Hz
• Power and Current:  175 W, 0.869 A @ 230 V, 50 Hz

Certifications / Qualifications

• CE, MET
• IP Rating:  IP65, outdoor/wet, with pressure equalizing M12 GORE® valve

Manufacturer: Chauvet
