Chauvet COLORado Panel Q40

Description

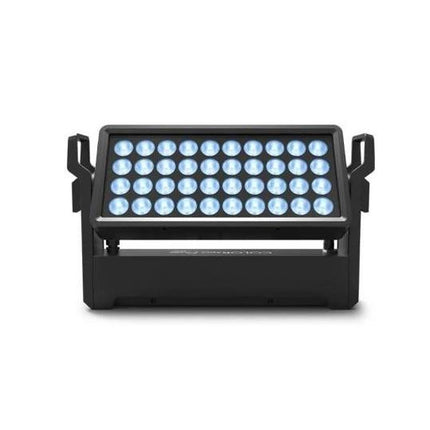

The Chauvet COLORado Panel Q40 is a powerful IP65-rated rectangular wash light that features 40 15 W RGBW LEDs capable of flawless edge-to-edge colour mixing.

This rugged indoor/outdoor unit can be manipulated through adjustable beam angles and includes a magnetic flood filter to produce a wider, but still even area wash.

Its outdoor rated power and data connectors allows for easy connections without propriety cabling. Control it as you see fit with W-DMX and RDM.

FEATURES:

  • Rugged RGBW LED wash for events where indoor/outdoor flexibility is needed
  • Superior edge-to-edge colour mixing
  • At home in any weather conditions with IP rated power and DMX connections
  • Included magnetic flood filter for wide area wash
  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
  • WDMX & RDM (Remote Device Management) for added flexibility
  • Selectable, smooth dimming curves for eliminate flicker and choppiness in fades
  • Easy to read OLED display with password protection and touchscreen interface
  • Advanced optics provide exceptional colour mixing and high efficiency
  • Included omega bracket for quick and easy truss/pipe mounting

SPECIFICATION:

Optical

  • Light Source: 40 LEDs (quad-colour RGBW) 15 W, (970 mA), 50,000 hours life expectancy
  • Colour Temperature (range): 2800 to 10000 K
  • Installed Optics: 15°
  • Beam Angle (w/o filter): 15°
  • Beam Angle (w/filter): 24°
  • Field Angle (w/o filter): 28°
  • Field Angle (w/ filter): 48°
  • Lumens: 16,589
  • Lumens (w/filter): 14,294
  • Illuminance (w/o filter): 9,480 lux @ 5 m
  • Illuminance (w/ filter): 3,045 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

Dynamic Effects

  • Tilt Ranges: 0° to 150°
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 27 Hz
  • Standalone Colour Mixing: Yes
  • Colour Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

Construction / Physical

  • Dimensions: 20.27 x 7.71 x 11.96 in (515 x 196 x 304 mm)
  • Weight: 28.2 lb (12.8 kg)
  • Exterior Colour: Black
  • Housing Material: Aluminium alloy, Aluminium die-cast
  • Filter Size: 16.75 x 8 in (425.45 x 203.2 mm)

Connections

  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 5-pin IP65 XLR
  • Cable Length (power): 5 ft (1.5 m)

Control

  • Control Protocol: DMX, W-DMX, RDM
  • DMX Channels: 4, 6, 10, 16 or 22
  • Modes/Personalities: 5 personalities (4ch, 6ch, 10ch, 16ch, 22ch)

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 2 units @ 120 V; 4 units @ 208 V; 5 units @ 230 V
  • Power and Current: 570 W, 4.69 A @ 120 V, 60 Hz
  • Power and Current: 560 W, 2.71 A @ 208 V, 60 Hz
  • Power and Current: 560 W, 2.44 A @ 230 V, 50 Hz

Certifications / Qualifications

  • CE, MET
  • IP Rating: IP65, outdoor/wet, with pressure equalising M12 GORE valve
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

    Manufacturer: Chauvet
