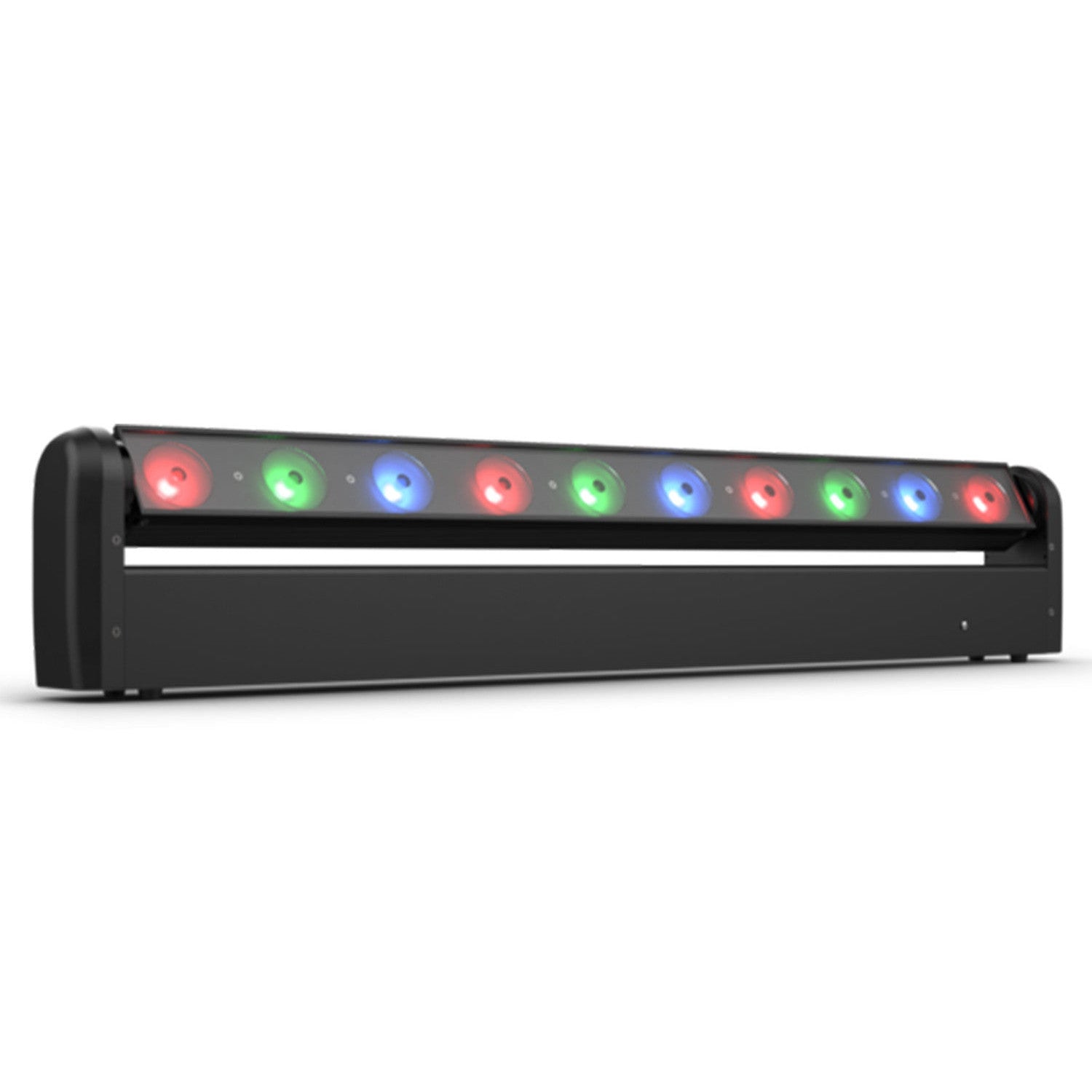

ChauvetCOLORband PIX M ILS Moving Batten

Add the power of a full-size linear wash light with 10 tri-color (RGB) LEDs, sweeping movement and a staggering array of control options and you get COLORBand Pix M ILS, a fixture that will light up any event and ignite it with energy! This moving strip light creates dynamic sweeping effects and functions as a pixel mapping effect, blinder or wall-washer. You can also just angle the light where it’s needed using the built-in motors. But the true excitement comes when you create eye-catching animations and video effects with individual LED control. Controlling this powerhouse couldn’t be easier or more convenient. It has a built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes, ILS compatibility for use in the ILS ecosystem, and D-Fi USB compatibility for wireless master/slave or DMX control. Even DMX connection options are flexible with onboard 3 and 5-pin DMX connectors.

FEATURES:

• Achieve flicker-free video operation with high-frequency LED dimming
• Eliminate multicolour shadows with high-power, tri-colour LEDs
• Flexible control options with onboard 3- and 5-pin XLR DMX connectors
• Access dramatic, pre-built automated programs with or without DMX
• Moving LED strip light creates dynamic sweeping effects and functions as a pixel mapping effect, blinder or wall-washer
• Achieve a wide variety of programming styles with multiple DMX personalities

SPECIFICATION:

General

• DMX Channels: 5, 6, 8, 9, 10, 11, 14, 20, 38 or 42
• DMX Connectors: 3- and 5-pin XLR
• Tilt: 270°
• Light Source: 12 LEDs (tri-colour RGB) 3 W (1,050 mA), 50,000 hours life expectancy
• Beam Angle: 20°
• Field Angle: 34°
• Illuminance: 2,325 lux @ 2 m
• Power Linking: 15 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 117 W, 0.5 A @ 230 V, 50 Hz

Physical & Dimensions

• Height: 188mm
• Width: 1040mm
• Depth: 67mm
• Weight: 4.7kg

Manufacturer: Chauvet
