Chauvet COLORdash Batten Quad 12

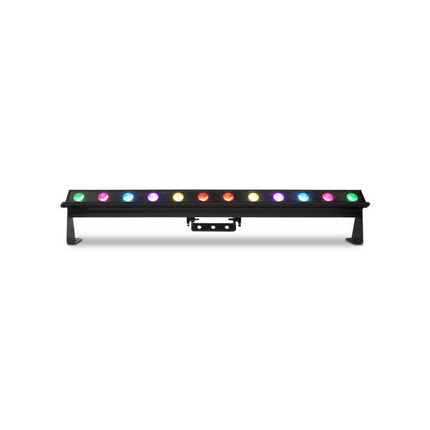

The Chauvet COLORdash Batten-Quad 12 is a linear wash fixture with 12 individually controllable quad-coloured RGBA LEDs that produce any variation of white as well as richly saturated colours due to the inclusion of amber LEDs.

It pixel maps beautifully when used in multiples because it maintains an even pixel pitch. It can be stacked in an array using the optional CBB-6 bracket or lined up end-to-end. Setup is easy with a hanging bracket, floor trunnions, Neutrik powerCON power in and out, and 3- and 5-pin DMX connections.

FEATURES:

• Auto and custom programs recalled via DMX or Master/Slave
• Metal construction for added durability
• Individual pixel control
• Silent flicker-free operation
• Mount multiple units to maintain pixel pitch

SPECIFICATION:

Optical

• Light Source:  12 LEDs (quad-colour RGBA) 7 W, (500 mA), 50,000 hours life expectancy
• Colour Temperature (range):  2,800 to 10,000 K
• Installed Optics:  20°
• Beam Angle:  22°
• Field Angle:  31°
• Illuminance:  539 lux @ 5 m
• PWM Frequency:  600 Hz

Dynamic Effects

• Dimmer:  Electronic
• Shutter/Strobe:  Electronic
• Strobe Rate:  0 to 20 Hz
• Standalone Colour Mixing:  Yes
• Colour Temperature Pre-sets:  Yes
• Dim Modes:  4
• Built-in Automated Programs:  Yes

Physical & Dimensions

• Dimensions:  1041 x 82 x 164 mm
• Weight:  4.8 kg
• Exterior Colour:  Black

Connections

• Power Connection:  Edison plug to Neutrik powerCON
• Power Input:  Neutrik powerCONPower Output:  Neutrik powerCON
• Data Connectors:  3- and 5-pin XLR
• Cable Length (signal):  1.5 m

Control

• Control Protocol:  DMX
• DMX Channels:  4, 6, 10, 48 or 52
• Modes/Personalities:  5 personalities (4CH, 6CH, 10CH, 48CH, 52CH)

Electrical

• Input Voltage:  100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking:  9 units @ 120 V; 16 units @ 208 V; 17 units @ 230 V
• Power and Current:  175 W, 1.45 A @ 120 V, 60 Hz
• Power and Current:  168 W, 0.81 A @ 208 V, 60 Hz
• Power and Current:  175 W, 0.76 A @ 230 V, 50 Hz

Certifications / Qualifications

• CE, METIP Rating:  IP20, dry location

Manufacturer: Chauvet
