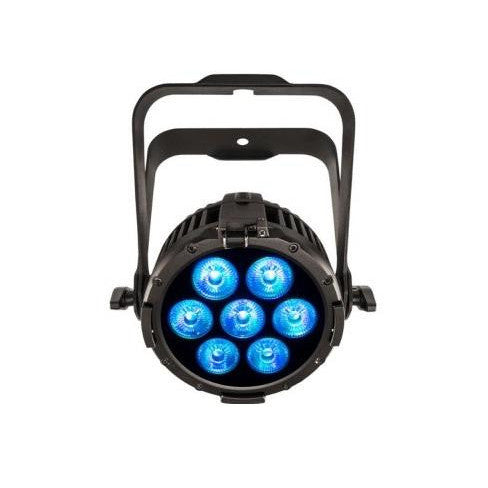

Chauvet COLORdash Par H7IP

The  Chauvet COLORdash Par H7 IP is an ultra compact, all-weather RGBWAUV LED wash at home in any environment.

It delivers a beautifully mixed, soft field of deeply saturated colours. User-friendly OLED full text display. IP rated connections for power and DMX make setup a breeze.

FEATURES:

• Rugged RGBWA-UV LED wash for events where indoor/outdoor flexibility is needed
• At home in any weather conditions with IP rated power and DMX connections
• Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
• RDM (Remote Device Management) for added flexibility
• Selectable, smooth dimming curves for eliminate flicker and choppiness in fades
• Easy to read OLED display with password protection and touchscreen interface
• Advanced optics provide exceptional colour mixing and high efficiency
• Double-bracketed yoke doubles as floor stand

SPECIFICATION:

General

• Optical

  • Light Source: 7 LEDs (hex-color RGBAW+UV) 10 W, (650 mA), 50,000 hours life expectancy
  • Colour Temperature (range): 2800 to 10,000 K
  • Beam Angle: 21°
  • Field Angle: 47°
  • Illuminance (total): 674 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
• Dynamic Effects
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Strobe Rate: 0 to 30 Hz
  • Standalone Colour Mixing: Yes
  • Colour Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes
• Connections
  • Power Connection: Edison(Local plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)
• Control
  • Control Protocol: DMX, RDM
  • DMX Channels: 6, 8 or 13
  • Modes/Personalities: 3 personalities (6, 8, 13)
• Electrical
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 26 units @ 120 V; 46 units @ 208 V; 50 units @ 230 V
  • Power and Current: 63 W, 0.52 A @ 120 V, 60 Hz
  • Power and Current: 65 W, 0.31 A @ 208 V, 60 Hz
  • Power and Current: 66 W, 0.28 A @ 230 V, 50 Hz
• Certifications/Qualifications
  • CE, MET
  • IP Rating: IP65, temporary outdoor/wet use
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
• Other
  • Exterior Colour: Black
  • Housing Material: Aluminium die-cast
  • Accessory Holder/Gel Frame Size: 6.5 in (165 mm)

Physical & Dimensions

• Height: 280mm
• Width: 240mm
• Depth: 154mm
• Weight: 3.6kg

Manufacturer: Chauvet
