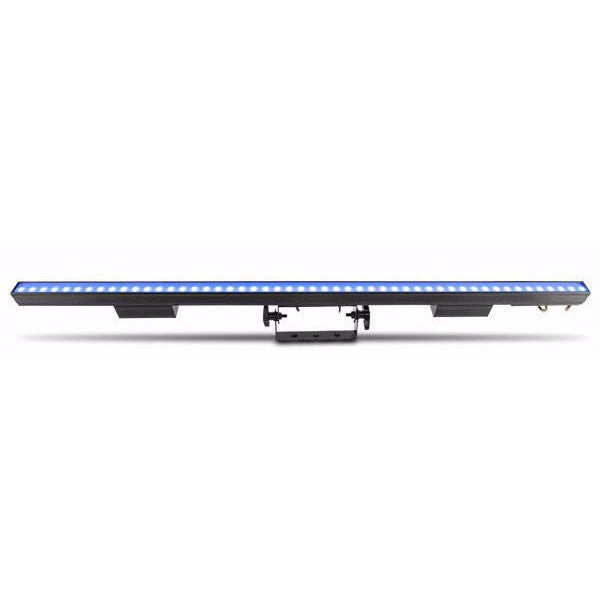

Chauvet EPIX Strip Tour Pixel Mapping Bar

The Chauvet Epix Strip Tour is a pixel-mapping 1-meter LED strip, featuring 50 LEDs in a row and a 125-degree viewing angle.

Power and control it through the Epix Drive 900 on Art-Net, Kling-Net, or sACN (streaming ACN). For added versatility and more creative options, a dome accessory is available to widen the viewing angle to up to 180 degrees.

FEATURES:

• Chauvet PRO Epix Strip Tour 50x1 LED Bar
• Pixel mapping for showing video or motion graphics
• Includes black stealth filter (installed) for high contrast
• White frosted filter (included) for high output
• Versatile control options support touring, rental, and install
• EPIX Drive 900 is required for operation

SPECIFICATION:

Optical

• Light Source:  50 LEDs (tri-colour RGB) SMD 5050, 50,000 hours life expectancy
• Viewing Angle:  125°
• Viewing Angle (with optional dome accessory):  180°
• Illuminance (white frost filter installed):  1,094 NITS
• Illuminance (with optional dome accessory):  701 NITS
• Illuminance (black stealth filter installed):  267 NITS
• Pixels:  50 x 1Pixel Pitch:  20 mm
• Refresh Rate:  4,700 Hz

Connections

• Data Connectors:  4-pin XLR
• Physical Linking:  18 inline Epix Strip Tour
• Minimum required device linking cable size:  4 conductor (2 x 18 AWG, 2 x 20 AWG)
• Total max. cable length (shielded cables) between Epix Drive 900 and last Epix Tour fixture:  64 m
• Max. cable length (shielded cables) between Epix Drive 900 and first Epix Tour fixture:  20 m
• Max. cable length (shielded cables) between Epix Tour fixtures:  18 m
• Total max. cable length (unshielded cables) between Epix Drive 900 and last Epix Tour fixture:  91 m
• Max. cable length (unshielded cables) between Epix Drive 900 and first Epix Tour fixture:  45 m
• Max. cable length (unshielded cables) between Epix Tour fixtures:  30 m

Control

• Control Protocol:  Art-Net, Kling-Net, sACN
• Control Channels:  150

Electrical

• Power and Current:  17 W, 0.14 A @ 120 V, 60 Hz
• Power and Current:  17 W, 0.08 A @ 208 V, 60 Hz
• Power and Current:  17 W, 0.07 A @ 230 V, 50 Hz

Cable

• 4PXLREXT16IN
• 4PXLREXT5FT
• 4PXLREXT50FT

Physical & Dimensions

• Dimensions:  1000 x 120 x 30 mm
• Dimensions (with optional dome accessory):  1000 x 135 x 30 mm
• Weight:  1.56 kg
• Weight (with optional dome accessory):  1.59 kg
• Exterior Colour:  Black
• Housing Material:  Aluminium

Certifications / Qualifications

• CE, METIP Rating:  IP20, dry location
• Temperature (Ambient):  20 °C to 45 °C

Manufacturer: Chauvet
