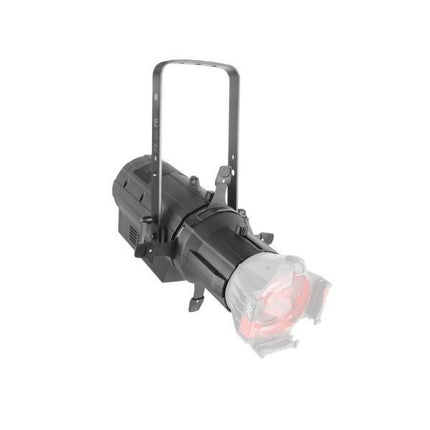

Chauvet Ovation E-910FC IP Body Only

Description

The Chauvet Ovation E-910FC IP body only (no lens tube) takes the high-performance, full RGBA-Lime colour-mixing marvel of the Ovation E-910FC outdoors.

Chauvet's standard shutter assembly and lenses lend familiarity and ease of use to this IP65 ERS style fixture that offers Colour Temperature presets of 2800 to 6500 K that match the output of a tungsten source to perfection.

Control options include full bit dimming (per colour and master), selectable PWM, RDM and onboard dimming curves selection.

Also accessible is our virtual colour wheel which matches popular colour gels.

FEATURES:

  • Full Colour LED (RGBAL) ERS-style lighting fixture for theatre, film and production
  • Fully IP65 rated for seasonal use indoors or out
  • Use of our standard Ovation beam shaping shutters and lenses lends familiarity and ease of use to the fixture
  • Virtual Colour wheel with colour matched to popular gel colours
  • Colour Temperature Presets from 2800 K to 6500 K with high CRI and CQS
  • Ultra smooth 16-bit dimming, and 8-bit dimming curves to complement any lighting scheme
  • Flat, even field of light for superior gobo projection
  • RDM (Remote Device Management) for added flexibility
  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

SPECIFICATION:

OPTICAL

  • Light Source: 91 LEDs (18 red, 18 green, 19 blue, 18 amber, 18 lime green) 3 W, (722 mA), 6031 K, 50,000 hours life expectancy
  • Colour Temperature (range): 2800 to 6500 K
  • Colour Temperature (at full): 6031 K
  • CRI (3200 K): 82
  • Beam Angle (w/14° lens): 11°
  • Beam Angle (w/19° lens): 19°
  • Beam Angle (w/26° lens): 24°
  • Beam Angle (w/36° lens): 28°
  • Beam Angle (w/50° lens): 41°
  • Beam Angle (w/15°–30° lens)(Narrow): 13°
  • Beam Angle (w/15°–30° lens)(Wide): 24°
  • Beam Angle (w/25°–50° lens)(Narrow): 23°
  • Beam Angle (w/25°–50° lens)(Wide): 36°
  • Field Angle (w/14° lens): 14°
  • Field Angle (w/19° lens):19°
  • Field Angle (w/26° lens): 26°
  • Field Angle (w/36° lens): 34°
  • Field Angle (w/50° lens): 51°
  • Field Angle (w/15°–30° lens)(Narrow): 15°
  • Field Angle (w/15°–30° lens)(Wide): 29°
  • Field Angle (w/25°–50° lens)(Narrow): 26°
  • Field Angle (w/25°–50° lens)(Wide): 50°
  • Lumens (w/19° lens): 3,236
  • Lumens (w/26° lens): 4,316
  • Lumens (w/36° lens): 3,918
  • Lumens (w/50° lens): 3,813
  • Illuminance (w/14° lens): 4,420 lux @ 5 m
  • Illuminance (w/19° lens): 2,530 lux @ 5 m
  • Illuminance (w/26° lens): 1,720 lux @ 5 m
  • Illuminance (w/36° lens): 1,020 lux @ 5 m
  • Illuminance (w/50° lens): 457 lux @ 5 m
  • Illuminance (w/15°–30° lens)(Narrow): 4,260 lux @ 5 m
  • Illuminance (w/15°–30° lens)(Wide): 1,620 lux @ 5 m
  • Illuminance (w/25°–50° lens)(Narrow): 1,790 lux @ 5 m
  • Illuminance (w/25°–50° lens)(Wide): 825 lux @ 5 m
  • Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25000Hz

DYNAMIC EFFECTS

  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Focus: Manual
  • Strobe Rate: 0 to 28 Hz
  • Standalone Colour Mixing: Yes
  • Colour Temperature Presets: Yes
  • Dim Modes: 4
  • Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

  • Dimensions (fixture only): 26 x 11.33 x 10.4 in (660 x 287.9 x 264.6 mm)
  • Dimensions (w/14° lens extended): 35.2 x 11.33 x 10.4 in (894.2 x 287.9 x 264.6 mm)
  • Dimensions (w/26° lens extended): 35.2 x 11.33 x 10.4 in (894.2 x 287.9 x 264.6 mm)
  • Dimensions (w/15°–30° lens): 38.6 x 11.33 x 10.4 in (980.6 x 287.9 x 264.6 mm)
  • Dimensions (w/25°–50° lens): 31.3 x 11.33 x 10.4 in (795.1 x 287.9 x 264.6 mm)
  • Weight (fixture only): 23.2 lb (10.6 kg)
  • Weight (w/14° lens): 28.6 lb (12.9 kg)
  • Weight (w/26° lens): 27.4 lb (12.4 kg)
  • Weight (w/15°–30° lens): 52.6 lb (23.8 kg)
  • Weight (w/25°–50° lens): 50.2lb ( 22.7 kg)
  • Exterior Colour: Black
  • Gobo Size (Optional): “A”: 94 mm (outside), 79 mm (image), 2.5 mm (max. thickness)
  • Gobo Size (Optional): “B”: 94 mm (outside), 69 mm (image), 2.5 mm (max. thickness)
  • Accessory Holder/Gel Frame Size (14° lens): 7.5 in (191 mm)
  • Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens): 6.25 in (159 mm)
  • Accessory Holder/Gel Frame Size (15°–30° lens): 7.5 in (191 mm)
  • Accessory Holder/Gel Frame Size (25°–50° lens): 7.5 in (191 mm)

CONNECTIONS

  • Power Connection: Edison (local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Data Connectors: 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: DMX, RDM
  • DMX Channels: 1, 4, 6, 8, 11, 13, 14, 16 or HSV
  • Modes/Personalities: 9 personalities (1, 4, 6, 8, 11, 13, 14, 16 or HSV)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 7 units @ 120 V; 11 units @ 208 V; 12 units @ 230 V
  • Power and Current: 225 W, 1.88 A @ 120 V, 60 Hz
  • Power and Current: 236 W, 1.14 A @ 208 V, 60 Hz
  • Power and Current: 241 W, 1.05 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET
  • IP Rating: IP65, outdoor/wet, with pressure equalising M12 GORE valve
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

  • Ovation E-910FC IP
  • Seetronic Powerkon IP65

REQUIRED ACCESSORIES

  • Lens Tube: 19°, 26°, 36°, 50°

OPTIONAL ACCESSORIES

  • Professional Clamps: CTC-50HC, CTC-50HCN
  • Neutrik powerCON cables
  • 3-pin or 5-pin IP Rated DMX Cables
  • Colour Blending Filters: DF60X1D, DF20D
  • RDM2go
  • Ovation Zoom Lenses: OEZOOM1530, OEZOOM2550
  • Ovation Glass Gobo Holder
  • Ovation Metal Gobo Holder
  • Ovation Iris

    Manufacturer: Chauvet

    Related Collections:

    Product form

    SKU: CHV-OVATION-E-910FC-IP

    In stock

    £1,511.00 Incl. VAT
