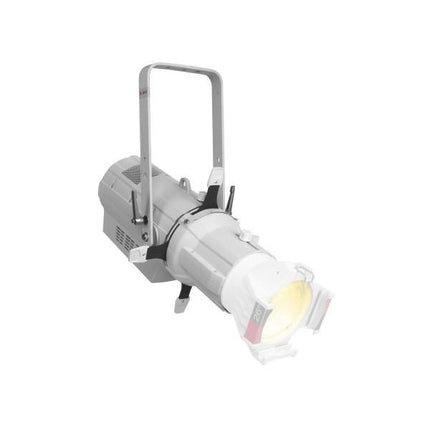

Chauvet Ovation E-910FC - White

Description

The Chauvet Ovation E-910FC body only in white (no lens tube) is a high-performance ERS-style fixture with full RGBA-Lime colour mixing and colour temperature presets of 2800 to 6500 K that match the output of a tungsten source to perfection.

Control options include full 16-bit dimming (per colour and master), selectable PWM, RDM and onboard dimming curve selection.

Also accessible is our Virtual Colour Wheel which matches popular gel colours.

FEATURES:

  • Chauvet Pro Ovation E910FC LED Style Luminaire
  • This item is the body only - does not include 26' lens
  • Full Colour LED (RGBAL) ERS-style lighting fixture for theatre, film and production
  • Ultra smooth 16-bit dimming of master dimmer and individual colours
  • Flat, even field of light with superior colour mixing
  • Virtual Colour wheel with colour matched to popular gel colours
  • Colour Temperature Presets from 2800 K to 6500 K with high CRI & CQS
  • RDM (Remote Device Management) for added flexibility
  • Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
  • Virtually silent operation for use in studio and theatre applications
  • Works perfectly with industry standard lens tubes and accessories
  • White finish

SPECIFICATION:

Optical

  • Light Source:  91 LEDs (18 red, 18 green, 19 blue, 18 amber, 18 lime green) 3 W, (1.4A), 5850 K, 50,000 hours life expectancy
  • Colour Temperature (at full):  5850K
  • Beam Angle (w/19° lens):  19°
  • Beam Angle (w/26° lens):  24°
  • Beam Angle (w/36° lens):  28°
  • Beam Angle (w/50° lens):  41°
  • Beam Angle (w/15°–30° lens)(Narrow):  13°
  • Beam Angle (w/15°–30° lens)(Wide):  24°
  • Beam Angle (w/25°–50° lens)(Narrow):  23°
  • Beam Angle (w/25°–50° lens)(Wide):  36°
  • Field Angle (w/19° lens): 19°
  • Field Angle (w/26° lens):  26°
  • Field Angle (w/36° lens):  34°
  • Field Angle (w/50° lens):  51°
  • Field Angle (w/15°–30° lens)(Narrow):  15°
  • Field Angle (w/15°–30° lens)(Wide):  29°
  • Field Angle (w/25°–50° lens)(Narrow):  26°
  • Field Angle (w/25°–50° lens)(Wide):  50°
  • Dimming Modes:  9
  • Lumens (w/19° lens):  3,236
  • Lumens (w/26° lens):  4,316
  • Lumens (w/36° lens):  3,918
  • Lumens (w/50° lens):  3,813
  • Illuminance (w/19° lens):  3,017 lux @ 5 m
  • Illuminance (w/26° lens):  1,894 lux @ 5 m
  • Illuminance (w/36° lens):  1,137 lux @ 5 m
  • Illuminance (w/50° lens):  513 lux @ 5 m
  • Illuminance (w/15°–30° lens)(Narrow):  3,784 lux @ 5 m
  • Illuminance (w/15°–30° lens)(Wide):  1,223 lux @ 5 m
  • Illuminance (w/25°–50° lens)(Narrow):  1,657 lux @ 5 m
  • Illuminance (w/25°–50° lens)(Wide):  647 lux @ 5 m
  • Selectable PWM:  600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 25,000 Hz

Dynamic Effects

  • Dimmer:  Electronic
  • Shutter/Strobe:  Electronic
  • Focus:  Manual
  • Strobe Rate:  0 to 28 Hz
  • Standalone Colour Mixing:  Yes
  • Colour Temperature Pre-sets:  Yes
  • Dim Modes:  4
  • Built-in Automated Programs:  Yes

Connections

  • Power Connection:  Edison (Local) plug to Neutrik powerCON
  • Power Connection:  Edison (Local) plug to Neutrik powerCON
  • Power Output:  Neutrik powerCON
  • Data Connectors:  5-pin XLR
  • Cable Length (power):  1.5 m

Control

  • Protocol(s):  DMX, RDM
  • DMX Channels:  3, 5, 7, 10, 12, 13 or 15
  • Modes/Personalities:  7 personalities (3, 5, 7, 10, 12, 13, 15)

Electrical

  • Input Voltage:  100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking:  6 units @ 120 V; 11units @ 208 V; 12 units @ 230 V
  • Power and Current:  240 W, 2.006 A @ 120 V, 60 Hz
  • Power and Current:  234 W, 1.160 A @ 208 V, 60 Hz
  • Power and Current:  234 W, 1.074 A @ 230 V, 50 Hz

Physical & Dimensions

  • Dimensions (fixture only):  495 x 285 x 487 mm
  • Dimensions (w/26° lens extended):  658 x 285 x 487 mm
  • Dimensions (w/15°–30° lens):  835 x 371 x 371 mm
  • Dimensions (w/25°–50° lens):  690 x 371 x 371 mm
  • Weight (fixture only):  7.1 kg
  • Weight (w/26° lens):  9 kg
  • Weight (w/15°–30° lens):  13.3 kg
  • Weight (w/25°–50° lens):  12.2 kg
  • Exterior Colour:  White
  • Gobo Size (Optional):  “A”:  94 mm (outside), 79 mm (image), 2.5 mm (max. thickness)
  • Gobo Size (Optional):  “B”:  94 mm (outside), 69 mm (image), 2.5 mm (max. thickness)
  • Accessory Holder/Gel Frame Size (19°, 26°, 36°, and 50° lens):  159 mm
  • Accessory Holder/Gel Frame Size (15°–30° lens):  191 mm
  • Accessory Holder/Gel Frame Size (25°–50° lens):  191 mm

Certifications / Qualifications

  • CE, METIP Rating: IP20, dry location

    Manufacturer: Chauvet
