Chauvet Rogue R1 BeamWash

Description

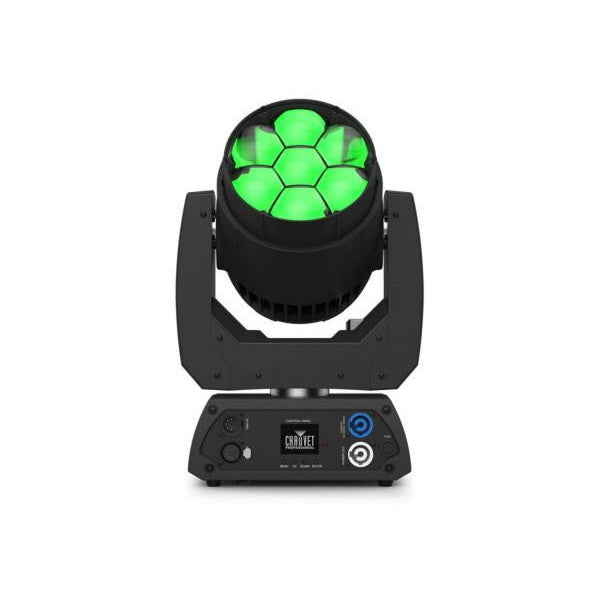

The Chauvet Rogue R1 Beam Wash is a versatile and compact moving head that projects a punchy beam and wash.

Weighing just under 12 lbs., the unit features a custom-designed optical system with seven 40W RGBW LEDs and an expansive zoom range of 5° to 58.2° that allows for it to project tight, solid beam effects at its most narrow and transforms the light source into a nice even wash with excellent colour blending as it expands.

The unit’s small size also allows for a superfast and smooth pan and tilt movement. It’s also RDM enabled for remote addressing and is equipped with a selectable PWM setting to maintain flicker free operation on camera.

FEATURES:

  • 7 RGBW LEDs, 40 W each
  • 5-pin DMX input/output connections
  • Unique lens design for excellent colour blending and tight beam effects
  • Fast, smooth pan and tilt movement
  • 6 distinct dimming modes for advanced control
  • Omega mounting bracket fits all Rogue and Maverick fixtures
  • Easy to read OLED display with simple, effective menu options
  • Simple and complex DMX channel profiles for programming versatility

SPECIFICATION:

OPTICAL

  • Light Source: 7 LEDs (quad-colour RGBW) 40 W, (980 mA), 50,000 hours life expectancy
  • Colour Temperature (range): 2800 to 10000 K
  • Beam Angle: 4° to 37.8°
  • Field Angle: 5° to 58.2°
  • Zoom Angle: 5° to 58.2°
  • Lumens – Source: 5,400
  • Lumens – Output: 3,941
  • Illuminance (5°): 13,300 lux @ 5 m
  • Illuminance (55°): 378 lux @ 5 m

DYNAMIC EFFECTS

  • Pan and Tilt: 540°/230°
  • Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 230° tilt
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorised
  • Strobe Rate: 0 to 20 Hz
  • Standalone Colour Mixing: Yes
  • Colour Temperature Presets: Yes
  • Dim Curves: 4
  • Built-in Automated Programs: Yes
  • Customizable Programs: No
  • Recall Custom Programs: No

CONSTRUCTION / PHYSICAL

  • Dimensions: 8.42 x 6.29 x 14.52 in (214 x 160 x 369 mm)
  • Weight: 11.8 lb (5.35 kg)
  • Exterior Colour: Black
  • Housing Material: High-impact flame-retardant polymer

CONNECTIONS

  • Power Connection: Edison (Local) plug to Neutrik® powerCON®
  • Power Input: Neutrik® powerCON®
  • Power Output: Neutrik® powerCON®
  • Data Connectors: 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: DMX
  • DMX Channels: 14, 15, 19 or 21
  • Modes/Personalities: 4 personalities (14, 15, 19, 21)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 8 units @ 120 V; 14 units @ 208 V; 16 units @ 230 V
  • Power and Current: 179 W, 1.614 A @ 120 V, 60 Hz
  • Power and Current: 175 W, 0.93 A @ 208 V, 60 Hz
  • Power and Current: 157 W, 0.81 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET
  • IP Rating: IP20, dry location

    Manufacturer: Chauvet
