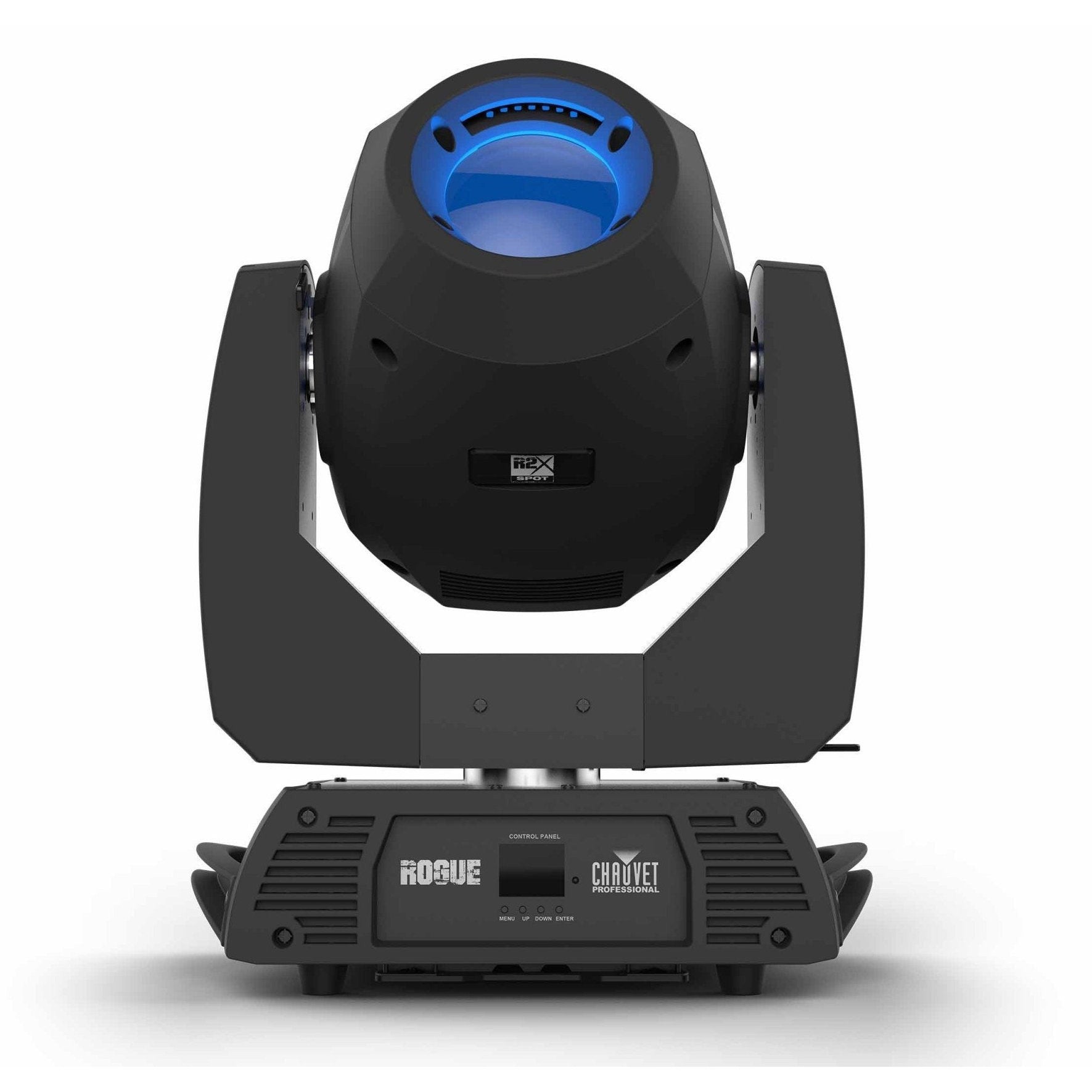

Chauvet Rogue R2X Spot

Description

The Chauvet Rogue R2X Spot offers incredible value with a stunning range of colors and effects, all supported by professional quality engineering.

This Spot builds on the features of the R1X Spot by adding gobo-morphing technology and two variable scrolling color wheels for an unlimited number of shape-changing and split-color effects.

Uses a powerful 300 W LED light source in a 16.5° beam angle for a brilliant light that creates an unparalleled audience experience.

FEATURES:

  • Intense 300 W LED light engine for punchy, bold beams
  • Perfect gobo morphing between gobo wheels
  • Two colour wheels with 7 colours, split colour ability, and continuous variable speed scrolling
  • Two gobo wheels: one fixed slot scrolling wheel and one rotating, interchangeable, scrolling wheel
  • Iris, 3-facet prism, and frost for beam control
  • Beautiful 16-bit LED dimming for ultimate fade control
  • Neutrik® powerCON® power input/output connections for power linking
  • 3- and 5-pin DMX input/output connections
  • RDM enabled for remote addressing and trouble shooting
  • Selectable LED maximum output to match legacy Rogue R2 Spots
  • Selectable PWM settings to maintain flicker-free operation on camera
  • Simple and complex DMX channel profiles for programming versatility

SPECIFICATION:

Optical

  • Light Source: 1 LEDs (CW) 300 W, (8.7 amps), 7,836 K, 50,000 hours life expectancy
  • CRI: 72
  • Beam Angle: 16.5°
  • Field Angle: 16.5°
  • Lumens – Source: 23,000
  • Lumens – Output: 11,000
  • Illuminance (total): 9,187 lux @ 5 m
  • Selectable PWM: 600 Hz, 1,200 Hz, 6,000 Hz, 15,000 Hz

Dynamic Effects

  • Pan and Tilt: 540°/250°
  • Pan and Tilt Ranges: 540°, 360°, 180° pan/250°, 180°, 90° tilt
  • Colours (1): 7 + white, split colours, continuous scroll at variable speeds
  • Colours (2): 7 + white, split colours, continuous scroll at variable speeds
  • Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
  • Gobos (2): 8 + open (8 metal), continuous scroll at variable speeds
  • Gobo Size: Gobo Wheel 1 (rotating): Positions 1, 2, 3, 4, and 7 (metal); size: 28.8 mm (outside), 23.8 mm (image), 0.5 mm (max. thickness)
  • Gobo Size: Gobo Wheel 1 (rotating): Positions 5 and 6 (glass); size: 27 mm (outside), 24 mm (image), 3 mm (max. thickness)
  • Framing Shutters: No
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Focus: Motorized
  • Frost: Motorized
  • Iris: Motorized
  • Prism: 3 Facets, motorized, rotating
  • Strobe Rate: 0 to 22 Hz
  • Standalone Colour Mixing: No
  • Colour Temperature Presets: No
  • Move-in-Black: Yes

Connections

  • Power Connection: Edison (local) plug to Neutrik® powerCON®
  • Power Input: Neutrik® powerCON®
  • Power Output: Neutrik® powerCON®
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

Control

  • Control Protocol: DMX, RDM
  • DMX Channels: 18 or 21
  • Modes/Personalities: 2 personalities (18, 21)

Electrical

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 3 units @ 120 V; 6 units @ 208 V; 7 units @ 230 V
  • Power and Current: 517 W, 4.31 A @ 120 V, 60 Hz
  • Power and Current: 427 W, 2.05 A @ 208 V, 60 Hz
  • Power and Current: 437 W, 1.9 A @ 230 V, 50 HzBreaker Size: F 7A, 250 V

Physical & Dimensions

  • Height: 489mm
  • Width:  343mm
  • Depth: 409mm
  • Weight: 21.7kg

    Manufacturer: Chauvet
