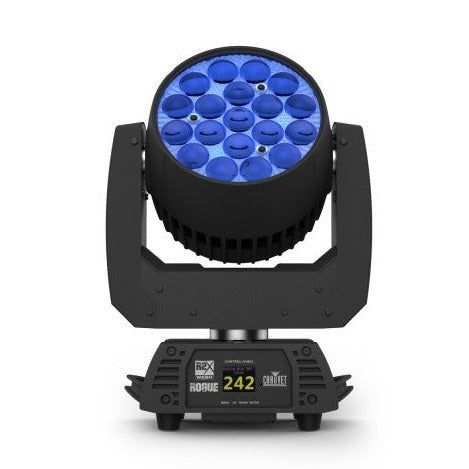

Chauvet Rogue R2X Wash

Description

The Chauvet Rogue R2X Wash is a valuable addition to rental and production inventories. Durable and dependable, this moving wash workhorse produces a bright, powerful light and offers five zones of LED control to pixel map its 19 (25 W) RGBW quad-LEDs.

A standout zoom range of 12° to 49° gives it the spread to cover even the largest areas. Smooth colour mixing, simple and complex DMX channel profiles and powerCON in and out are just some of the other features that make this fixture a standout performer in any setting.

FEATURES:

  • Fully featured RGBW LED yoke wash fixture with LED zone control and zoom
  • 16-bit dimming of master dimmer as well as individual colours for smooth control of fades
  • 19 RGBW LEDs, 25 W each
  • 3- and 5-pin DMX input/output connections
  • 5 zones of LED control for pixel mapping control
  • Unique lens design for excellent colour blending
  • Fast, smooth pan and tilt movement
  • RDM enabled for remote addressing and trouble shooting
  • Selectable LED maximum output to match legacy Rogue R2 Washes
  • 6 distinct dimming modes for advanced control
  • Omega mounting bracket, fits all Rogue and Maverick fixtures
  • Easy to read OLED display with simple, effective menu options
  • Simple and complex DMX channel profiles for programming versatility

SPECIFICATION:

OPTICAL

  • Light Source: 19 LEDs (quad-colour RGBW) 25 W, (1.5 A), 50,000 hours life expectancy
  • Colour Temperature (range): 2800 to 10000 K
  • Beam Angle: 8° to 30°
  • Field Angle: 12° to 49°
  • Zoom Angle: 12° to 49°
  • Lumens – Source: 10,300
  • Lumens – Output: 7,300
  • Illuminance (12°): 10,000 lux @ 5 m
  • Illuminance (49°): 840 lux @ 5 m
  • PWM Frequency: 1,200 Hz

DYNAMIC EFFECTS

  • Pan and Tilt: 540°/230°
  • Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 230° tilt
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Strobe Rate: 0 to 20 Hz
  • Standalone Colour Mixing: Yes
  • Colour Temperature Presets: Yes
  • Dim Curves: 4
  • Built-in Automated Programs: Yes
  • Customizable Programs: No
  • Recall Custom Programs: No

CONSTRUCTION / PHYSICAL

  • Dimensions: 8.58 x 12.05 x 15.67 in (218 x 306 x 398 mm)
  • Weight: 22.8 lb (10.3 kg)
  • Exterior colour: Black
  • Housing Material: High-impact flame-retardant polymer

CONNECTIONS

  • Power Connection: Edison (Local) plug to Neutrik® powerCON®
  • Power Input: Neutrik® powerCON®
  • Power Output: Neutrik® powerCON®
  • Data Connectors: 3- and 5-pin XLR
  • Cable Length (power): 5 ft (1.5 m)

CONTROL

  • Control Protocol: DMX, RDM
  • DMX Channels: 15, 17, 22, 33, 54, or 56
  • Modes/Personalities: 8 personalities (15CH, 17CH, 22CH, 33CH, 33CH MS, 54CH, 54CH MS or 56CH)

ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 4 units @ 120 V; 8 units @ 208 V; 9 units @ 230 V
  • Power and Current: 346 W, 2.8 A @ 120 V, 60 Hz
  • Power and Current: 337 W, 1.6 A @ 208 V, 60 Hz
  • Power and Current: 342 W, 1.4 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

  • CE, MET
  • IP Rating: IP20, dry location

    Manufacturer: Chauvet
