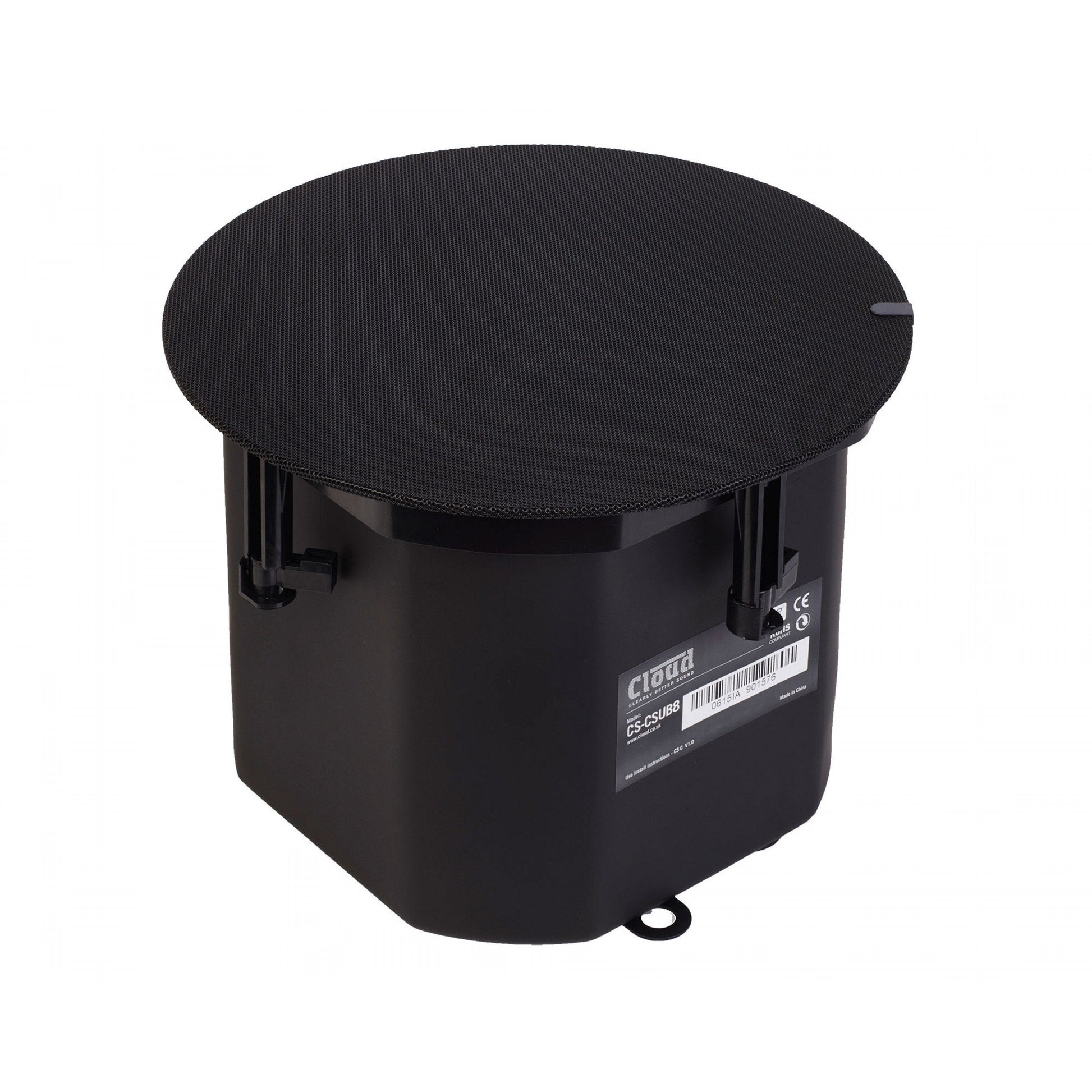

Cloud CS-CSUB8B 8" Speaker

Cloud's CS-CSUB8B 8-inch in ceiling subwoofer designed perfectly for any application. Excellent low frequency extension, ZeroEdge™ magnetic speaker grilles available in black or white, accessible high-impedance or low impedance switch settings and removable logos ensure Cloud speakers can be used discretely in almost any venue.

Designed exclusively for Cloud Electronics in the USA by a specialist team of speaker design engineers, the new CS-C Series speakers are extremely installer friendly and are tuned to complement the Cloud range of amplifiers and mixer amplifiers. Built for quality performance Cloud speakers are designed and tested to a superior standard by engineers who care and include a comprehensive 5-Year commercial warranty.

Main Features

• Efficient 8" subwoofer for excellent bass extension.
• 8" Treated Paper Woofer with Rubber Surround
• Deep backcan design (200mm)
• Magnetic speaker grilles available in Black or White.
• Accessible high-impedance or low impedance switch settings.
• Removable logos to allow for discrete use.
• 100v - 100W, 50W, 25W, 13W, or 100W@4Ω.
• 70v - 100W, 50W, 25W, 13W, 7W or 100W@4Ω.
• 25v - 13W, 7W, 3W, 1.5W, 0.8W or 100W@4Ω.
• Nom SPL: 87dB@1mt Max SPL: 107db@1mt.
• Optional Tile Bridge.
• Dims: 286.0mm x 210.2mm.
• Weight: 3.7kg net, 4.5kg gross.
• Cutout: 271.0mm
• Finished in Black

Product Specifications

General

• Response (f3): 86 Hz -20 kHz
• Response (f10): 64 Hz -20 kHz
• Impedance: 16 ohm
• Sensitivity (2.83 V/1 m): 89 dB
• Sensitivity (1 W/1 m): 92 dB
• Power handling: 75 W
• Maximum SPL: 111 dB
• Average coverage angle (2 kHz - 10 kHz): 107°
• Transformer taps: 64, 32,16, 8, 4 W
• Tweeter: 1 inch silk dome with phase plug
• Woofer: 8 inch treated paper with rubber surround
• Input: 4 pin Euroblock

Physical & Dimensions

• Diameter: 286mm
• Weight: 3.4kg

Manufacturer: Cloud
