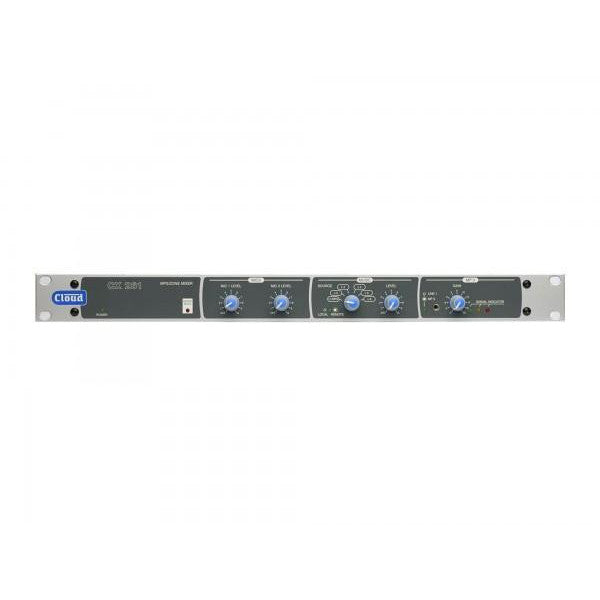

Cloud CX261 Single Zone Mixer

Description

The Cloud CX261 is a 1U rack-mounting audio mixer ideal for use in bars, restaurants and other leisure sector premises, also offices, hotels and other multi-use areas where simple control of high quality background music needs to be combined with a flexible range of paging options.

FEATURES:

  • Six (unbalanced) stereo line inputs with individual gain control
  • Two electronically-balanced mic inputs
  • Front panel control of music source/level and mic level
  • Front panel input (3.5mm jack) for MP3 player
  • HF & LF EQ adjustment for music and mic inputs
  • MIC 1 input configurable as transformer-isolated line input
  • MIC 1 priority over MIC 2 (selectable)
  • Short-to-ground access connector
  • Selectable LINE 6 priority with choice of release times
  • Music mute control input (NO or NC)
  • Compatible with standard Cloud remote control panels
  • Electronically-balanced stereo main output
  • Transformer-isolated mono auxiliary output
  • Aux output source selection (internal jumper)
  • Optional Bose EQ cards available
  • 1U 19'' rack mounting unit

SPECIFICATION:

Line inputs

  • Frequency Response: 20 Hz to 20 kHz, +/-0.5 dB
  • Distortion: <0.05% typical, 1 kHz
  • Sensitivity: 0.775 V (0 dBu), +/-12 dB
  • Input Gain Control Range: 24 dB
  • Input Impedance: 48 kohms
  • Headroom: >20 dB
  • Noise: <-88 dB rel 0 dBu (typical); A-weighted, rms
  • Equalisation: LF: +/-10 dB @ 50 Hz, HF: +/-10 dB @ 10kHz

MP3 input

  • Frequency Response: 20 Hz to 20 kHz, +/-0.5 dB
  • Distortion: <0.05% @ 1 kHz
  • Sensitivity: -20 dBu to +4 dBu
  • Gain Adjustment: 24 dB range

Microphone inputs

  • Frequency Response: -3 dB @ 100 Hz (filter), +/-0.5 dB @ 20 kHz
  • Distortion: <0.05%, 20 Hz to 22 kHz
  • Gain: 40 dB range
  • Sensitivity: -10 dBu to -50 dBu
  • Input Impedance: >2 kohms (balanced)
  • Common Mode Rejection: 1 kHz, >70 dB
  • Headroom: >20 dB
  • Noise: <-125 dB EIN, A-weighted, 150 ohms
  • Equalisation: LF: +/-10 dB @ 100 Hz, HF: +/-10 dB @ 5 kHz

Tel input

  • Frequency Response: -3 dB @ 100 Hz (filter); <-0.5 dB @ 20 kHz
  • Distortion: <0.05%, 200 Hz to 20 kHz
  • Sensitivity: -20 dBu to + 4 dBu
  • Headroom: >20 dB

Outputs

  • Output level (nominal)
    • Main: 0 dBu
    • Aux/MOH: -6 dBu
  • Minimum load impedance
    • Main: 1.2 kohms
    • Aux/MOH: 600 ohms
  • Maximum output level
    • Main: +20 dBu
    • Aux/MOH: 0 dBu

Physical & Dimensions

  • Dimensions (w x h x d): 482.6 mm x 44 mm (1U) x 152.5 mm
  • Shipping Dimensions (w x h x d): 560 mm x 140 mm x 290 mm
  • Weight: 2.13 kg
  • Shipping Weight: 3.15 kg
  • Power input: 85 V to 253 V AC, 50/60 Hz
  • Current consumption: 46.5 mA at 240 V
  • Fuse Rating: 1A
  • Fuse Type: T1A, 20 x 5 mm

Optional Accessories

  • RL-1 Remote Music Level Control
  • RSL-6 Remote Music Source Select
  • BOSE Loudspeaker EQ Card
  • EQ Cards for Amina AIWX & LFiT Loudspeakers
  • PM1 Paging Microphones

Manufacturer: Cloud

Related Collections:

Product form

SKU: CLOUD-CX261
Barcode: 364314782237

In stock

£436.00 Incl. VAT
