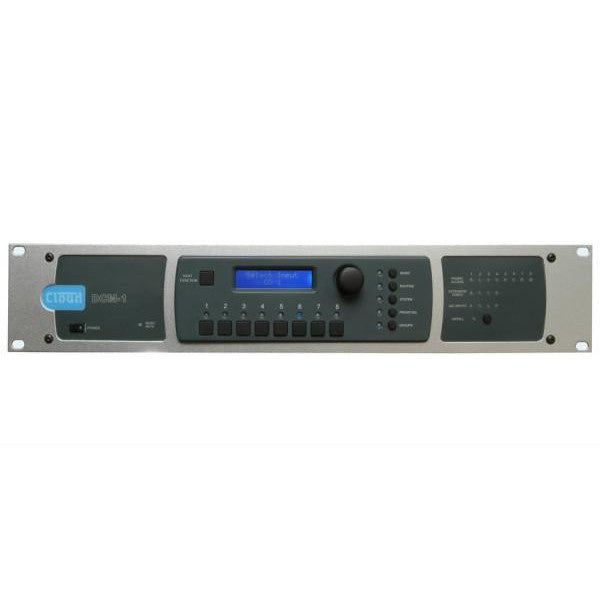

Cloud DCM-1 Digital Control Zone Mixer

Description

Clouds DCM1 provides any space-conscious sound installation with a high level of flexibility, but without the need of a PC.

It is ideal for contractors/installers who require flexible routing of line & mic signals.

With its simple-to-use digital control interface, can be controlled remotely via multiple LCD digital controllers.

Optional active input modules extend the flexibility further. The DCM-1 is Cloud's first ever microprocessor controlled multi zoner.

With traditional "installer friendly" analogue I/O and signal path, but giving the contractor the flexibility and adaptability of digital control the DCM-1 has the traditional simplicity of Cloud products, with far greater functionality.

Features:

  • 8 Stereo Line Inputs (1 Balanced)
  • 8 Balanced Line Outputs (2 Stereo + 6 Mono)
  • 4 Dedicated Ports for Optional Line Inputs (LE-1)
  • 4 Dedicated Ports for Optional Mic Inputs (ME-1)
  • Mic Paging to all Zones with Fully Programmable Override Logic
  • Separate Analogue Paging Mic Input with Contact Closure Zone Selection
  • Configurable Multiple Remote Controls
  • 4 Definable Zone Group Options
  • EQ can be set by Remote Controls
  • Configurable Line Priority by zone
  • Remote Active Line and Mic Modules (LE-1, ME-1 & BE-1)
  • RS232 Interface for AMX/Crestron
  • Accepts BOSE & Amina EQ Cards per Zone
  • No PC Required but Optional Set/Back GUI Utility

Specifications:

Line Inputs

  • Frequency Response: 20 Hz - 20k Hz ±1 dB
  • Distortion: <0.05 %, 20 Hz - 20k Hz
  • Sensitivity: 195 mV (-12 dBu) to 3.1 V (+12 dBu)
  • Input Gain Control: 24 dB range
  • Input Impedance: 47k Ω
  • Headroom: >+10 dB
  • Noise: -90 dB A weighted (0 dB gain)
  • Equalisation
    • HF: ±14 dB/10k Hz
    • MID: ±14 dB/1200 Hz
    • LF: ±14 dB/50 Hz

Paging Microphone Inputs

  • Frequency Response: 100 Hz / -3 dB(filter) to 20 kHz ±0.5dB
  • Distortion: <0.05% 20 Hz-20k Hz
  • Gain Range: 10 dB - 50 dB
  • Input Impedance: >2k Ω (balanced)
  • Phantom Power: +12 V (PCB jumper for on/off)
  • Headroom: >20 dB
  • Noise: -120 dB EIN 22 Hz - 22k Hz (150 Ω)
  • Equalisation
    • HF: ±10 dB/5k Hz
    • LF: ±10 dB/100 Hz

Outputs

  • Balanced Zone Outputs: 775 mV (0 dBu)
  • Minimum load impedance: 600 Ω
  • Maximum output level: +10 dBu (2.6 V)

External Power Supply

  • External Supply Input: 100 V-240 V AC; 47-63 Hz; 1.35 A
  • Power supply: +12 V, 3 A; -12 V 1 A

Physical & Dimensions

  • Dimensions (w x h x d): 482.6 mm x 88 mm (2U) x 170 mm
  • Dimensions (packed): 570 mm x 270 mm x 220 mm
  • Weight net: 3.12 kg
  • Weight packed: 4 kg packed

Optional Accessories

  • BOSE Loudspeaker EQ Card
  • BE-1 Balanced Input Module - (DCM-1)
  • CDR1 Remote Music Source Select (DCM-1)
  • CDR1-F Remote Music Source Sel (DCM-1)
  • LE-1 Line Input Module - (DCM-1)
  • ME-1 Mic Input Module - (DCM-1)
  • EQ Cards for Amina AIWX & LFiT Loudspeakers
  • PM1 Paging Microphones
  • PM4 Paging Microphone
  • PM8 Paging Microphone
  • PM12 Paging Microphone
  • PM16 Paging Microphone
  • PM4-SA & PM8-SA 4 & 8 Zone Paging Spot Announcer

Manufacturer: Cloud
