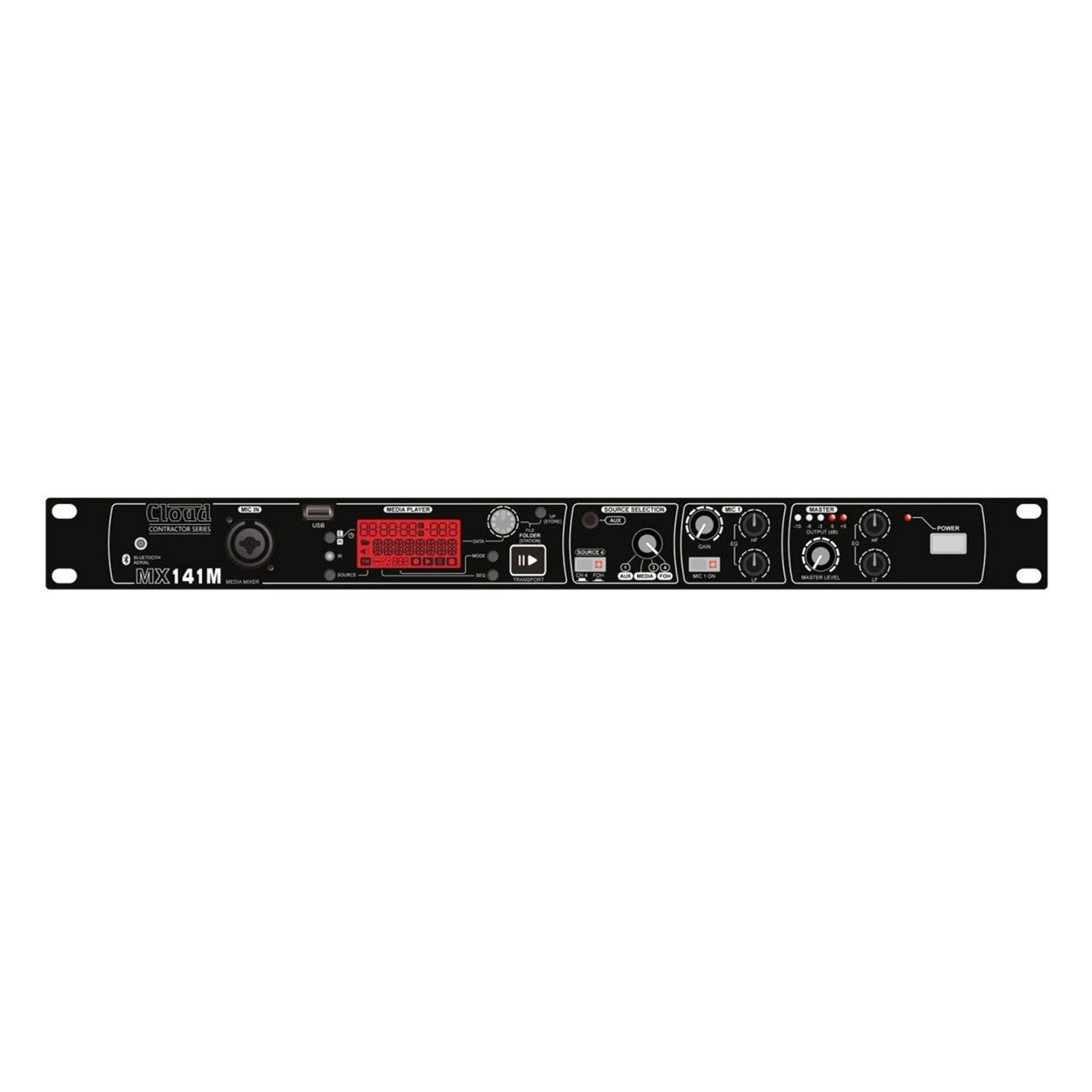

Cloud MX141M Mixer

Description

The Cloud MX141M is a cost-effective, rack mounting (1U) stereo audio mixer/media player ideal for use in all types of commercial premises.

It is simple to install and operate and provides a useful range of features and configuration options. It combines an audio mixer for one of four stereo music sources plus a microphone: one of the music sources is an on-board media player which incorporates both Bluetooth® wireless technology and an FM tuner.

The MX141M is supplied with an infrared remote control for the media player functions and is the perfect centrepiece for commercial sound systems in hospitality and fitness centre applications.

Features:

  • 3 Line Level Inputs (RCA)
  • 1 x Slave FOH Input (Stereo TRS)
  • 1 Media Input (Bluetooth®, USB, FM)
  • 1 Mic Input (Combo XLR & TRS)
  • Single Output (Euro Con or RCA or TRS)
  • EQ Control for Mic & Master Output
  • IR Remote for Media Player Functions
  • Emergency Line Level Input

Specifications

Line inputs

  • Frequency Response
    • Low-Z output: +0/-1 dB, 20 Hz to 20 kHz (65 Hz filter out)
    • 100/70/50 V-line output (with CXL-50T transformer fitted): +0/-3 dB, 20 Hz to 20 kHz (65 Hz filter out)
  • Distortion
    • Low-Z output: <0.05% @ 1 kHz, 1 dB below full power (80 kHz bandwidth)
    • High voltage output: <0.05% @ 1 kHz, 1 dB below full power (80 kHz bandwidth)
  • Sensitivity: 195 mV (-12 dBu) to 2.0 V (+8 dBu)
  • Input Gain Control: 20 dB range
  • Input Impedance: 47 kohms
  • Headroom: >20 dB
  • Noise: -93 dB, 22 Hz to 22 kHz; measured at speaker output, relative to full power

Microphone inputs

  • Frequency Response
    • Low-Z output: -3 dB @ 100 Hz (3rd. order filter); -1 dB @ 20 kHz
    • High voltage output: -3 dB @ 100 Hz (3rd. order filter); -2 dB @ 20 kHz
  • Distortion: <0.05% @ 1 kHz, 1 dB below full power (80 kHz bandwidth)
  • Gain: 40 dB range
  • Input Impedance: >2 kohms (balanced)
  • Phantom Power: 15 V, switchable per-input by jumpers
  • Headroom: >20 dB
  • Noise: -127 dB EIN, 22 Hz to 22 kHz (150 ohms)

Outputs

  • Output Power
    • Low impedance output: 60 W @ 1 kHz & <0.07% THD+N
    • 100/70/50 V-line output: 50 W @ 1 kHz & <0.07% THD+N
  • Equalisation: HF: +/-10 dB @ 5 kHz LF: +/-10 dB @ 100 Hz
  • Protection: Dynamic level signal limiter max gain reduction of 20 dB, Thermal protection, IV limiting & short circuit protection, Switch on delay

Physical & Dimensions

  • Power input: 230 V, 115 V, 100 V versions available
  • Fuse Rating: 230/120 V - T2A H
  • Fuse Type: 20 mm x 5 mm
  • Cooling: Convection cooled, vents top and bottom
  • Dimensions (w x h x d): 213 mm x 88 mm (2U) x 278 mm (plus connectors and knobs)
  • Shipping Dimensions (w x h x d): 270 mm x 140 mm x 380 mm
  • Weight: 3.7 kg
  • Shipping Weight: 4.35 kg

Optional Accessories:

  • RL-1 Remote Music Level Control
  • RSL-4 Remote Music Source Selector
  • XLRF1 Female XLR Input Module
  • XLRM1 Male XLR Input Module
  • RE-S Rack Mounting Housing Kit
  • RE-L Rack Mounting Housing Kit
  • BOSE Loudspeaker EQ Card
  • CXL-60T 60w Toroidal Transformer
  • EQ Cards for Amina AIWX & LFiT Loudspeakers
  • PM1 Paging Microphones

Manufacturer: Cloud

Related Collections:

Product form

SKU: CLOUD-MX141M

In stock

£257.00 Incl. VAT

    Delivery informationDelivery information

    There is a free standard delivery option for most UK orders as well as a £2.99 option which means your order will arrive faster than normal.

    For standard delivery your order should arrive within 2-5 working days. For the faster option it should be 1-3 working days.

    If you're from Northern Ireland there will be a £5 surcharge for heavier items. If you're buying a light item (under 2kg) please let us know as we may be able to refund your postage after the purchase.

    Buy now pay laterBuy now pay later

    Paypal Pay in 3 lets you spread your purchase interest free over 3 separate payments.

    If you'd like to use Paypal Pay in 3, please perform the following steps.

    1. Add the item to your cart as normal.

    2. Check out with Paypal.

    3. Log into Paypal.

    4. You should see a screen detailing the item costs. Scroll down and you should see an option for "Pay in 3".

    5. Continue the checkout process.

    1/3 of the purchase price will be taken immediately and then the rest over the next 2 months the rest of the payment will be taken.

    Please see more info about the service here.

    As with any sort of buy now pay later, please only use this service for added convenience when making a bigger purchase. It should only be used if you're 100% sure you can make all of the payments on time.
