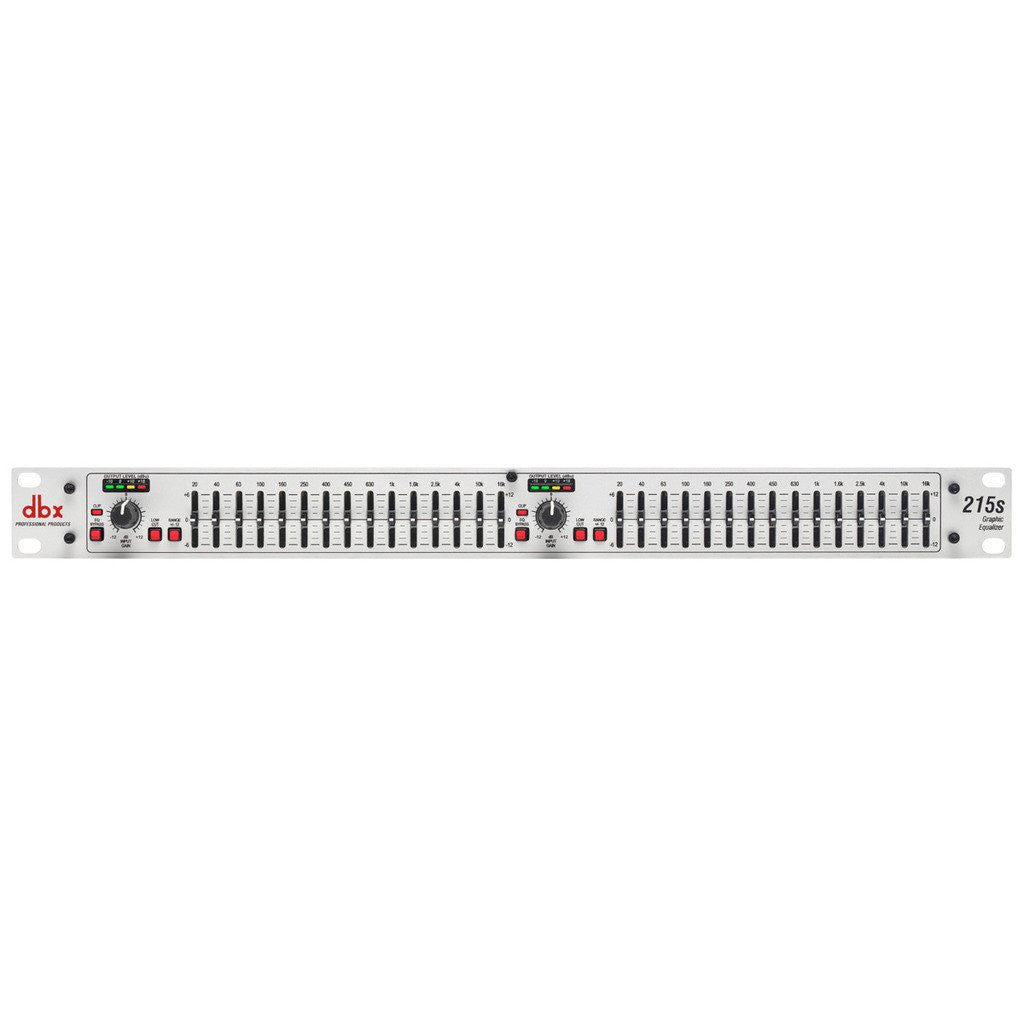

DBX 215S Dual Channel 15-Band Eq

Description

The DBX 215S Dual Channel 15-Band Equaliser includes two 15-band channels of 2/3-octave equalisation, ±12 dB input gain, switchable ±6 dB or ±12 dB boost/cut range, 20mm nonconductive sliders, an intuitive user interface, and output level metering.

From its extended 10Hz to 50kHz frequency response and 112 dB dynamic range to the quality componentry and meticulous attention to detail, the 215s offers exceptional sound and rugged reliability that guarantees you will always sound your best.

Sure to find a home in the studio, on tour and with installed sound venues, the dbx 215s is destined to take its rightful place in the lineage of great dbx signal processors that are the professional's choice in signal processing. With such affordable quality, there's no longer any excuse for compromising your sound.

Product Features

  • Dual 15-band, 1/3-octave Constant Q frequency bands
  • Switchable boost/cut ranges of ±6 or ±12 dB
  • Front panel bypass switch
  • ±12 dB input gain range
  • 4-segment LED ladders for monitoring output levels
  • XLR and TRS Inpts and Outputs
  • Frequency Repsonse of <10Hz to >50kHz
  • Dynamic range of greater than 108dB

Input

  • Connectors: 1/4" TRS, female XLR (pin 2 hot)
  • Type: Electronically balanced/unbalanced, RF filtered
  • Impedance: Balanced 40k ohm, unbalanced 20k ohm
  • Max Input Level: >+21dBu balanced or unbalanced
  • CMRR: >40dB, typically >55dB at 1kHz

Outputs

  • Connectors: 1/4" TRS, male XLR (pin 2 hot)
  • Type: Impedance-balanaced/unbalanced, RF filtered
  • Impedance: Balanced 100 ohm, unbalanced 50 ohm
  • Max Output Level: >+21dBu balanced/unbalanced into 2k ohm or greater, >+18dBm balanced/unbalanced (into 600 ohm)

System Performance

  • Bandwidth: 20Hz to 20kHz, +0.5/-1dB
  • Frequency Response: <10Hz to >50kHz, +0.5/-3dB
  • Dynamic Range: Typically >112dB
  • Signal-to-Noise: Typically >95dB
  • THD+Noise: <0.003%
  • Interchannel Crosstalk: <-90dB, 20Hz to 20kHz

Function Switches

  • EQ Bypass: Bypasses the graphic equalizer section in the signal path
  • Low Cut: Activates the 50Hz 12dB/octave high-pass filter
  • Range: Selects either +/- 6dB or +/- 12dB slider boost/cut range

Power Supply

  • Operating Voltage: 100VAC-240VAC 50/60Hz
  • Power consumption: 15W
  • Mains Connection: IEC receptacle

Physical

  • Weight: 4.8 lbs.(2.2 kg) Shipping weight 6.2 lbs.(2.8kg)
  • Dimensions: 1.75" (4.4cm) H x 6"(15.24cm) D x 19" (48.26cm) W

Manufacturer: DBX

Related Collections:

Product form

SKU: DBX-215S
Barcode: 4016138720631

In stock

£175.00 Incl. VAT

    Delivery informationDelivery information

    There is a free standard delivery option for most UK orders as well as a £2.99 option which means your order will arrive faster than normal.

    For standard delivery your order should arrive within 2-5 working days. For the faster option it should be 1-3 working days.

    If you're from Northern Ireland there will be a £5 surcharge for heavier items. If you're buying a light item (under 2kg) please let us know as we may be able to refund your postage after the purchase.

    Buy now pay laterBuy now pay later

    Paypal Pay in 3 lets you spread your purchase interest free over 3 separate payments.

    If you'd like to use Paypal Pay in 3, please perform the following steps.

    1. Add the item to your cart as normal.

    2. Check out with Paypal.

    3. Log into Paypal.

    4. You should see a screen detailing the item costs. Scroll down and you should see an option for "Pay in 3".

    5. Continue the checkout process.

    1/3 of the purchase price will be taken immediately and then the rest over the next 2 months the rest of the payment will be taken.

    Please see more info about the service here.

    As with any sort of buy now pay later, please only use this service for added convenience when making a bigger purchase. It should only be used if you're 100% sure you can make all of the payments on time.

    Description

    The DBX 215S Dual Channel 15-Band Equaliser includes two 15-band channels of 2/3-octave equalisation, ±12 dB input gain, switchable ±6 dB or ±12 dB boost/cut range, 20mm nonconductive sliders, an intuitive user interface, and output level metering.

    From its extended 10Hz to 50kHz frequency response and 112 dB dynamic range to the quality componentry and meticulous attention to detail, the 215s offers exceptional sound and rugged reliability that guarantees you will always sound your best.

    Sure to find a home in the studio, on tour and with installed sound venues, the dbx 215s is destined to take its rightful place in the lineage of great dbx signal processors that are the professional's choice in signal processing. With such affordable quality, there's no longer any excuse for compromising your sound.

    Product Features

    • Dual 15-band, 1/3-octave Constant Q frequency bands
    • Switchable boost/cut ranges of ±6 or ±12 dB
    • Front panel bypass switch
    • ±12 dB input gain range
    • 4-segment LED ladders for monitoring output levels
    • XLR and TRS Inpts and Outputs
    • Frequency Repsonse of <10Hz to >50kHz
    • Dynamic range of greater than 108dB

    Input

    • Connectors: 1/4" TRS, female XLR (pin 2 hot)
    • Type: Electronically balanced/unbalanced, RF filtered
    • Impedance: Balanced 40k ohm, unbalanced 20k ohm
    • Max Input Level: >+21dBu balanced or unbalanced
    • CMRR: >40dB, typically >55dB at 1kHz

    Outputs

    • Connectors: 1/4" TRS, male XLR (pin 2 hot)
    • Type: Impedance-balanaced/unbalanced, RF filtered
    • Impedance: Balanced 100 ohm, unbalanced 50 ohm
    • Max Output Level: >+21dBu balanced/unbalanced into 2k ohm or greater, >+18dBm balanced/unbalanced (into 600 ohm)

    System Performance

    • Bandwidth: 20Hz to 20kHz, +0.5/-1dB
    • Frequency Response: <10Hz to >50kHz, +0.5/-3dB
    • Dynamic Range: Typically >112dB
    • Signal-to-Noise: Typically >95dB
    • THD+Noise: <0.003%
    • Interchannel Crosstalk: <-90dB, 20Hz to 20kHz

    Function Switches

    • EQ Bypass: Bypasses the graphic equalizer section in the signal path
    • Low Cut: Activates the 50Hz 12dB/octave high-pass filter
    • Range: Selects either +/- 6dB or +/- 12dB slider boost/cut range

    Power Supply

    • Operating Voltage: 100VAC-240VAC 50/60Hz
    • Power consumption: 15W
    • Mains Connection: IEC receptacle

    Physical

    • Weight: 4.8 lbs.(2.2 kg) Shipping weight 6.2 lbs.(2.8kg)
    • Dimensions: 1.75" (4.4cm) H x 6"(15.24cm) D x 19" (48.26cm) W

    Manufacturer: DBX
