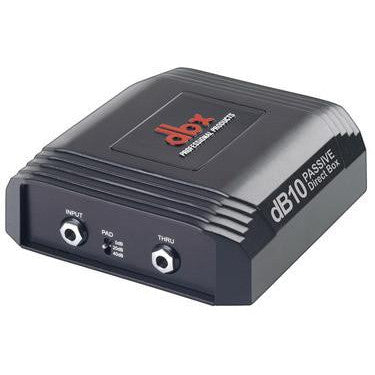

DBX DB10 Passive Direct Box

Description

The DBX DB10 Passive Direct Box utilises custom DBX mu-metal-shielded audio transformers, high-quality Neutrik® connectors, low-noise circuitry which preserves the sonic integrity and true characteristics of the signal source.

Includes a pad switch that accommodates instrument, line and even speaker level signals.

Take even more control of your sound by utilising the polarity invert switch to set the phase relationship between the direct and mic'd sound.

As a professional, you don’t have time for interference, so DBX included a ground lift switch to solve potential hum and buzz problems due to ground loops. Between the combined shielding of the cast metal chassis and the custom-wound transformer, you can be doubly assured of a clean signal free from interference.

All of this sits atop a solid, stable footprint, that will keep the box from being dragged around the stage, and the unique contoured underside allows secure stacking of multiple units.

Product Features

  • Premium Performance
  • Rugged Design
  • Stackable Chassis with Durable Rubber Foot
  • Gold-plated Neutrik® XLR Connector
  • Premium Chrome Toggle Switches
  • Hi-Z 1/4" Input Jack
  • Parallel 1/4" Thru Jack
  • Transformer Isolated
  • Premium Shielded Custom dbx Transformer
  • Balanced XLR Lo-Z Output
  • 3-Way 0/20/40 dB Pad Switch
  • Flat/High-Cut Filter Switch
  • Output Polarity Invert Switch
  • Ground Lift Switch
  • 4 Year Warranty!

Product Specifications

Input 1 instrument/line/speaker level
Input Connectors 1/4" jack
Input Type Unbalanced, RF filtered
Insert Impedance 150k Ohm typical
Max Input +20dBu (0dB pad); +40dBu (20dB pad); +60dBu (40dB pad)
Output (Thru) 1 parallel from input jack, 1/4" Unbalanced, RF filtered
Output Connectors XLR male balanced
Output Impedance 150k Ohm typical
Max Output 0dBu
Transformer Custom dbx mu-metal-shielded
Frequency Response 20Hz to 20kHz, +/-2.5dB
Noise <-105dB unweighted, 22kHz BW
THD <0.01%, 20Hz to 20kHz BW; <0.005%, 1kHz
Dimensions 5.82" L X 5.44" W X 2.20" H (148 x 138 x 56mm)
Weight 1.4 lbs / 0.65 kg

Manufacturer: DBX

Related Collections:

Product form

SKU: DBX-DB10
Barcode: 691991401015

Out of stock

£108.00 Incl. VAT
