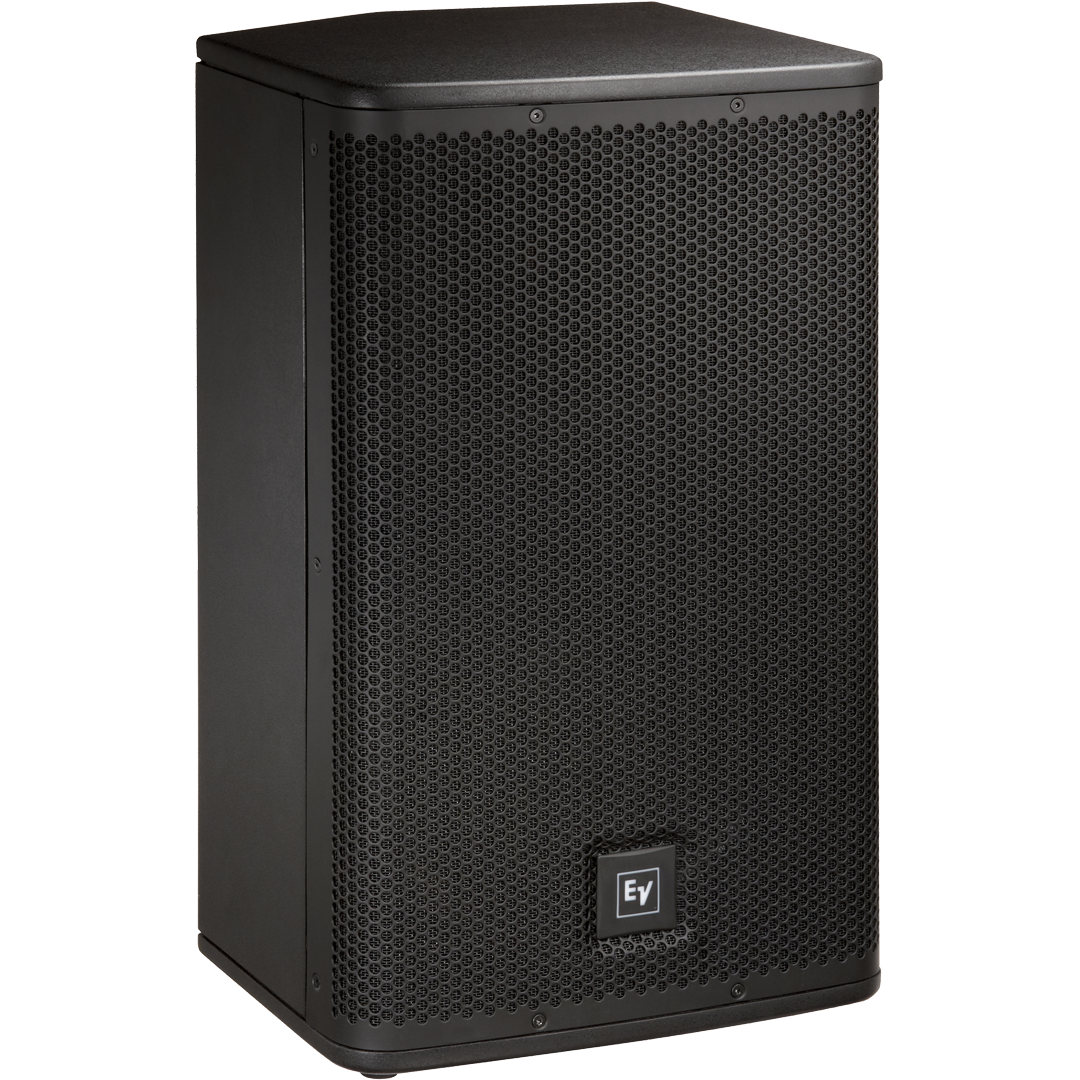

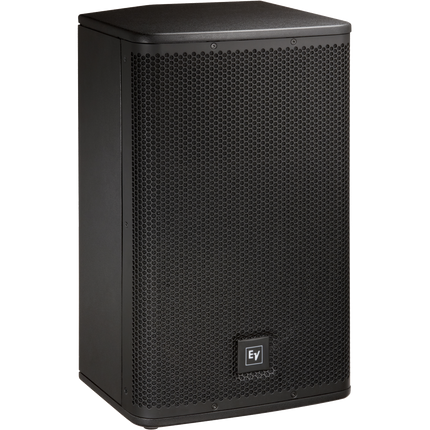

Electro-Voice ELX112 12" Passive Speaker

The Electro-Voice ELX112 Live X is a 12" 2-way passive PA speaker which has a 250W continuous (1000W peak) power handling capability to provide a strong, distortion-free performance.

Main Features

• Compact power for sound reinforcement and stage monitoring
• EVS-12K woofer
• 1.5-inch DH-1K titanium HF compression driver
• 55 Hz – 20 kHz frequency range
• 90° x 50° coverage-pattern waveguide
• 60° Monitor Angle
• 94 dB SPL sensitivity; 132 dB max SPL
• Power handling: 250 W continuous, 1000 W peak
• Braced 15mm plywood enclosure
• Pole mount or stack with Live X Subwoofers
• Black textured finish
• Free cover while stocks last

Specifications

General

• Axial Sensitivity (SPL, 1 W @ 1 m): 94dB
• Case Material: 9-ply, 15mm Plywood, Internally Braced, with Textured Paint
• Connector Type: Parallel Neutrik® NL4
• Coverage (Nominal -6 dB) H: 90°
• Coverage (Nominal -6 dB) V: 50°
• Crossover Frequency: 21000Hz
• Enclosure Material: 9-ply plywood
• Family: ELX
• Frequency Response (-10 dB): 55 - 20000 Hz
• Frequency Response (-3 dB): 82 - 18000 Hz
• Grill: 18GA Steel with Black Powdercoat
• HF Transducer: DH-1K, 39mm (1.5") Titanium Diaphragm Compression Driver
• Internal Crossover: Yes
• LF Transducer: (1) EVS-12K, 305mm (12") Woofer
• Max. SPL/1m (calc): 132dB
• Minimum Impedance: 7.0Ω
• Nominal Impedance (Passive): 8Ω
• Powered or Passive: Passive
• Recommended High-Pass Frequency: 45Hz
• Speaker Type: Full-Range, two-way, wedges
• System Power Handling (Continuous/Program/Peak): 250//1000 Watts
• Woofer Size: 12inch

Physical & Dimensions

• Height: 607mm
• Width: 362mm
• Depth: 340mm
• Weight: 16kg
