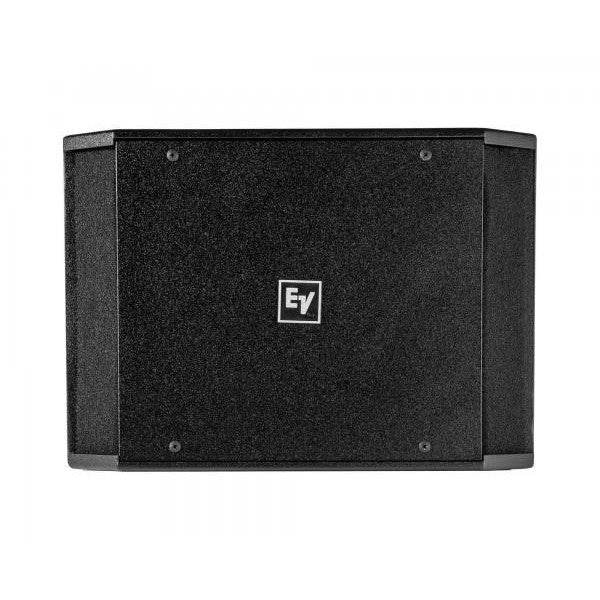

Electro-Voice EVID S12.1 12" Sub Black

The Electro-Voice EVID S12.1B 12" Subwoofer in black is a compact, high-performance, 12" (305 mm) woofer loudspeaker with outstanding performance for the most demanding professional and commercial sound applications.

Designed and engineered for use in background and foreground music, and sound reinforcement applications, the EVID S12.1 B is the ideal solution for indoor and outdoor applications, such as restaurants, bars, patios, retail, fitness clubs, hospitality, theme parks, leisure venues, and others.

The 12.1 subwoofer’s slot-loaded design allows for flexible mounting and placement while delivering the smoothest bass response possible.

The 12" high-excursion woofer, with its dual voice-coil design, enables both the left and right channels to feed into the speaker while providing crossed-over outputs for up to 4 satellite speakers at the same time.

If desired, the EVID-S12.1 can be powered separately for an even more powerful presence. The EVID-S12.1 features reinforced steel-fastener construction that allows for a variety of mounting configurations.

Product Features

• EVID-S12.1 B Subwoofer in black
• High-excursion 12" woofer with dual voice coil to accommodate L & R channels
• 200 W power handling provides for 127 dB maximum SPL (133 dB Peak)
• Crossover input panel included
• Can easily be painted to match the decor
• The ideal solution for indoor and outdoor applications

Product Specifications

General

• Frequency Range (-10 dB): 40Hz - 140kHz
• Colour: Black
• Connector Type: Spring loaded
• LF Transducer: 12 inch (305 mm)
• Max. SPL/1m (calc): 127dB
• Nominal Impedance: 8Ω
• Power Handling (Continuous / Peak): 200W/800W
• Sensitivity (LF/MF/HF): 104dB
• Speaker Type: Subwoofer
• Weatherized: Yes

Physical & Dimensions

• Height: 413mm
• Width: 584mm
• Depth: 303mm
• Weight: 17.8kg

Manufacturer: Electro-Voice
