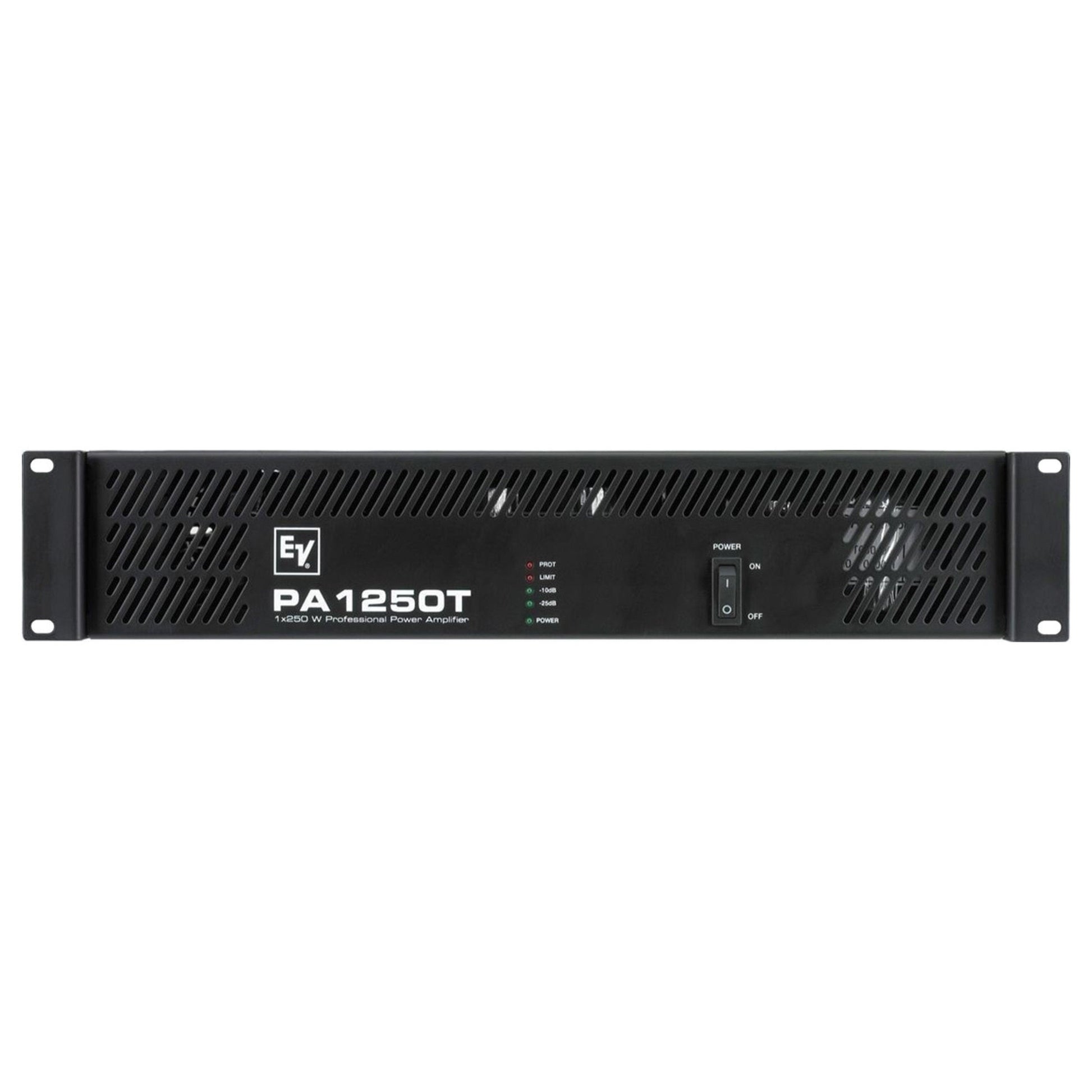

Electro-Voice PA1250T Power Amp

Description

The Electro-Voice PA1250T 1-Channel 70/100V-Line Amplifier 1x250W/100V combines outstanding audio performance, exceptional reliability and secure operational safety in a compact 2RU chassis design.

All models in the PA Series provide several protection circuits which not only prevent the power amplifier itself but also the connected loudspeaker systems from being damaged. These protections include Dynamic Audio Limiters, Inrush Current Limiter, Short Circuit Protection and Thermal Overload Protection. All PA-Series power amps feature different hi-pass filters with switch selectable cut-off frequency to attenuate unwanted low-frequency signals.

Infinitely variable low-noise high performance fans guarantee absolute thermal stability while keeping fan noise to a minimum. Direct “flow-thru” chassis design allows for a smooth flow of air from front-to-rear, which allows trouble-free operation even in smaller amp-racks. Compact high density power supply units with low-leakage toroidal transformers provide extensive headroom far above the listed power rating.

Premium phoenix style screw-lock connectors prevent accidental disconnection resulting in a more secure connection of audio signal and speaker cables.

FEATURES:

  • Cool-running, saturation-free power for distributed installations
  • Ideal for sound reinforcement, paging, and life safety
  • 250 W mono for 70/100 V lines
  • Compact 2 RU design
  • Stepped rear-panel level attenuation
  • Selectable 50 Hz or 300 Hz high-pass filter
  • Thermal protection, peak limiting, turn-on delay
  • Phoenix-type inputs and outputs
  • Three-stage front-to-rear fans
  • Integrated rack ears for direct mounting

SPECIFICATION:

General

  • Continuous Rated Power (1 kHz, THD 1%) 100v: 270 Watts
  • Continuous Rated Power (1 kHz, THD 1%) 70v: 270 Watts
  • Continuous Rated Power (20-20 kHz, THD<0,2%) 100v: 250 Watts
  • Continuous Rated Power (20-20 kHz, THD<0,2%) 70v: 250 Watts
  • Crosstalk: < < -75 dB
  • DIM 30: < 0.1 %
  • Frequency Response: 65Hz-20kHz
  • Input Impedance (Balanced): > 20 kΩ
  • Input Sensitivity: 0 dBu
  • Intermodulation Distortion (SMPTE): < 0.1 %
  • Network Control (IRIS-Net): No
  • Number of Channels: 1
  • Signal-to-Noise Ratio (A-weighted): 103 dB
  • Slew Rate: 41/61 V/µs
  • Total Harmonic Distortion: < 0.1 %

Physical & Dimensions

  • Height: 2RU 88mm
  • Width: 483mm
  • Depth: 406mm
  • Weight: 16.5kg

Manufacturer: Electro Voice

Related Collections:

Product form

SKU: EV-PA1250T

Out of stock

£540.00 Incl. VAT

    Delivery informationDelivery information

    There is a free standard delivery option for most UK orders as well as a £2.99 option which means your order will arrive faster than normal.

    For standard delivery your order should arrive within 2-5 working days. For the faster option it should be 1-3 working days.

    If you're from Northern Ireland there will be a £5 surcharge for heavier items. If you're buying a light item (under 2kg) please let us know as we may be able to refund your postage after the purchase.

    Buy now pay laterBuy now pay later

    Paypal Pay in 3 lets you spread your purchase interest free over 3 separate payments.

    If you'd like to use Paypal Pay in 3, please perform the following steps.

    1. Add the item to your cart as normal.

    2. Check out with Paypal.

    3. Log into Paypal.

    4. You should see a screen detailing the item costs. Scroll down and you should see an option for "Pay in 3".

    5. Continue the checkout process.

    1/3 of the purchase price will be taken immediately and then the rest over the next 2 months the rest of the payment will be taken.

    Please see more info about the service here.

    As with any sort of buy now pay later, please only use this service for added convenience when making a bigger purchase. It should only be used if you're 100% sure you can make all of the payments on time.

    Description

    The Electro-Voice PA1250T 1-Channel 70/100V-Line Amplifier 1x250W/100V combines outstanding audio performance, exceptional reliability and secure operational safety in a compact 2RU chassis design.

    All models in the PA Series provide several protection circuits which not only prevent the power amplifier itself but also the connected loudspeaker systems from being damaged. These protections include Dynamic Audio Limiters, Inrush Current Limiter, Short Circuit Protection and Thermal Overload Protection. All PA-Series power amps feature different hi-pass filters with switch selectable cut-off frequency to attenuate unwanted low-frequency signals.

    Infinitely variable low-noise high performance fans guarantee absolute thermal stability while keeping fan noise to a minimum. Direct “flow-thru” chassis design allows for a smooth flow of air from front-to-rear, which allows trouble-free operation even in smaller amp-racks. Compact high density power supply units with low-leakage toroidal transformers provide extensive headroom far above the listed power rating.

    Premium phoenix style screw-lock connectors prevent accidental disconnection resulting in a more secure connection of audio signal and speaker cables.

    FEATURES:

    • Cool-running, saturation-free power for distributed installations
    • Ideal for sound reinforcement, paging, and life safety
    • 250 W mono for 70/100 V lines
    • Compact 2 RU design
    • Stepped rear-panel level attenuation
    • Selectable 50 Hz or 300 Hz high-pass filter
    • Thermal protection, peak limiting, turn-on delay
    • Phoenix-type inputs and outputs
    • Three-stage front-to-rear fans
    • Integrated rack ears for direct mounting

    SPECIFICATION:

    General

    • Continuous Rated Power (1 kHz, THD 1%) 100v: 270 Watts
    • Continuous Rated Power (1 kHz, THD 1%) 70v: 270 Watts
    • Continuous Rated Power (20-20 kHz, THD<0,2%) 100v: 250 Watts
    • Continuous Rated Power (20-20 kHz, THD<0,2%) 70v: 250 Watts
    • Crosstalk: < < -75 dB
    • DIM 30: < 0.1 %
    • Frequency Response: 65Hz-20kHz
    • Input Impedance (Balanced): > 20 kΩ
    • Input Sensitivity: 0 dBu
    • Intermodulation Distortion (SMPTE): < 0.1 %
    • Network Control (IRIS-Net): No
    • Number of Channels: 1
    • Signal-to-Noise Ratio (A-weighted): 103 dB
    • Slew Rate: 41/61 V/µs
    • Total Harmonic Distortion: < 0.1 %

    Physical & Dimensions

    • Height: 2RU 88mm
    • Width: 483mm
    • Depth: 406mm
    • Weight: 16.5kg

    Manufacturer: Electro Voice
