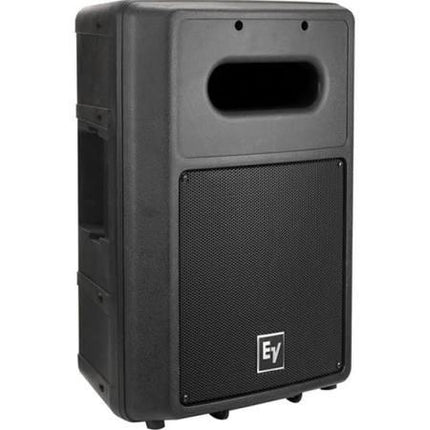

Electro-Voice SB122 12" Passive Subwoofer

The Electro-Voice SB122 is a 12" compact, lightweight subwoofer system that is designed to add bass enhancement to SX and ZX Series speaker systems.

Main Features

• Very compact and lightweight, only 15.0 kg
• Integral low-pass filter
• Parallel Neutrik Speakon high current input connectors
• 400 Watt continuous, 1,600 Watt peak power handling
• Cast frame EVS12SB 12-inch high excursion subwoofer driver
• Integral handle

Specifications

• Dimensions: (H x W x D): 23.1” x 16.9” x 12.3”
• Weight: 33 lbs (15.0 kg)
• LF transducer: EVS12SB, 12 in. (305 mm)
• Frequency response (-3 dB): 55 Hz–145 Hz
• Frequency range (-10 dB): 43 Hz – 600 Hz
• Power handling (Cont.): 400 Watts
• Power handling (Peak): 1,600 Watts
• Sensitivity (SPL 1W/1m, half space): 99 dB
• Max. Calculated SPL: 131 dB
• Audio connection: (2) Neutrik NL4
