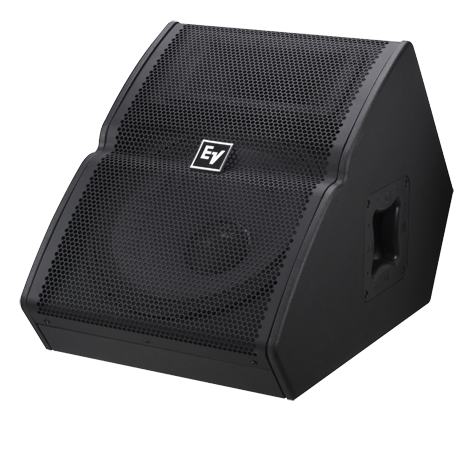

Electro-Voice TX1152FM Monitor

The Electro-Voice TX1152FM Tour-X 15" passive floor monitors are designed to complement all full-range cabinets in the family with common voicing.

Main Features

• Compact with high output
• Ideal for small-to-medium stages
• Signal Synchronised Transducers for woofer/tweeter alignment
• Ultra low-distortion SMX2151 woofer with fully symmetric drive
• 1.25-inch DH3/2010A titanium HF compression driver
• Braced plywood/MDF enclosure

Specifications

General

• Coverage (Nominal -6 dB) H: 90°
• Coverage (Nominal -6 dB) V: 50°
• Crossover Frequency: 1750Hz
• Enclosure Material: Plywood and MDF with EVCOAT
• Family: Tour X
• Flying: No
• Frequency Response (-10 dB): 45 - 20000 Hz
• Frequency Response (-3 dB): 65 - 20000 Hz
• HF Transducer: DH3
• Input Connections: Parallel Neutrik® NL4
• Internal Crossover: Yes
• LF Transducer: SMX2151
• Max. SPL/1m (calc): 133dB
• Minimum Impedance: 6.2Ω
• Nominal Impedance (Passive): 8Ω
• Power Rating: 2000W
• Powered or Passive: Passive
• Recommended High-Pass Frequency: 45Hz
• Rotatable Horn: No
• Sensitivity 1 W/1 m: 100dB
• Speaker Type: Monitor
• System Power Handling (Continuous/Program/Peak): 500Watts
• Woofer Size: 15inch

Physical & Dimensions

• Height: 475mm
• Width: 439mm
• Depth: 655mm
• Weight: 23.5kg
