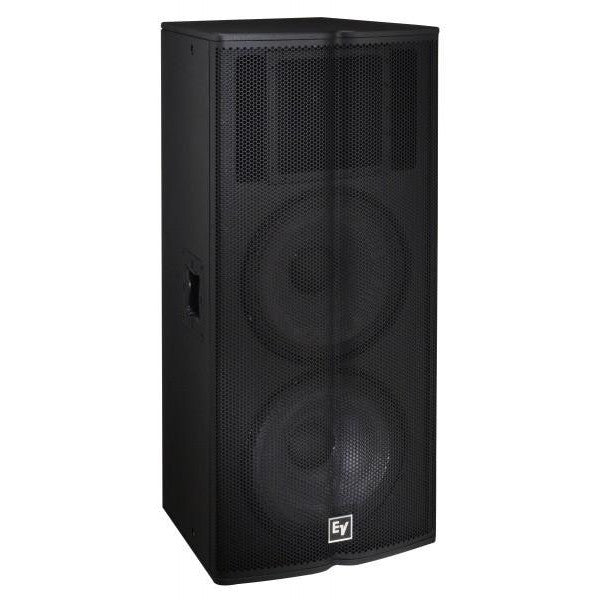

Electro-Voice TX2152 2x15" Passive Speaker

The Electro-Voice TX2152 Tour X is a Dual 15" passive PA speaker which has a 1000W continuous (4000W peak) power handling capability to provide a strong, distortion-free performance.

Main Features

• Very high SPL with smooth response
• Ideal as mains for small-to-medium clubs
• Excellent pattern control for medium throw use
• Dual SMX2151 woofers with fully symmetric drive
• 2-inch ND2 neodymium HF compression driver
• Rotatable Constant-directivity 60º x 40º horn
• Advanced 6th-order crossover with HF protection
• 103 dB sensitivity, 139 dB maximum SPL
• Power handling: 1000 W continuous, 4000 W peak
• Internally braced trapezoidal plywood/MDF enclosure
• Six 3/8-inch threaded suspension points
• Black EVCoat™ finish

Specifications

General

• Coverage (Nominal -6 dB) H: 60°
• Coverage (Nominal -6 dB) V: 40°
• Crossover Frequency: 1750Hz
• Enclosure Material: Plywood and MDF with EVCOAT
• Family: Tour X
• Flying: Yes
• Frequency Response (-10 dB): 50 - 18000 Hz
• Frequency Response (-3 dB): 55 - 13000 Hz
• HF Transducer: 2-inch ND2
• Input Connections: Parallel Neutrik® NL4
• Internal Crossover: Yes
• LF Transducer: Two 15-inch SMX2151
• Max. SPL/1m (calc): 139dB
• Minimum Impedance: 3.1Ω
• Nominal Impedance (Passive): 4Ω
• Power Rating: 4000W
• Powered or Passive: Passive
• Recommended High-Pass Frequency: 40Hz
• Rotatable Horn: Yes
• Sensitivity 1 W/1 m: 103dB
• Speaker Type: Full-Range
• Suspension: (6) 3/8-inch threaded inserts
• System Power Handling (Continuous/Program/Peak): 1000//4000 Watts
• Woofer Size: 15inch

Physical & Dimensions

• Height: 1154mm
• Width: 508mm
• Depth: 471mm
• Weight: 42.8kg
