Electro-Voice ZX1i-100W Speaker

Description

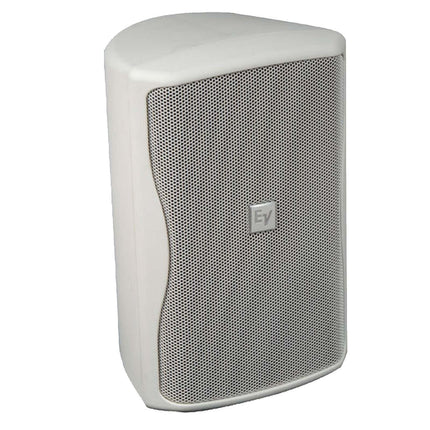

The Electro-Voice ZX1i-100 passive speaker in white is a 200W 8" two-way full-range composite loudspeaker with a 100x100 coverage pattern with rotatable waveguide.

Main Features

  • Indoor/outdoor design
  • Ideal for installed mains, fills, or distributed sound
  • Velocity-compensated port for exceptional LF
  • 1.25-inch DH2005 titanium HF compression driver
  • Compact water-resistant high-impact polypropylene enclosure
  • Integrated QuickSAM heavy-duty Strong-Arm Mounting bracket
  • In White

Specifications

  • Frequency Response (-3dB) 60 Hz – 20 kHz
  • Frequency Range (-10dB) 48 Hz – 20 kHz
  • Rec. Hipass Frequency 40 Hz
  • Axial Sensitivity (100 degrees) 92 dB (1W/1m)
  • Max Calculated SPL (100 degrees) 121 dB
  • Horizontal Coverage 90degrees or 100degrees
  • Vertical Coverage 50degrees or 100degrees
  • Enclosure Rotation +/-35degrees
  • Enclosure Sweep +/-45degrees
  • Rated System Power 200 W Cont., 400 W Prog., 800 W Peak
  • LF Transducer EV8L, 8 in. (203mm) Driver
  • HF Transducer DH2005, 1 in. (25.4mm) Exit Compression Driver
  • Crossover Frequency 1.7kHz
  • Nominal Impedance 8Ohms
  • Minimum Impedance 6Ohms
  • “T” Version Wattage Taps
  • 70 V – 6, 12.5, 25, 50, 100, 8 Ohm bypass
  • 100V – 12.5, 25, 50, 100, 8 Ohm bypass
  • Connectors 4-Pin Phoenix Connector
  • Enclosure Material High Impact Polymer
  • Suspension Integrated QuickSAM Heavy-Duty Strong-Arm Mounting Bracket
  • Grille Polyester Powder Coated, 18GA Galvanized Steel
  • Dim (H x W x D) 451mm x 282mm x 263mm (17.75” x 11.12” x 10.35”)
  • Net Weight 8.4kg (18.5lbs.) without Transformer 10.4kg (23.0lbs.) with Transformer
