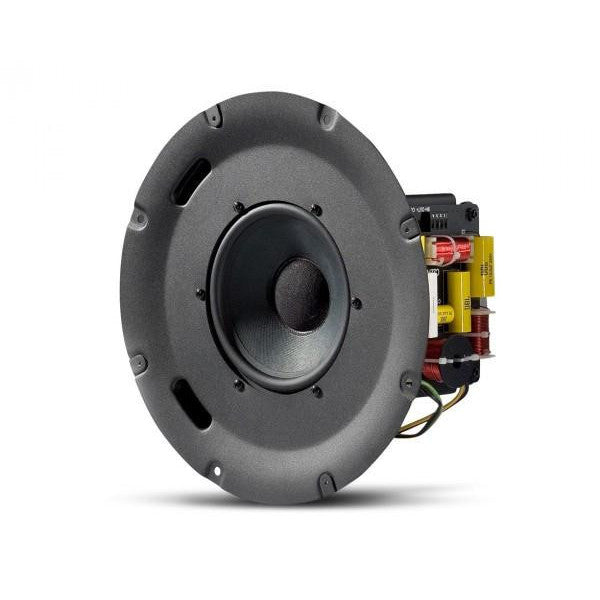

JBL Control 227CT 6.5" Speaker

The JBL Professional Control 227C CT is a premium in-ceiling professional loudspeaker designed for applications requiring superior quality sound in-ceiling mount applications.

Main Features

• JBL Control 227CT In-Ceiling Speaker Backcan
• Consistent 120deg broadband pattern control for exceptional coverage
• Features Kevlar-reinforced 165 mm (6.5 in) woofer
• 25 mm (1 in) compression driver
• With 150 Watts power handling
• Advanced high-slope crossover network for constant coverage
• Priced and Sold Individually

Product Specifications

General

• Frequency Range (-10 dB): 43 Hz - 19 kHz
• 70/100 Volt taps: 68W, 34W, 17W (plus 8.5W at 70V)
• Nominal Sensitivity:
  • 90 dB measured half-space
  • 95 dB computed for competitive comparison
• Coverage: 120 degrees
• Frequency Response (-3 dB): 75 Hz - 17 kHz
• Low Frequency: 165 mm (6.5 in) Kevlar reinforced cone
• High Frequency: 25 mm (1 in) exit compression driver

Physical & Dimensions

• Diameter: 305mm (12 in)
• Depth from Back of Baffle: 147mm (5.8 in)

Manufacturer: JBL
