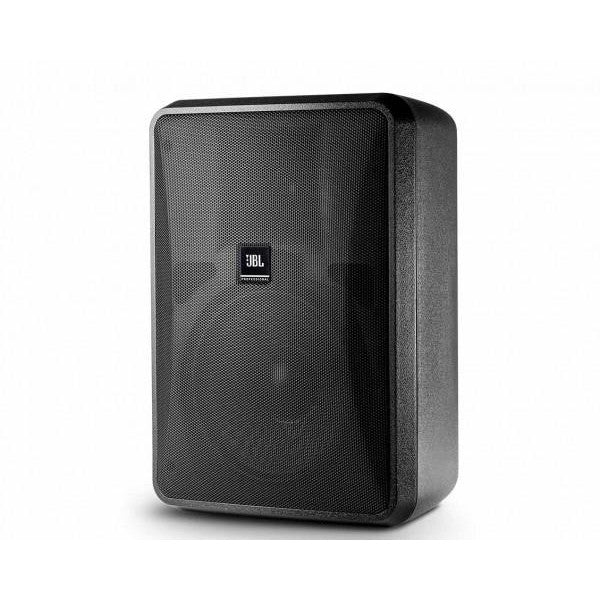

JBL Control 28-1 8" Speaker

The Control® 28-1 is a two-way 8” speaker with rich sonic character, wide coverage, consistent coverage, versatile mounting, and a contemporary high-design look that fits into a wide range of decors.

This makes Control 28-1 an excellent choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality high-output indoor/outdoor foreground/background music (and/or paging) speaker is required.

Main Features

• JBL Control 28-1 Two-Way Speaker and Bracket (Black)
• 8" woofer with woven fibreglass cone
• 1" PEI diaphragm tweeter with fluid cooling
• Contemporary, high-design appearance
• Built-in InvisiBall mounting hardware
• Wide 100 x 100 deg coverage
• Priced and Sold Individually

Product Specifications

General

• Frequency Range (-10 dB): 45 Hz to 20 kHz
• Frequency Response (+/-3 dB): 62Hz - 16 kHz
• Power Rating:
  • 240 W Continuous Program (2 hrs)
  • 120 W (480W peak), Continuous Pink Noise (2 hrs)
  • 90 W (360W peak) Continuous Pink Noise (100 hrs)
• Maximum Input Voltage: 27.5 V RMS (2 hrs), 55.0 V peak
• Maximum SPL: 112 dB ave. Continuous Pink Noise (118 dB peak)
• Sensitivity: 91 dB, 1W/1m (ave. 100 Hz – 10 kHz)
• Coverage Angle: 100° x 100°
• Directivity Factor (Q): 7.3 (averaged 1kHz – 16kHz)
• Directivity Index (DI): 8.3dB (averaged 1kHz – 16kHz)
• Nominal Impedance: 8 ohms (THRU setting)
• Crossover Type: 2nd order low-pass, 1st order high-pass, plus conjugate shaping
• Transformer Taps:
  • 70V: 60W, 30W, 15W, 7.5W
  • 100V: 60W, 30W, 15W
  • Insertion Loss: <0.94 dB at any tap setting
  • Thru Setting: 8Ω nominal
• Recommended Protective High-Pass: 45 Hz high-pass (24 dB/oct) for 8Ω operation plus 15W and 7.5W taps; 55 Hz for 30W tap; 65 Hz for 60W tap.
• Low Frequency Driver: 200 mm (8 in), woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp fiberglass voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure.
• High Frequency Driver: 25 mm (1 in) PEI diaphragm, low-viscosity ferro-magnetic fluid, and lightweight Kapton™ voice coil former.
• Enclosure Material: High Impact Polystyrene (HIPS) with 10% glass fill, painted with highly-UV resistant paint on white (-WH) version for maximum UV fade resistance.
• Grille: Highly zinc-plated, finished in durable TGIC polyester powdercoating. MTC-28WMG-1 (&-WH) available with WeatherMax™ multi-layer foam and tight-weave mesh vapor barrier backing.
• Installation: InvisiBall wall-mounting system included. Two 6 mm attachment points (on top and bottom) for optional MTC-28WMG-1 (&-WH) U-bracket. Secondary safety attachment loop point on back panel.
• Environmental: IP-44 per IEC529 (IP-55 when installed with the optional MTC-28WMG-1 WeatherMax™ grille and either MTC-PC2 or MTC-PC3 panel cover.) Exceeds MilSpec 810 for humidity, salt-spray, temperature & UV. Passes MilStd-202F for salt spray and ASTM G85 for acid-air plus salt spray. Optional MTC-28WMG-1 WeatherMax™ grille for breaking up driving rain and for especially difficult environments.
• Termination: Screw-down terminal strip, zinc-plated copper based, nickel-plated metal screws and washers. Accepts up to 9 mm outside 4 mm inside open lugs (#6, #8, or #10 lug), plus bare wire (up to 12 AWG / 2.5 mm2). Optional MTC-PC2 and MTC-PC3 protective panel covers available to provide sealed entrance for additional weather protection.
• Agency Rating: ROHS-compliant; Transformer UL Recognized per UL1876

Physical & Dimensions

• Height: 386mm
• Width: 282mm
• Depth: 219mm
• Deep total when mounted on InvisiBall wall-mount bracket: 277mm
• Net Weight: 6.8 kg (15.0 lbs)

Manufacturer: JBL
