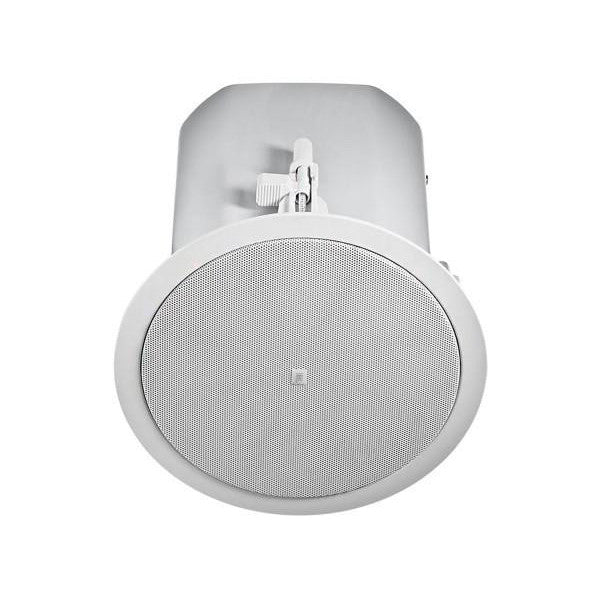

JBL Control 45C/T 5.25" Speaker

Description

The Control 45C/T is a premium in ceiling professional loudspeaker designed for applications that can benefit from extremely wide bandwidth and very consistent coverage from a ceiling speaker with a small footprint.

Main Features

  • JBL Control 45C/T Two-Way 5.25" Coaxial Ceiling speaker
  • Extremely consistent 120deg coverage
  • Featuring JBL's exclusive conical Radiation Boundary Integrator
  • Coaxial design
  • Bass extension down to 55 Hz
  • Integrated backcan for easy
  • Priced and Sold Individually

Product Specifications

General

  • Frequency Range (-10 dB): 55 Hz – 20 kHz
  • Frequency Response (+/-3 dB): 80 Hz – 17 kHz
  • Power Capacity:
    • 150 Watts Continuous Program Power
    • 75 Watts Continuous Pink Noise
  • Nominal Sensitivity (2.83V/1m): 88 dB
  • Nominal Coverage Angle: 120° conical coverage
  • Directivity Factor (Q): 5.6
  • Directivity Index (DI): 7.3 dB
  • Rated Maximum SPL: 107 dB @ 1 m (3.3 ft) average, 113 dB peak
  • Rated Impedance: 8 ohms (in bypass mode)
  • Transformer Taps: 60W, 30W, 15W, (& 7.5W @ 70V)
  • Transformer Insertion Loss: 0.76 dB @ 60W, 0.70 dB @ 30W, 0.61 dB @ 15W, 0.58 dB @ 7.5W
  • LF Driver: 130 mm (5.25 in) polypropylene-coated paper cone with butyl rubber surround, 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil former.
  • HF Driver: 20 mm (0.75 in) soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former.
  • Input Connectors:
    • Two removable locking 2-pin connectors with screw-down terminals. Max wire 12 AWG (2.5 mm).
    • Key: 1) + in, 2) - in, A)+ loop thru, B) - loop thru
  • KnockoutsTwo (top, and side)
  • Safety Agency: Suitable for use in air handling spaces per UL1480 Speakers for Fire Alarm, Emergency and Commercial and Professional Use, complies with UL-2043 Fire Tests for Heat and Visible Smoke Release for Discrete Products, CUL, NFPA-70, NFPA- 90A Installation of Air Conditioning and Ventilation Systems. In accordance with the requirements of IEC60849/EN60849.

Physical & Dimensions

  • Diameter: 250mm
  • Mounting Depth: 239mm
  • Cutout Size: 220mm
  • Ceiling Thickness Range: Accommodates tiles / drywall up to 70 mm (2.75 in) thick
  • Net Weight: 3.9 kg (8.6 lb)
  • Shipping Weight: 8.6 kg (19.0 lb), pair pack

Manufacturer: JBL

Related Collections:

Product form

SKU: JBL-CONTROL-45C-T

Out of stock

£361.00 Incl. VAT

    Delivery informationDelivery information

    There is a free standard delivery option for most UK orders as well as a £2.99 option which means your order will arrive faster than normal.

    For standard delivery your order should arrive within 2-5 working days. For the faster option it should be 1-3 working days.

    If you're from Northern Ireland there will be a £5 surcharge for heavier items. If you're buying a light item (under 2kg) please let us know as we may be able to refund your postage after the purchase.

    Buy now pay laterBuy now pay later

    Paypal Pay in 3 lets you spread your purchase interest free over 3 separate payments.

    If you'd like to use Paypal Pay in 3, please perform the following steps.

    1. Add the item to your cart as normal.

    2. Check out with Paypal.

    3. Log into Paypal.

    4. You should see a screen detailing the item costs. Scroll down and you should see an option for "Pay in 3".

    5. Continue the checkout process.

    1/3 of the purchase price will be taken immediately and then the rest over the next 2 months the rest of the payment will be taken.

    Please see more info about the service here.

    As with any sort of buy now pay later, please only use this service for added convenience when making a bigger purchase. It should only be used if you're 100% sure you can make all of the payments on time.

    Description

    The Control 45C/T is a premium in ceiling professional loudspeaker designed for applications that can benefit from extremely wide bandwidth and very consistent coverage from a ceiling speaker with a small footprint.

    Main Features

    • JBL Control 45C/T Two-Way 5.25" Coaxial Ceiling speaker
    • Extremely consistent 120deg coverage
    • Featuring JBL's exclusive conical Radiation Boundary Integrator
    • Coaxial design
    • Bass extension down to 55 Hz
    • Integrated backcan for easy
    • Priced and Sold Individually

    Product Specifications

    General

    • Frequency Range (-10 dB): 55 Hz – 20 kHz
    • Frequency Response (+/-3 dB): 80 Hz – 17 kHz
    • Power Capacity:
      • 150 Watts Continuous Program Power
      • 75 Watts Continuous Pink Noise
    • Nominal Sensitivity (2.83V/1m): 88 dB
    • Nominal Coverage Angle: 120° conical coverage
    • Directivity Factor (Q): 5.6
    • Directivity Index (DI): 7.3 dB
    • Rated Maximum SPL: 107 dB @ 1 m (3.3 ft) average, 113 dB peak
    • Rated Impedance: 8 ohms (in bypass mode)
    • Transformer Taps: 60W, 30W, 15W, (& 7.5W @ 70V)
    • Transformer Insertion Loss: 0.76 dB @ 60W, 0.70 dB @ 30W, 0.61 dB @ 15W, 0.58 dB @ 7.5W
    • LF Driver: 130 mm (5.25 in) polypropylene-coated paper cone with butyl rubber surround, 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil former.
    • HF Driver: 20 mm (0.75 in) soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former.
    • Input Connectors:
      • Two removable locking 2-pin connectors with screw-down terminals. Max wire 12 AWG (2.5 mm).
      • Key: 1) + in, 2) - in, A)+ loop thru, B) - loop thru
    • KnockoutsTwo (top, and side)
    • Safety Agency: Suitable for use in air handling spaces per UL1480 Speakers for Fire Alarm, Emergency and Commercial and Professional Use, complies with UL-2043 Fire Tests for Heat and Visible Smoke Release for Discrete Products, CUL, NFPA-70, NFPA- 90A Installation of Air Conditioning and Ventilation Systems. In accordance with the requirements of IEC60849/EN60849.

    Physical & Dimensions

    • Diameter: 250mm
    • Mounting Depth: 239mm
    • Cutout Size: 220mm
    • Ceiling Thickness Range: Accommodates tiles / drywall up to 70 mm (2.75 in) thick
    • Net Weight: 3.9 kg (8.6 lb)
    • Shipping Weight: 8.6 kg (19.0 lb), pair pack

    Manufacturer: JBL
