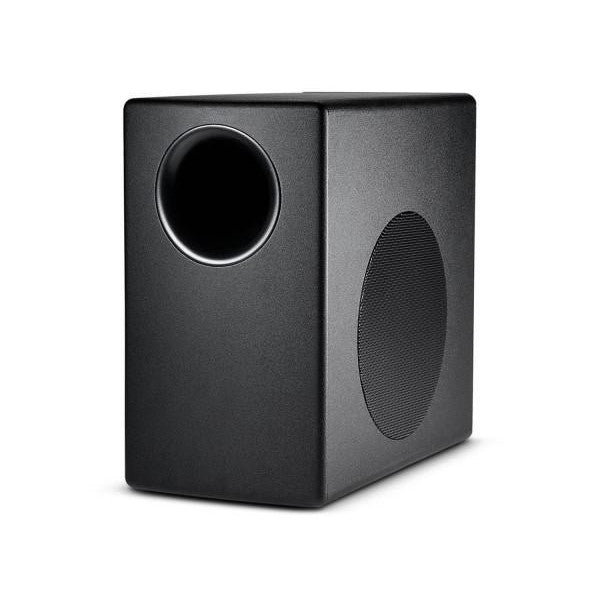

JBL Control 50S/T 8" Surface Sub

The 150 Watt (600 Watt peak) Control 50S/T subwoofer contains a high-power, long-excursion, 200 mm (8 inch) driver which features an extremely robust high-mass cone for extended low frequency response, a 38 mm (1.5 in) 4-layer copper voice coil for high motor strength, an aluminium former for good transient response, and a rubber half roll surround for enhanced bass performance.

Main Features

• Stylish, unobtrusive design fits into a wide variety of decors
• High fidelity sound
• Selectable 70V/100V for distributed lines, or low impedance
• Versatility for either two or four satellite speakers per system
• Ability to mix and match with Control Contractor40 Series models
• Wall-mount brackets included
• Priced and Sold Individually

Product Specifications

General

• Frequency Range (-10 dB): 32 Hz – 200 Hz
• Frequency Response (±3 dB): 50 Hz – 150 Hz
• Power Capacity:
  • 300 Watts Continuous Program Power (2 hrs)
  • 150 Watts Continuous Pink Noise (2 hrs)
  • 200 Watts Continuous Program Power (100 hrs)
  • 100 Watts Continuous Pink Noise (100 hrs)
• Nominal Sensitivity (2.83V, 1m): 95 dB (near corner), 89 dB (center of wall)
• Rated Maximum SPL (1m):
  • 115 dB average, 121 dB peak (near corner)
  • 109 dB average, 115 dB peak (center of wall)
• Nominal Impedance: 8 ohms (in bypass/thru mode)
• Transformer Taps: 80W, 40W, 20W, (& 10W @ 70V), 8 ohm bypass/thru
• Transducer Driver: 200 mm (8 in) with polypropylene cone, butyl rubber surround, 38 mm (1.5 in) 4-layer copper-clad coil, vented aluminum former
• Input Connectors: Six removable locking 2-pin connectors with screw-down terminals. Max wire 12 AWG (2.5 mm2)
• Material: Top, bottom, front & bottom: Structural plywood. Port & terminal panels: MDF. Grille: Painted zinc-plated metal.

Physical & Dimensions

• Cabinet Height: 356mm
• Cabinet Width: 391mm
• Cabinet epth: 203mm
• Wall Bracket: 15mm deep
• Wall Bracket: 2.3mm thick zinc-plated and painted cold-rolled steel
• Weight: 9.0 kg

Manufacturer: JBL
