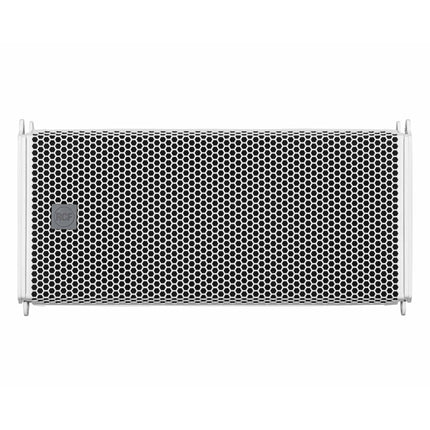

RCF HDL 6-A Line Array Module White

Description

The HDL6-A in white is the ideal choice when line array performance is needed and a fast and easy set-up a must.

A 1400 W 2-channel class-D amplifier powers the system. A powerful DSP processes the sound including crossover, phase correction, limiting and protection.

The system features state-of-the-art RCF transducers – two powerful 6.0” woofers for a solid bass reproduction plus a high powered 1.7” voice coil compression driver mounted on a precise 100° x 10° waveguide delivers vocal clarity with high definition and an incredible dynamic.

FEATURES:

  • 1400 W, two-way amplification
  • 131 dB max SPL
  • 1.7" voice coil neodymium compression driver
  • 2 x high power neodymium 6.0" woofers
  • 48 kHz, 32 bit floating point DSP processing
  • Symmetrical design
  • Extremely low weight
  • FiRPHASE processing

SPECIFICATION:

  • Frequency Response: 65 Hz - 20000 Hz
  • Max SPL @ 1m: 131 dB
  • Horizontal coverage angle: 100°
  • Vertical coverage angle: 10°
  • Compression Driver: 1.0'' neo, 1.75'' v.c
  • Woofer: 2 x 6.0'' neo, 2.0'' v.c
  • Input signal: bal/unbal
  • Input connectors: XLR
  • Output connectors: XLR
  • Input sensitivity: +4 dBu
  • Crossover Frequencies: 900 Hz
  • Protections: Thermal, RMS
  • Limiter: Soft Limiter
  • Controls: HF correction
  • Total Power: 1400 W Peak, 700 W RMS
  • High frequencies: 400 W Peak, 200 W RMS
  • Low frequencies: 1000 W Peak, 500 W RMS
  • Cooling: Convection
  • Connections: Powercon IN/OUT
  • CE marking: Yes
  • Cabinet/Case Material: PP Composite
  • Hardware: Array fittings
  • Handles: 2 Back
  • Grille: Steel
  • Color: White

Physical & Dimensions

  • Height: 237mm
  • Width: 470mm
  • Depth: 377mm
  • Weight: 11.6kg
Manufacturer: RCF

Related Collections:

Product form

SKU: RCF-HDL-6-A-WHITE

Out of stock

£1,325.00 Incl. VAT

    Delivery informationDelivery information

    There is a free standard delivery option for most UK orders as well as a £2.99 option which means your order will arrive faster than normal.

    For standard delivery your order should arrive within 2-5 working days. For the faster option it should be 1-3 working days.

    If you're from Northern Ireland there will be a £5 surcharge for heavier items. If you're buying a light item (under 2kg) please let us know as we may be able to refund your postage after the purchase.

    Buy now pay laterBuy now pay later

    Paypal Pay in 3 lets you spread your purchase interest free over 3 separate payments.

    If you'd like to use Paypal Pay in 3, please perform the following steps.

    1. Add the item to your cart as normal.

    2. Check out with Paypal.

    3. Log into Paypal.

    4. You should see a screen detailing the item costs. Scroll down and you should see an option for "Pay in 3".

    5. Continue the checkout process.

    1/3 of the purchase price will be taken immediately and then the rest over the next 2 months the rest of the payment will be taken.

    Please see more info about the service here.

    As with any sort of buy now pay later, please only use this service for added convenience when making a bigger purchase. It should only be used if you're 100% sure you can make all of the payments on time.

    Description

    The HDL6-A in white is the ideal choice when line array performance is needed and a fast and easy set-up a must.

    A 1400 W 2-channel class-D amplifier powers the system. A powerful DSP processes the sound including crossover, phase correction, limiting and protection.

    The system features state-of-the-art RCF transducers – two powerful 6.0” woofers for a solid bass reproduction plus a high powered 1.7” voice coil compression driver mounted on a precise 100° x 10° waveguide delivers vocal clarity with high definition and an incredible dynamic.

    FEATURES:

    • 1400 W, two-way amplification
    • 131 dB max SPL
    • 1.7" voice coil neodymium compression driver
    • 2 x high power neodymium 6.0" woofers
    • 48 kHz, 32 bit floating point DSP processing
    • Symmetrical design
    • Extremely low weight
    • FiRPHASE processing

    SPECIFICATION:

    • Frequency Response: 65 Hz - 20000 Hz
    • Max SPL @ 1m: 131 dB
    • Horizontal coverage angle: 100°
    • Vertical coverage angle: 10°
    • Compression Driver: 1.0'' neo, 1.75'' v.c
    • Woofer: 2 x 6.0'' neo, 2.0'' v.c
    • Input signal: bal/unbal
    • Input connectors: XLR
    • Output connectors: XLR
    • Input sensitivity: +4 dBu
    • Crossover Frequencies: 900 Hz
    • Protections: Thermal, RMS
    • Limiter: Soft Limiter
    • Controls: HF correction
    • Total Power: 1400 W Peak, 700 W RMS
    • High frequencies: 400 W Peak, 200 W RMS
    • Low frequencies: 1000 W Peak, 500 W RMS
    • Cooling: Convection
    • Connections: Powercon IN/OUT
    • CE marking: Yes
    • Cabinet/Case Material: PP Composite
    • Hardware: Array fittings
    • Handles: 2 Back
    • Grille: Steel
    • Color: White

    Physical & Dimensions

    • Height: 237mm
    • Width: 470mm
    • Depth: 377mm
    • Weight: 11.6kg
    Manufacturer: RCF
