RCF L2406 Speaker Column Array (White)

Description

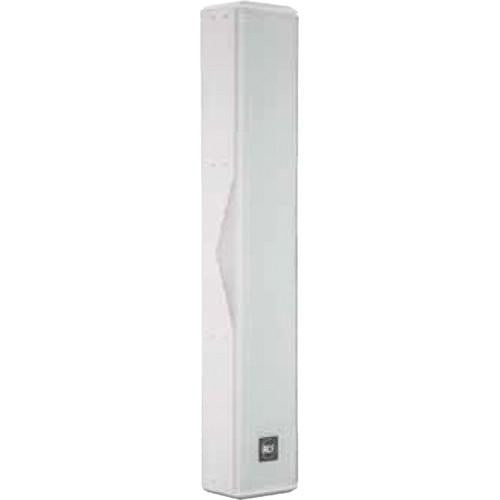

The L2406 in white is a full range high intelligibility compact 3 way column speaker array with vertical controlled directivity for medium to large size installations.

It is equipped with six 5" woofers and four 1" dome tweeters mounted in front of the two central woofers. This particular design permits coherent sound dispersion minimising lobing in a very compact enclosure.

The two central woofers are controlled differently from the other four because of the tweeters in front of them, in order to improve the directivity providing a true cardioid column operation.The wide coverage horizontal angle and the controlled vertical dispersion allow correct sound reproduction serving a wide area and assistance in limiting feedback and reverberated sound.

A speech filter can be activated for enhancing the voice frequencies and improving speech intelligibility. The crossover is designed to avoid secondary lobing creation. Mounting accessories are provided and are designed to keep the column as close as possible to the wall and simplify the installation allowing suitable tilting.

The L2406 can be used connected to a low impedance amplifier to handle 200 W RMS power. It also includes a 60 W line transformer for 100 V systems. The crossover is equipped with a circuit to protect the four 1" dome tweeters.

FEATURES
  • High efficiency
  • Six 5" woofers and four 1" dome tweeters
  • Controlled dispersion
  • Speech enhancer filter
  • LICC (Low Impedance Compensated Crossover)
  • Tweeters protection circuit
  • Built-in wall mounting accessories to
  • 200W at 8 Ohm; 60W line transformer included
SPECIFICATIONS
  • Frequency Response -10 dB:100 Hz ÷ 20000 Hz
  • Max SPL @ 1m:126 dB
  • Horizontal coverage angle:150°
  • Vertical coverage angle:30°
  • Directivity index; Q:9.25
  • System Sensitivity:97 dB
  • Nominal Impedance:8 Ω
  • Power Handling:200 W
  • Peak Power Handling:800 W
  • Recommended Amplifier:400 W
  • Protections:Dynamic
  • Crossover frequencies:2000 Hz
TRANSDUCERS
  • Compression Driver:4 X 1" HF driver, 1" voice coil
  • Nominal Impedance:8 Ω
  • Input Power Rating:10 W AES
  • Sensitivity:90T dB
  • Woofer:6 X 5" woofer, 1" voice coil
  • Nominal Impedance:8 Ω
  • Input Power Rating:30 W AES
  • Sensitivity:90 dB
INPUT SECTION
  • Input connector:Euroblock
CABINET
  • Cabinet Material:9 mm birch plywood construction
  • Hardware:4x M5 inserts
  • Grille:Custom perforated steel grille
  • Colour:Black, white, scratch resistant paint
PHYSICAL SPECIFICATIONS
  • Height:826 / 32.52 mm/inch
  • Width:135 / 5.31 mm/inch
  • Depth:140 / 5.51 mm/inch
  • Net Weight:11.5 / 25.35 kg/lbs

Manufacturer: RCF
