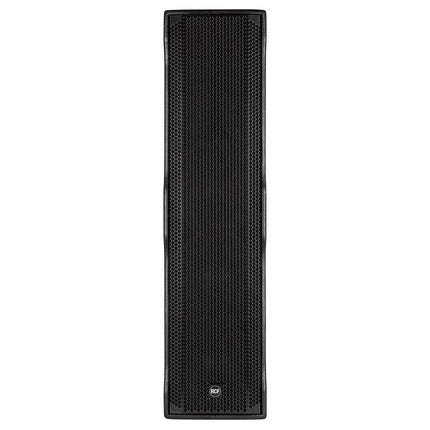

RCF NXL 44-A Active Column Speaker

Description

The RCF NXL 44-A provides a unique and powerful two-way line source, with the sound delivered from three 10” neodymium woofers and a 1.4” driver with 3“ voice coil on an asymmetrical waveguide.

All are perfectly tuned to deliver remarkably uniform coverage and an extended frequency range.

Precision controlled by an onboard DSP and driven by a two-channel digital amp, the NXL44-A delivers very natural sounding response and high SPL for professional live sound reinforcement.

The horn’s design is asymmetrical so it projects sound energy with great accuracy, thereby avoiding undesired reflections. The enclosure always remains vertical - it does not have to be tilted or aimed in any way that would adversely affect its stability.

FEATURES:

  • Digital bi-amped amplifier with a 1400-Watt peak power
  • 90° x 30° directivity (+5°, -25°)
  • 3 x 10" neo woofer
  • 1.4" compression neo driver, 3.0" voice coil with a waveguide
  • DSP Processing with optimised phase response
  • Scalable
  • Easy to fly and install with built-in rigging points

SPECIFICATION:

General:

  • Acoustical Specifications
    • Frequency Response: 45 Hz ÷ 20000 Hz
    • Max SPL @ 1m: 134 dB
    • Horizontal coverage angle: 90°
    • Vertical coverage angle: 30°
    • Transducers Compression Driver: 1.4'' neo, 3.0'' v.c
    • Woofer: 3 x 10'' neo, 2.5'' v.c
  • Input/Output
    • Input signal: balanced/unbalanced
    • Input connectors: XRL, Jack
    • Output connectors: XLR
    • Input sensitivity: -2 dBu/+4 dBu
  • Processor Section
    • Crossover Frequencies: 800 Hz
    • Protections: Thermal, RMS
    • Limiter: Soft Limiter
    • Controls: Volume, EQ Shape, Mic/Line
  • Power Section
    • Total Power: 1400 W Peak, 700 W RMS
    • High frequencies: 400 W Peak, 200 W RMS
    • Low frequencies: 1000 W Peak, 500 W RMS
    • Cooling: Convection
    • Connections: Powercon IN/OUT
  • Standard Compliance
    • CE Marking: Yes
  • Cabinet
    • Cabinet/Case Material: Baltic birch plywood
    • Hardware: 4 x M8, 4 x quick lock, 2 x pole mount
    • Handles: 2 side
    • Pole Mount/Cap: Yes
    • Grille: Steel
    • Colour: Black

Physical & Dimensions:

  • Height: 1198 mm / 47.17 inches
  • Width: 303 mm / 11.93 inches
  • Depth: 402 mm / 15.83 inches
  • Weight: 34.5 kg / 76.06 lbs

Manufacturer: RCF
