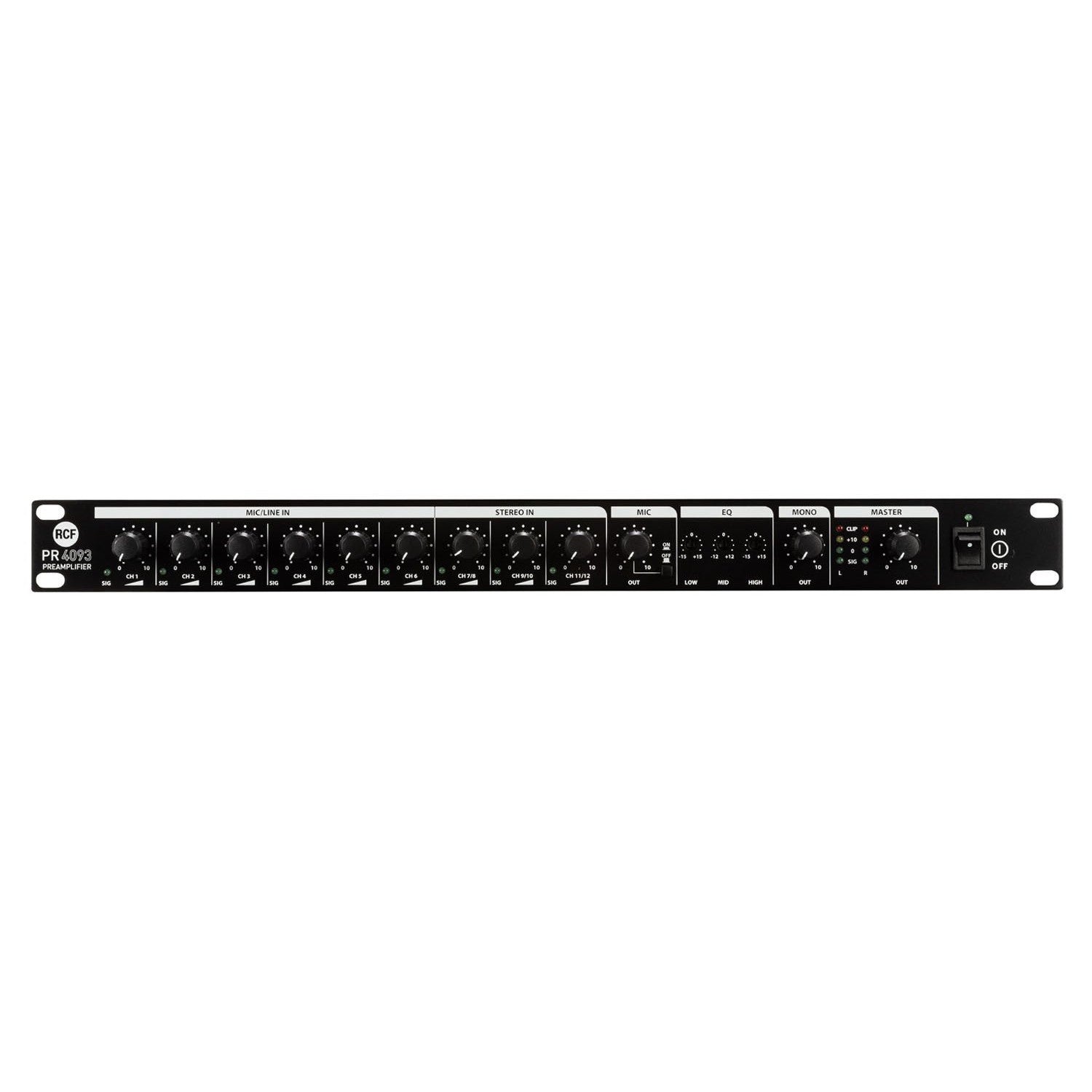

RCF PR 4093 Rack Mixer

Description

The RCF PR 4093 has been designed to provide a flexible solution for paging and music application in PA systems.

It offers 6 balanced inputs mic/line with phantom facility, the first of them with priority triggered by VOX circuit. In addition, 3 stereo input on RCA connectors are available.

Outputs offer different functionalities, included tone control on front panel, dedicated mixing of inputs 1-6 e connection to recording devices.

FEATURES:

  • 6 balanced XLR inputs with MIC/LINE sensibility and selectable PHANTOM power
  • 3 stereo inputs on RCA connectors
  • SIGNAL presence LED for each input
  • Priority function on input 1, activatable through VOX circuit
  • 1 XLR stereo output with tone control LOW, MID, HIGH on front panel
  • 1 MONO output on ¼'' jack connector
  • 1 MIC output on ¼'' jack connector
  • Connection to recording device on RCA connectors
  • LED output level indicator
  • 230V AC functioning and 24V DC emergency power supply
  • Suitable for rack installation (1U 19")

SPECIFICATION:

General

  • Mono Inputs (CHANNELS 1 TO 6, BALANCED)
    • Frequency Response:20 ÷ 22 Hz ÷ kHz
    • Distortion (THD & N):≤ 0.03% at 1 kHz
    • Sensitivity:–40 dBu (MIC) / 0 dBu (LINE)
    • Max. input level:–19 dBu (MIC) / +21 dBu (LINE)
    • Input impedance:2 kΩ (MIC) / 19.5 kΩ (LINE)
    • Max. voltage gain (MIC):60 dB to LINE OUT (balanced), 50 dB to REC OUT (unbalanced), 60 dB to MIC OUT (unbalanced), 55 dB to MONO OUT (unbalanced)
    • Max. voltage gain (LINE):20 dB to LINE OUT (balanced), 10 dB to REC OUT (unbalanced), 20 dB to MIC OUT (unbalanced), 15 dB to MONO OUT (unbalanced)
    • Phantom power voltage:18÷21 V
  • Stereo Inputs (CHANNELS 7/8, 9/10, 11/12)
    • Frequency response:20 ÷ 22 Hz ÷ kHz
    • Distortion (THD & N):≤ 0.03% at 1 kHz
    • Sensitivity:+10 dBu
    • Max. input level:+21 dBu
    • Input impedance:19.5 kΩ
    • Max. voltage gain (LINE):10 dB to LINE OUT (balanced), 0 dB to REC OUT (unbalanced), 0 dB to MONO OUT (unbalanced)
  • Output Section
    • LINE OUT level:0 dBu (± 2 dBu, balanced), max. +21 dBu
    • MIC OUT / MONO OUT level:0 dBu (± 2 dBu, unbalanced), max. +21 dBu
    • LINE OUT impedance:250 Ω
    • MIC OUT / MONO OUT impedance:125 Ω
  • Equalizer
    • Low:±15 dB at 80 Hz
    • Mid:±12 dB at 2.5 kHz
    • High:±15 dB at 8 kHz
  • Crosstalk
    • Adjacent stereo inputs:< –68 dB
    • Input to output:< –76 dB at 1 kHz (ch. level at max., flat eq., LINE OUT level and others at min., MIC OUT switch set to OFF
  • Power Supply
    • Operating voltage:220÷240 V ac (50 Hz), 24 V dc

Physical & Dimensions

  • Height: 110mm
  • Width: 560mm
  • Depth: 380mm
  • Weight: 3.6kg

Manufacturer: RCF
