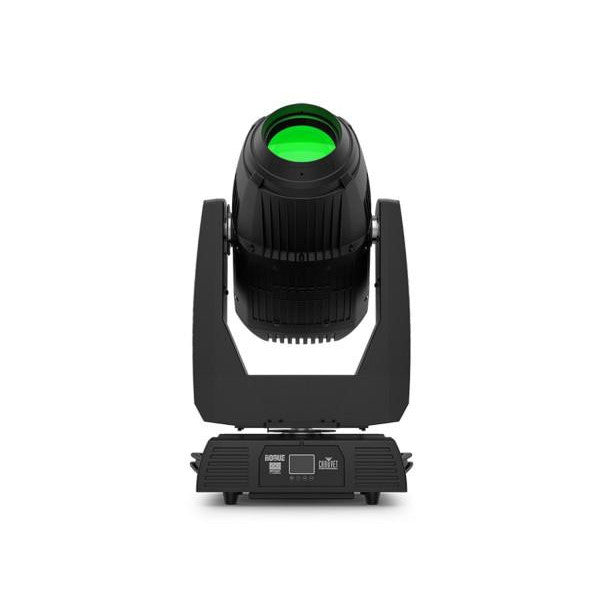

Rogue Outcast 1 BeamWash Moving Head with RGB LED Ring IP65

Rogue Outcast 1 BeamWash is a lightweight, IP65 rated, LED Beam & Wash fixture enhanced with a pixel-mappable LED ring around it’s face. A unique lens design developed for tight beam effects allows for a wide zoom range of 3.9° to 55.3° for maximum coverage. Seven 45W RGBW LED’s combine excellent color mixing with a punchy output featuring 16-bit dimming and several dimming modes for advanced control. The outer ring comprises of 12 pixel-mappable RGB LED zones underneath a smoked stealth filter. Easily create eye-catching effects with prebuilt programs for the ring with the ability to control dimming, rate, foreground and background colors. This compact fixture weighs only 20lbs and features a rugged IP65 casing that is proven to withstand all of the harshest elements. Control as you see fit with multiple profiles with simple and advanced control modes compatible with DMX & RDM protocols. Update software easily with an onboard USB-C port.

FEATURES:

• Fully featured, IP 65 rated, high powered Spot/Beam/Wash combination fixture with an USHIO 400W, 6500K with 6000 Hour life expectancy lamp, 2 gobo wheels, 2 layerable prisms, and linear zoom
• Rugged housing designed to withstand the elements in a temporary outdoor setting
• Individually controllable and layerable 6 facet linear and 8-facet round prisms for maximising visual impact
• Frost and beam flattening options for even light distribution
• Tight 2° narrow beam angle for focused air effects
• Linear zoom of 2 ° to 15° in beam mode, 3.7° to 26.6° in spot mode and 9.3° to 26.1° in wash mode for coverage in any application
• 9 rotating and 13 static gobos for massive visual effect
• DMX and RDM protocol control
• True 1 compatible power input

SPECIFICATION:

OPTICAL

• Light Source: USHIO NSL-400 W lamp, 6632 K, 6,000 hours life expectancy
• Colour Temperature (at full): 6632 K
• Beam Angle: 2° to 13.5° (Spot mode)
• Field Angle: 3.7° to 26.6° (Spot mode)
• Beam Angle: 1° to 5° (Beam mode)
• Field Angle: 2° to 15° (Beam mode)
• Beam Angle: 4.9° to 18.7° (Wash mode)
• Field Angle: 9.3° to 26.1° (Wash mode)
• Zoom Angle (Spot mode): 3.7° to 26.6°
• Zoom Angle (Beam mode): 2 ° to 15°
• Zoom Angle (Wash mode): 9.3° to 26.1°
• Lumens – Source: 14,575
• Lumens – Output: 12,575
• Illuminance (3.7°): 277,135 lux @ 5 m (Spot mode)
• Illuminance (26.6°): 5145 lux @ 5 m (Spot mode)
• Illuminance (2°): 144,000 lux @ 15 m (Beam mode)
• Illuminance (15°): 3210 lux @ 15 m (Beam mode)
• Illuminance (9.3°): 15,090 lux @ 5 m (Wash mode)
• Illuminance (26.1°): 1,337 lux @ 5 m (Wash mode)

DYNAMIC EFFECTS

• Pan and Tilt: 540°/260°
• Pan and Tilt Ranges: 540°, 360°, 180° pan/260°, 180°, 90° tilt
• Colours: 13 + white, split colours, continuous scroll at variable speeds
• Gobos (1): 9 + open (9 glass), continuous scroll at variable speeds
• Gobos (2): 13 + open (13 metal), rotating, interchangeable, indexing, continuous scroll at variable speeds
• Gobo Size: Gobo Wheel 1 (rotating glass): 15.9 mm (outside), 12 mm (image), 1.1 mm (max. thickness)
• Dimmer: Motorised
• Shutter/Strobe: Motorised
• Zoom: Motorised
• Focus: Motorised
• Frost: Motorised
• Prism: 6 Facets, Motorised, rotating
• Prism: 8 Facets, Motorised, rotating
• Move-in-Black: Yes

CONSTRUCTION / PHYSICAL

• Dimensions: 16.22 x 12.20 x 3011 in (412 x 310 x 765 mm)
• Weight: 83.8 lb (38 kg)
• Exterior Colour: Black
• Housing Material: Aluminium die-cast

CONNECTIONS

• Power Connection: Bare-wired to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP rated
• Cable Length (power): 5 ft (1.5 m)

CONTROL

• Control Protocol: DMX, RDM
• DMX Channels: 20 or 25
• Modes/Personalities: 2 personalities (20, 25)

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 514 W, 4.329 A @ 120 V, 60 Hz
• Power and Current: 513 W, 2.501 A @ 208 V, 60 Hz
• Power and Current: 520 W, 2.267 A @ 230 V, 50 Hz

Manufacturer: Chauvet
