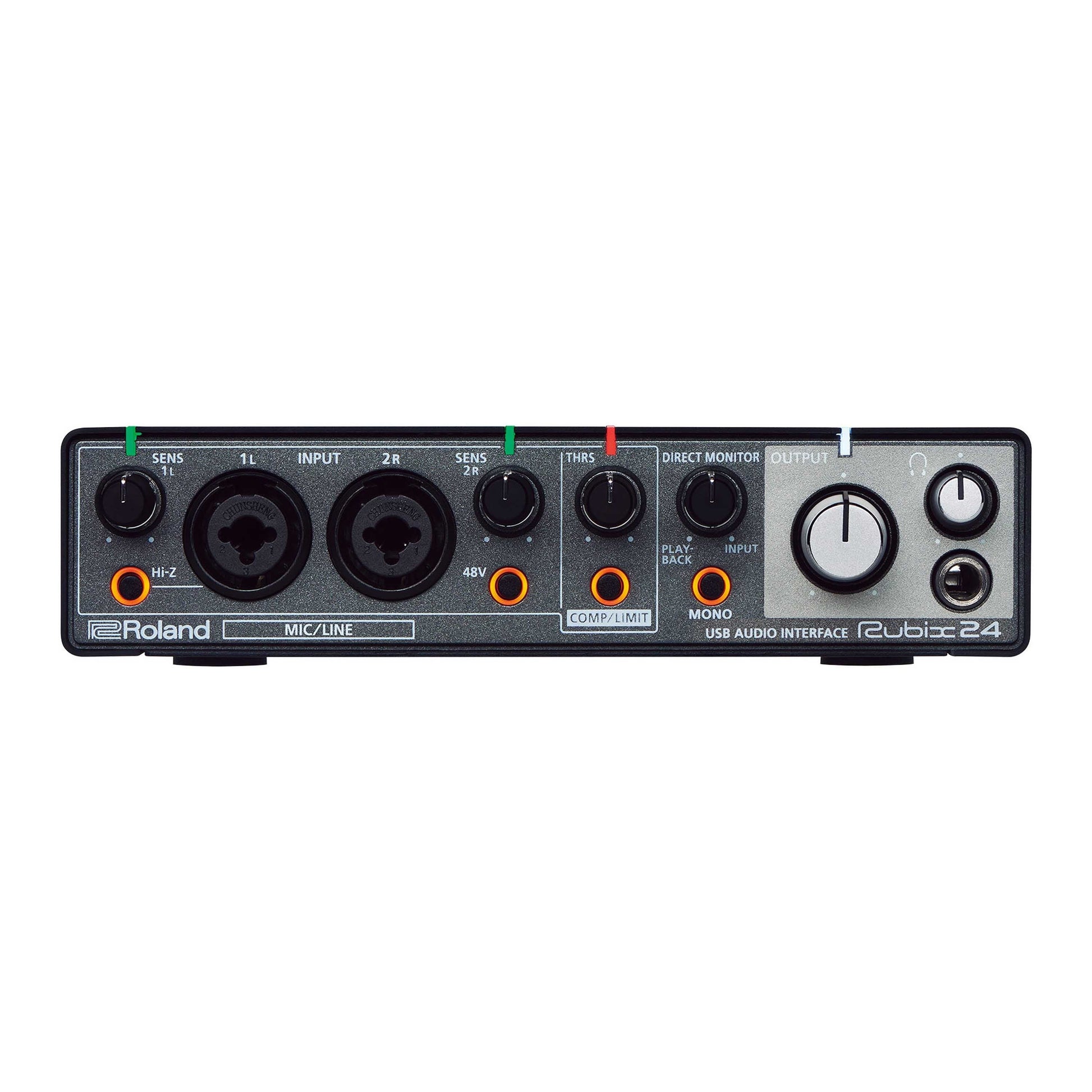

Roland Rubix 24 USB Audio Interface

Description

The Rubix 24 offers a perfect balance of high-fidelity sound, solid build quality, compact size, affordable price, and crucial features for today's musicians and producers.

With support for high-resolution audio up to 24-bit/192kHz, Rubix24 sounds clear and defined and is carefully engineered to have extremely low noise from input to output.

Its near universal USB support means it works seamlessly with Mac and PC computers, and even supports iPads, for the ultimate in portable music production and performance.

FEATURES:

  • 2-in/4-out USB audio interface
  • 2 low-noise mic preamps with XLR combo jacks
  • Hi-Z input for guitar and other high impedance sources
  • Hardware compressor/limiter
  • MIDI In/Out ports
  • Extensively shielded, low-noise design
  • Sturdy and compact metal construction
  • Big, easy-to-read indicators show vital information
  • Low latency, class compliant drivers
  • Ground lifts for quiet operation in a variety of venues
  • Includes Ableton Live Lite

SPECIFICATION:

System

  • Number of Audio Record/Playback Channels:
    • Record: 2 channels
    • Playback: 4 channels
  • Signal Processing:
    • PC interface: 24 bits
    • AD/DA conversion: 24 bits
  • Sampling Frequency:  AD/DA conversion: 44.1 kHz, 48 kHz, 96 kHz, 192 kHz
  • Interface:
    • Hi-Speed USB
    • MIDI IN, OUT
  • Connectors:
    • INPUT (1L, 2R) connectors: XLR type (balanced, phantom power: +48 V, 6 mA Max *1)
    • INPUT (1L, 2R) jacks *2: 1/4-inch TRS phone type (balanced)
    • PHONES jack: Stereo 1/4-inch phone type
    • OUTPUT (1L, 2R) jacks: 1/4-inch TRS phone type (impedance balanced)
    • MIDI (IN, OUT) connectors
    • USB port: USB Type B
    • DC 5V port: USB Type micro B
    • *1 Current value per channel.
    • *2 INPUT 1L supports high impedance
  • Controllers:
    • SENS 1L, 2R knobs
    • Hi-Z switch
    • 48V switch
    • THRS knob
    • COMP/LIMIT switch
    • DIRECT MONITOR knob
    • MONO switch
    • OUTPUT knob
    • PHONES knob
    • LOOPBACK switch
    • COMP/LIMIT TYPE switch
    • GROUND LIFT switch
    • PHONES SOURCE switch
  • Indicator:
    • Level indicators (1L, 2R)
    • Level indicator (COMP/LIMIT)
    • POWER indicator
    • Hi-Z indicator
    • 48V indicator
    • COMP/LIMIT indicator

Characteristics

  • Nominal Input Level:
    • INPUT (1L, 2R) connectors (XLR type): -60-- -12 dBu
    • INPUT (1L, 2R) jacks (1/4-inch TRS phone type): -44--+4 dBu
  • Maximum Input Level:
    • INPUT (1L, 2R) connectors (XLR type): +2 dBu
    • INPUT (1L, 2R) jacks (1/4-inch TRS phone type): +18 dBu
  • Nominal Output Level:  OUTPUT (1L, 2R) jacks: -6 dBu (impedance balanced)
  • Maximum Output Level:  OUTPUT (1L, 2R) jacks: +8 dBu (impedance balanced)
  • PHONES Maximum Output Power:  20 mW + 20 mW (L + R, 47 ohms load)
  • Headroom:  14 dB
  • Input Impedance:
    • INPUT (1L, 2R) connectors (XLR type): 4 k ohms or greater (balanced)
    • INPUT (1L, 2R) jacks (1/4-inch TRS phone type): 15 k ohms or greater (balanced)
    • INPUT (1L) jack (1/4-inch phone type *3): 500 k ohms or greater
    • *3 When the Hi-Z is turned on
  • Output Impedance:
    • OUTPUT (1L, 2R) jacks: 2 k ohms (balanced)
    • PHONES jack: 47 ohms
  • Residual Noise Level:  INPUT (1L, 2R) --> OUTPUT (1L, 2R): -94 dBu typ. (SENS 1L, SENS 2R knobs: min., input terminated with 600 ohms, IHF-A, typ.)
  • Dynamic Range:
    • AD block INPUT (1L, 2R) jacks: 104 dB typ. (SENS 1L, SENS 2R knobs: min.)
    • DA block OUTPUT (1L, 2R, 3L, 4R) jacks: 109 dB typ.

Other

  • Power Supply:  Supplied from the computer via USB, DC 5V
  • Current Draw:  500 mA
  • Operating System:
    • Microsoft(R) Windows(R) 7, Windows(R) 8, Windows(R) 8.1, Windows(R) 10
    • Apple Mac OS X 10.10 or later
    • Apple iOS 9 or later
  • Dimensions:
    • 183 (W) x 165 (D) x 46 (H) mm
    • 7-3/16 (W) x 6-1/2 (D) x 1-13/16 (H) inches
  • Weight (main unit only) :
    • 1.2 kg
    • 2 lbs 11 oz
  • Accessories:
    • Setup Guide
    • Leaflet "USING THE UNIT SAFELY"
    • USB cable
    • Ableton Live Lite Serial Number Card
    • * 0 dBu = 0.775 Vrms

Manufacturer: Roland
