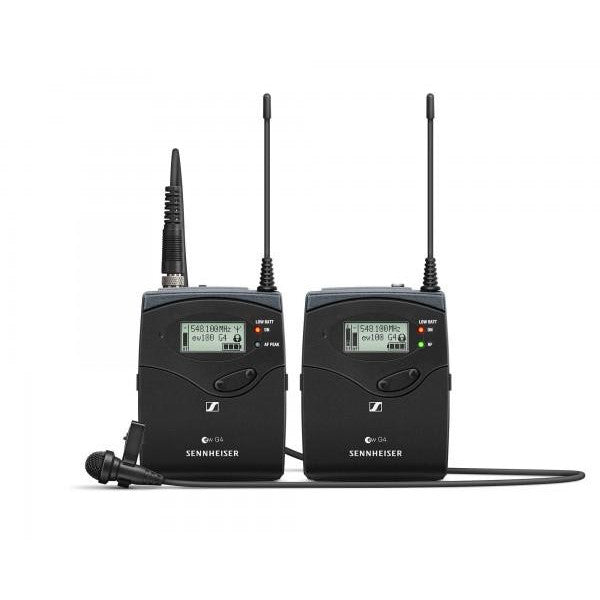

Sennheiser EW 112P G4-GB Lapel System CH38

Description

Make your presentations come to life with the Sennheiser EW112P G4-GB Presentation Wireless Microphone System on Channel 38.

A broadcast quality sound solution. Providing the highest flexibility for your video sound and field recording applications. A robust wireless microphone system that offers excellent sound quality, simple mounting and ease of use.

Rugged all-in-one wireless system with high flexibility for broadcast quality sound, including the clip-on microphone ME 2-II (omni-directional) for excellent speech intelligibility and daily on-location use.

FEATURES:

  • Rugged all-in-one wireless system with high flexibility for broadcast quality sound
  • Excellent sound and construction quality
  • Easy to use and fast setup time
  • Powerful and reliable wireless transmission
  • Range: up to 100 meters / 330 feet
  • Up to 8 hours of operation time
  • On Channel 38

SPECIFICATION:

EK 100 G4 - General

  • Modulation: Wideband FM
  • Frequency ranges
    • GB: 606 - 648 MHz
  • Receiving frequencies
    • Max. 1680 receiving frequencies, adjustable in 25  kHz steps
    • 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
    • 1 frequency bank with up to 12 programmable channels
  • Switching bandwidth: up to 42 MHz
  • Nominal/peak deviation: ±24 kHz / ±48 kHz
  • Receiver principle: Adaptive diversity
  • Sensitivity (with HDX, peak deviation): < 1.6 μV for 52 dBA eff S/N
  • Adjacent channel selection: ≥ 65 dB
  • Intermodulation attenuation: ≥ 65 dB
  • Blocking: ≥ 70 dB
  • Squelch
    • low: 5 dBμV
    • middle: 15 dBμV
    • high: 25 dBμV
  • Pilot tone squelch: Can be switched off
  • Compander system: Sennheiser HDX
  • Signal-to-noise ratio (1 mV, peak deviation): ≥ 110 dBA
  • Total harmonic distortion (THD): ≤ 0.9 %
  • AF output voltage (at peak deviation, 1 kHz AF): 3.5 mm jack socket: +12 dBu (mono, unbalanced)
  • Adjustment range of audio output level: 42 dB, adjustable in steps of 6 dB
  • Temperature range: -10 °C to +55 °C
  • Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
  • Nominal voltage: 3 V battery / 2.4 V rechargeable battery
  • Current consumption: at nominal voltage: typ. 180 mA with receiver switched off: ≤ 25 μA
  • Operating time: Typically 8 h

EK 100 G4 - Physical & Dimensions

  • Height: 82mm
  • Width: 64mm
  • Depth: 24mm
  • Weight: 160g

SK 100 G4 - General

  • Modulation: Wideband FM
  • Frequency ranges
    • GB: 606 - 648 MHz
  • Transmission frequencies
    • Max. 1680 receiving frequencies, adjustable in 25  kHz steps
    • 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
    • 1 frequency bank with up to 12 programmable channels
  • Switching bandwidth: up to 42 MHz
  • Nominal/peak deviation: ±24 kHz / ±48 kHz
  • Frequency stability: ≤ ±15 ppm
  • RF output power at 50 Ω: Max. 30 mW
  • Pilot tone squelch: Can be switched off
  • Compander system: Sennheiser HDX
  • AF frequency response Mic: 80 – 18,000 Hz Line: 25 – 18,000 Hz
  • Signal-to-noise ratio (1 mV, peak deviation): ≥ 110 dBA
  • Total harmonic distortion (THD): ≤ 0.9 %
  • Max. microphone/line input voltage: 3 Veff
  • Microphone/line input impedance: 40 kΩ, unbalanced / 1 MΩ
  • Input capacitance: Switchable
  • Setting range for input sensitivity: 60 dB, adjustable in 3 dB steps
  • Temperature range: -10 °C to +55 °C
  • Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
  • Nominal voltage: 3 V battery / 2.4 V rechargeable battery
  • Current consumption: at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 μA
  • Operating time: Typically 8 h

SK 100 G4 - Physical & Dimensions

  • Height: 82mm
  • Width: 64mm
  • Depth: 24mm
  • Weight: 160g

ME 2

  • Transducer principle: pre-polarised condenser microphone
  • Pick-up pattern: omni-directional
  • Sensitivity (free field, no load) (1 kHz): 20 mV/Pa
  • Max. SPL at 1 kHz: 130 dB
  • Frequency response: "50 to 18,000 Hz (ME 2-II) 30 to 20,000 Hz (ME 2-US)"
  • Equivalent noise level A-weighted (DIN IEC 651): 36 dB
  • Connector: 3.5 mm jack
  • Cable length: approx. 1.60 m
  • Supply voltage: 7.5 V

What's Included:

  • EK 100 G4 camera receiver
  • SK 100 G4 bodypack transmitter
  • ME 2 clip-on microphone
  • 4 AA batteries
  • CA 2 camera adapter
  • CL 1 3.5 mm jack cable
  • CL 100 XLR to 3.5 mm jack adapter cable
  • Quick guide
  • Safety guide
  • Manufacturer declaration sheet

Manufacturer: Sennheiser
