Sennheiser EW 500 G4-KK205-GBW Vocal Set CH38

Description

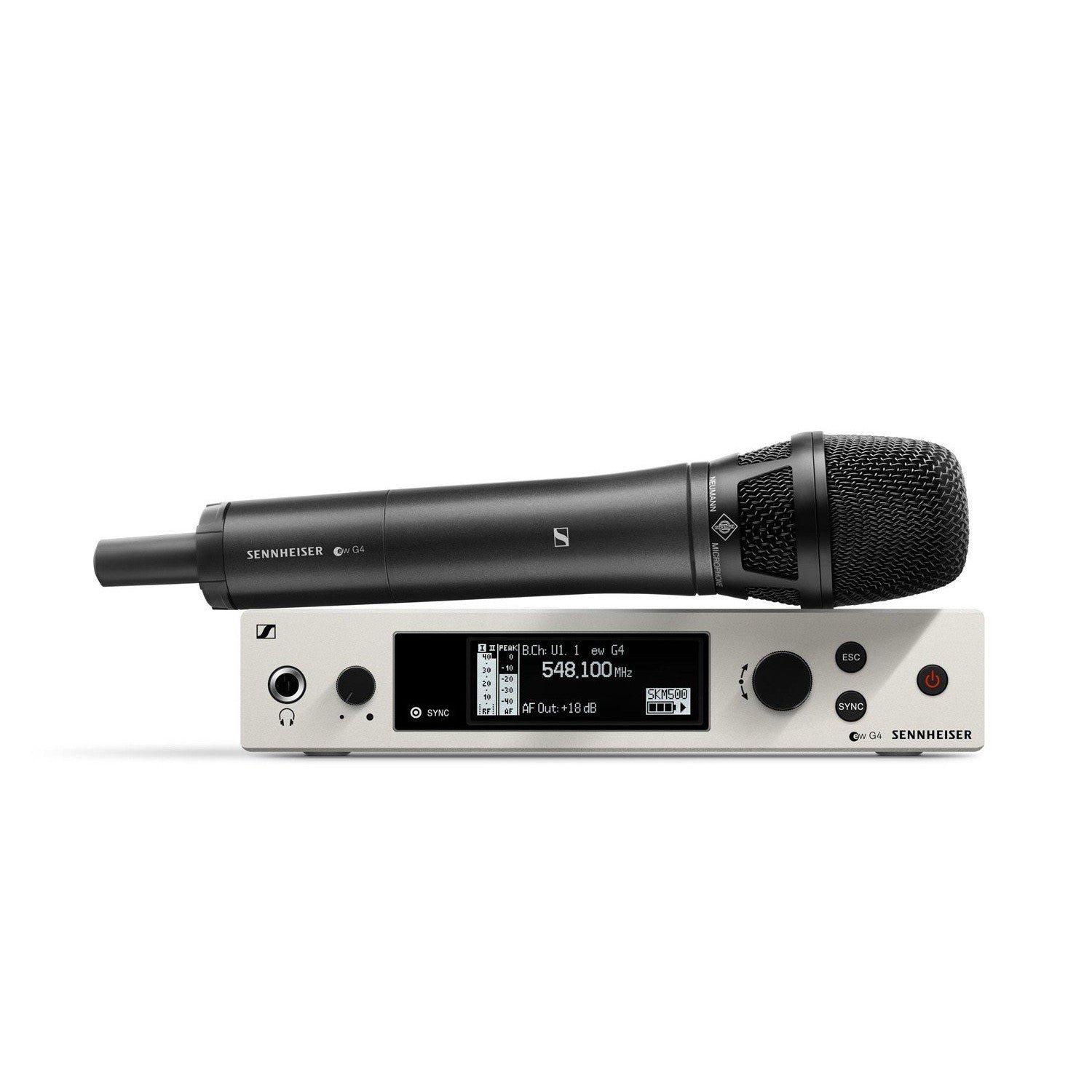

The Sennheiser EW500 G4-KK205-GBW Vocal Set Handheld System on channel 38 combined with the Neumann super-cardioid condenser capsule KK 205 offers a true Neumann sound.

This system provides you the freedom of wireless operation and all the virtues of a rugged stage microphone: excellent pop protection and high feedback resistance.

The ew 500 G4 is highly flexible. Up to 88 MHz bandwidth, up to 32 channels. Ethernet connection for Wireless Systems Manager (WSM) control software included for advanced frequency coordination in multi-channel setups.

Features:

  • True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control
  • Easy and flexible wireless synchronisation between transmitter and receiver via infrared
  • Up to 32 compatible channels
  • Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
  • Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
  • High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations
  • Neumann KK 205 bk Supercardioid condenser capsule head for Sennheiser wireless systems
  • GBw: 606 - 678 MHz Channel 38

Specifications:

EM 300-500 G4

  • Dimensions:  Approx. 202 x 212 x 43 mm
  • Compander: Sennheiser HDX
  • THD, total harmonic distortion:  ≤ 0.9 %
  • Weight:  Approx. 980 g
  • Audio output:
    • 6.3 mm jack socket (unbalanced): +12 dBu
    • XLR socket (balanced): +18 dBu
  • Signal-to-noise ratio:  ≥ 115 dBA
  • Switching bandwidth:  up to 88 MHz
  • Peak deviation:  ±48 kHz
  • Nominal deviation:  ±24 kHz
  • Modulation:  Wideband FM
  • Power supply:  12 V DC
  • Current consumption:  350 mA
  • Adjacent channel rejection: Typically ≥ 75 dB
  • Intermodulation attenuation:  Typically ≥ 70 dB
  • Receiving frequency: Max. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
  • RF sensitivity:  < 2.5 μV for 52 dBA eff S/N
  • Squelch: 5 to 25 dBμV in steps of 2 dB
  • Equaliser
    • Preset 1: Flat
    • Preset 2: Low Cut (-3 dB at 180 Hz)
    • Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
    • Preset 4: High Boost (+6 dB at 10 kHz)
  • Antenna Connector:  2 BNC sockets
  • Temperature Range:  -10 °C to +55 °C
  • Receiver Principle:  True diversity
  • Blocking:  ≥ 75 dB

SKM 500 G4

  • Dimensions:  Approx. Ø 50 x 265 mm
  • Compander:  Sennheiser HDX
  • THD, total harmonic distortion:  ≤ 0.9 %
  • Weight (incl. batteries):  approx. 450 g
  • Signal-to-noise ratio:  ≥ 115 dBA
  • RF output power:
    • Low: typ. 10 mW
    • Standard: typ. 30 mW
    • High: typ. 50 mW
  • Switching bandwidth:  up to 88 MHz
  • Peak deviation:  ±48 kHz
  • Nominal deviation:  ±24 kHz
  • Operating time:  Typically 8 h
  • Modulation:  Wideband FM
  • Power supply:  2 AA batteries, 1.5 V or BA 2015 accupack
  • Current consumption
  • at nominal voltage: typ. 180 mA
  • with transmitter switched off: ≤ 25 µA
  • Powering:  3 V battery / 2.4 V rechargeable battery
  • Transmission frequency:  Max. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
  • AF frequency response:  80 – 18,000 Hz
  • Temperature Range:  -10 °C to +55 °C
  • Frequency stability:  ≤ ±15 ppm

KK 205

  • Max. sound pressure level:  150 dB
  • Pick-up pattern:  supercardioid
  • Signal-to-noise ratio:  70 dB
  • Sensitivity:  2.8 mV/Pa

Part Number: 508553

Manufacturer: Sennheiser

Related Collections:

Product form

SKU: SE-EW-500-G4-KK205-GBW-CH38

In stock

£1,589.00 Incl. VAT

    Delivery informationDelivery information

    There is a free standard delivery option for most UK orders as well as a £2.99 option which means your order will arrive faster than normal.

    For standard delivery your order should arrive within 2-5 working days. For the faster option it should be 1-3 working days.

    If you're from Northern Ireland there will be a £5 surcharge for heavier items. If you're buying a light item (under 2kg) please let us know as we may be able to refund your postage after the purchase.

    Buy now pay laterBuy now pay later

    Paypal Pay in 3 lets you spread your purchase interest free over 3 separate payments.

    If you'd like to use Paypal Pay in 3, please perform the following steps.

    1. Add the item to your cart as normal.

    2. Check out with Paypal.

    3. Log into Paypal.

    4. You should see a screen detailing the item costs. Scroll down and you should see an option for "Pay in 3".

    5. Continue the checkout process.

    1/3 of the purchase price will be taken immediately and then the rest over the next 2 months the rest of the payment will be taken.

    Please see more info about the service here.

    As with any sort of buy now pay later, please only use this service for added convenience when making a bigger purchase. It should only be used if you're 100% sure you can make all of the payments on time.
