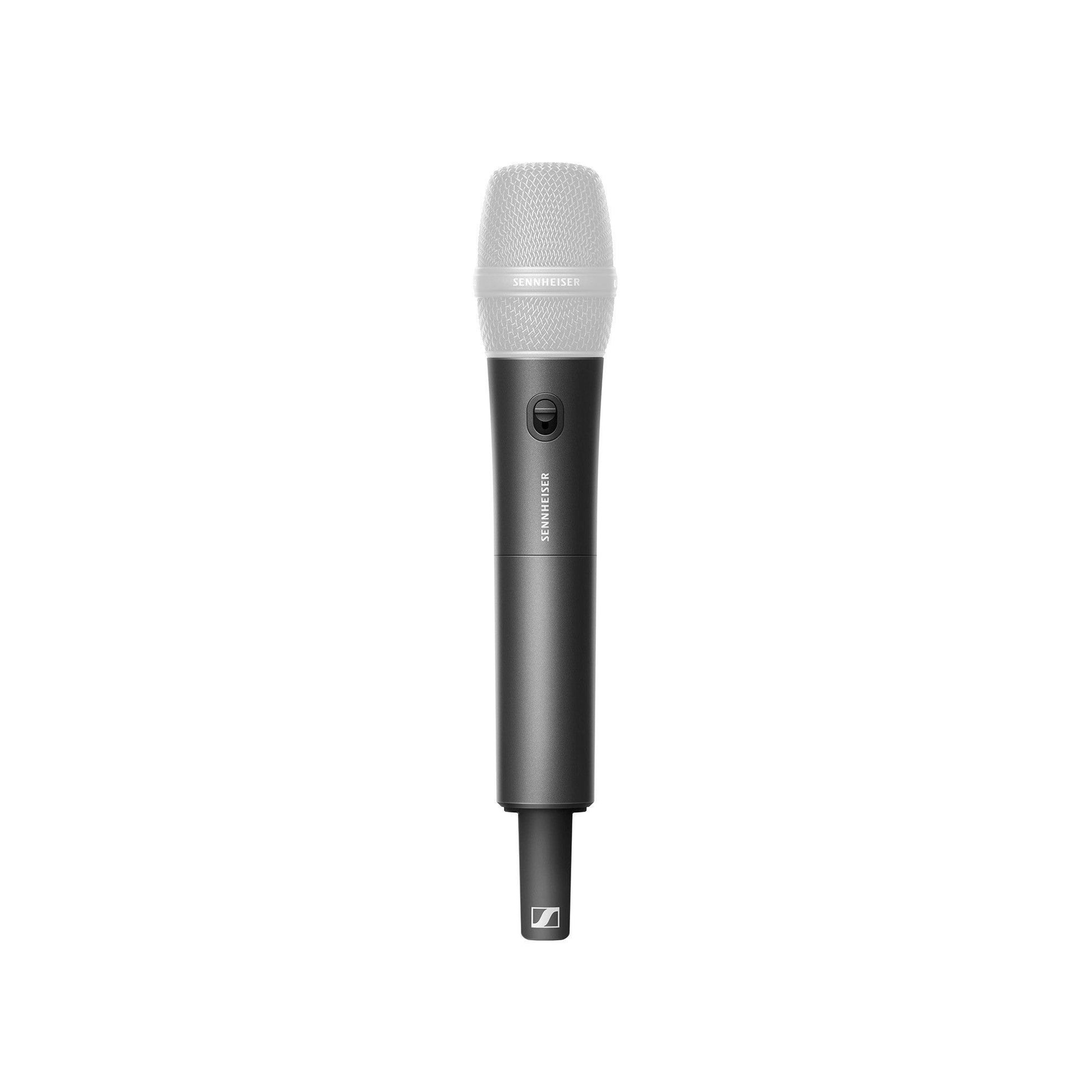

Sennheiser EW-D SKM-S Handheld Transmitter (S1-7)

The Sennheiser Sennheiser EW-D SKM-S Handheld Transmitter (S1-7) on channel 38 with switch and mute (excluding capsule) is a powerful handheld transmitter with a lightweight aluminium housing.

Features:

• Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability
• Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
• Auto scan creates reliable connections with minimal time and effort
• 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
• Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
• 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
• 2,240 selectable frequencies allow for fine tuning
• Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)
• Channel 38

• Excluding capsule

Specifications:

• Input voltage:  2.0 - 4.35 V
• Input current:  < 300 mA
• Frequency range: S1-7 606.2 - 662 MHz
• Power supply:  2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack
• Occupied bandwidth:  200 kHz
• Transmit power (radiated):  Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP); BLE: max. 10 mW EIRP
• Dimensions (ø x l):
  • 50 x 268 mm (incl. MMD 835 microphone module)
  • 40 x 200 mm (without microphone module)
• Weight (without batteries) approx. 304 g (incl. MMD 835 microphone module), approx. 195 g (without microphone module)

Manufacturer: Sennheiser
