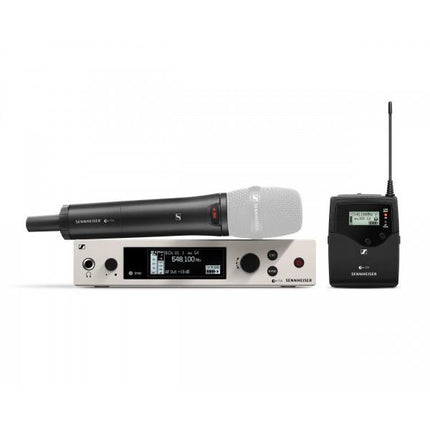

Sennheiser EW 300 G4 SKM-S-RC-GBw Set CH38

Description

The Sennheiser EW300 G4-Base SKM-S-RC-GBw Handheld/Bodypack Base System Combo with SKM300/SK300 on channel 38.

Uses the power of an increased switching bandwidth of up to 88 MHz.

New frequency ranges allow to operate multi-channel setups with dozens of channels while securing reliable operation - despite digital dividend.

The best choice if you need bodypack, handheld transmitters and maximum flexibility.

This base set consists of the stationary receiver as well as a bodypack and a handheld transmitter.

Just add your favourite capsule and clip-on or headset microphone.

Please Note: Handheld transmitter capsules and lapel mics sold separately

Features:

  • Easy to use, fast setup time
  • Integrated network port allows control, monitoring and setup via Sennheiser Control Cockpit and WSM Software
  • Broad range of products and existing accessories (such as microphones) allows usage in any kind of environment
  • Up to 88 MHz bandwidth, up to 32 channels
  • Increased RF output power (10/30/50 mW)
  • Transmission Range: up to 100 meters / 330 feet
  • Compatible with wireless speaker system LSP 500 PRO
  • RC (remote control) switch available for the bodypack transmitter

Specifications:

EM 300-500 G4 - General

  • Modulation: Wideband FM
  • Frequency ranges:
    • Aw+: 470 - 558 MHz
    • AS: 520 - 558 MHz
    • Gw1: 558 - 608 MHz
    • Gw: 558 - 626 MHz
    • GBw: 606 - 678 MHz
    • Bw: 526 - 698 MHz
    • Cw: 718 - 790 MHz
    • Dw: 790 - 865 MHz
    • JB: 806 - 810 MHz
    • K+: 925 - 937.5 MHz
  • Receiving frequencies
    • Max. 2880 receiving frequencies, adjustable in 25  kHz steps
    • 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
    • 6 frequency banks with up to 32 programmable channels
  • Switching: bandwidth up to 72 MHz
  • Nominal/peak deviation: ±24 kHz / ±48 kHz
  • Receiver principle: True diversity
  • Sensitivity (with HDX, peak deviation): < 2.5 μV for 52 dBA eff S/N
  • Adjacent channel selection: Typically ≥ 75 dB
  • Intermodulation attenuation: Typically ≥ 70 dB
  • Blocking: ≥ 75 dB
  • Squelch: 5 to 25 dBμV in steps of 2 dB
  • Pilot tone squelch: Can be switched off
  • Antenna inputs: 2 BNC sockets
  • Compander system: Sennheiser HDX
  • EQ presets (switchable, act on line and monitor outputs):
    • Preset 1: Flat
    • Preset 2: Low Cut (-3 dB at 180 Hz)
    • Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
    • Preset 4: High Boost (+6 dB at 10 kHz)
  • Signal-to-noise ratio (1 mV, peak deviation): ≥ 115 dBA
  • Total harmonic distortion (THD): ≤ 0.9 %
  • AF output voltage (at peak deviation, 1 kHz AF): 6.3 mm jack socket (unbalanced): +12 dBu XLR socket (balanced): +18 dBu
  • Setting range “AF Out”: 48 dB (3 dB steps)
  • Temperature range: -10 °C to +55 °C
  • Power supply: 12 V DC
  • Current consumption: 350 mA

EM 300-500 G4 - Physical & Dimensions

  • Height: 43mm
  • Width: 212mm
  • Depth: 202mm
  • Weight: 980g

SK 300 G4 - General

  • Modulation: Wideband FM
  • Frequency ranges:
    • Aw+: 470 - 558 MHz
    • AS: 520 - 558 MHz
    • Gw1: 558 - 608 MHz
    • Gw: 558 - 626 MHz
    • GBw: 606 - 678 MHz
    • Bw: 526 - 698 MHz
    • Cw: 718 - 790 MHz
    • Dw: 790 - 865 MHz
    • JB: 806 - 810 MHz
    • K+: 925 - 937.5 MHz
  • Transmission frequencies
    • Max. 2880 frequencies, adjustable in 25 kHz steps
    • 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
    • 6 frequency banks with up to 32 programmable channels
  • Switching bandwidth: up to 72 MHz
  • Nominal/peak deviation:  ±24 kHz / ±48 kHz
  • Frequency stability: ≤ ±15 ppm
  • RF output power at 50 Ω switchable:
    • Low: typ. 10 mW
    • Standard: typ. 30 mW
    • High: typ. 50 mW
  • Pilot tone squelch: Can be switched off
  • Compander system: Sennheiser HDX
  • AF frequency response
  • Mic: 80 – 18,000 Hz
  • Line: 25 – 18,000 Hz
  • Signal-to-noise ratio (1 mV, peak deviation): ≥ 115 dBA
  • Total harmonic distortion (THD): ≤ 0.9 %
  • Max. microphone/line input voltage: 3 Veff
  • Microphone/line input impedance: 40 kΩ, unbalanced / 1 MΩ
  • Input capacitance: Switchable
  • Setting range for input sensitivity: 60 dB, adjustable in 3 dB steps
  • Temperature range: -10 °C to +55 °C
  • Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
  • Nominal voltage: 3 V battery / 2.4 V rechargeable battery
  • Current consumption: at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 μA
  • Operating time: Typically 8 h

SK 300 G4 - Physical & Dimensions

  • Height: 82mm
  • Width: 64mm
  • Depth: 24mm
  • Weight: 160g

SKM 300 G4-S - General

  • Modulation: Wideband FM
  • Frequency ranges:
    • Aw+: 470 - 558 MHz
    • AS: 520 - 558 MHz
    • Gw1: 558 - 608 MHz
    • Gw: 558 - 626 MHz
    • GBw: 606 - 678 MHz
    • Bw: 526 - 698 MHz
    • Cw: 718 - 790 MHz
    • Dw: 790 - 865 MHz
    • JB: 806 - 810MHz
    • K+: 925 - 937.5 MHz
  • Transmission frequencies
    • Max. 2880 frequencies, adjustable in 25 kHz steps
    • 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
    • 6 frequency banks with up to 32 programmable channels
  • Switching bandwidth: up to 72 MHz
  • Nominal/peak deviation: ±24 kHz / ±48 kHz
  • Frequency stability: ≤ ±15 ppm
  • RF output power at 50 Ω switchable:
    • Low: typ. 10 mW
    • Standard: typ. 30 mW
    • High: typ. 50 mW
  • Pilot tone squelch: Can be switched off
  • Compander system: Sennheiser HDX
  • AF: frequency response 80 – 18,000 Hz
  • Signal-to-noise ratio (1 mV, peak deviation): ≥ 115 dBA
  • Total harmonic distortion (THD): ≤ 0.9 %
  • Setting range for input sensitivity: 48 dB, adjustable in 6 dB steps
  • Temperature range: -10 °C to +55 °C
  • Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
  • Nominal voltage: 3 V battery / 2.4 V rechargeable battery
  • Current consumption: at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 μA
  • Operating time: Typically 8 h

SKM 300 G4-S - Physical & Dimensions

  • Ø: 50 x 265mm
  • Weight: 450g

Part Number: 507712

Manufacturer: Sennheiser
