Description

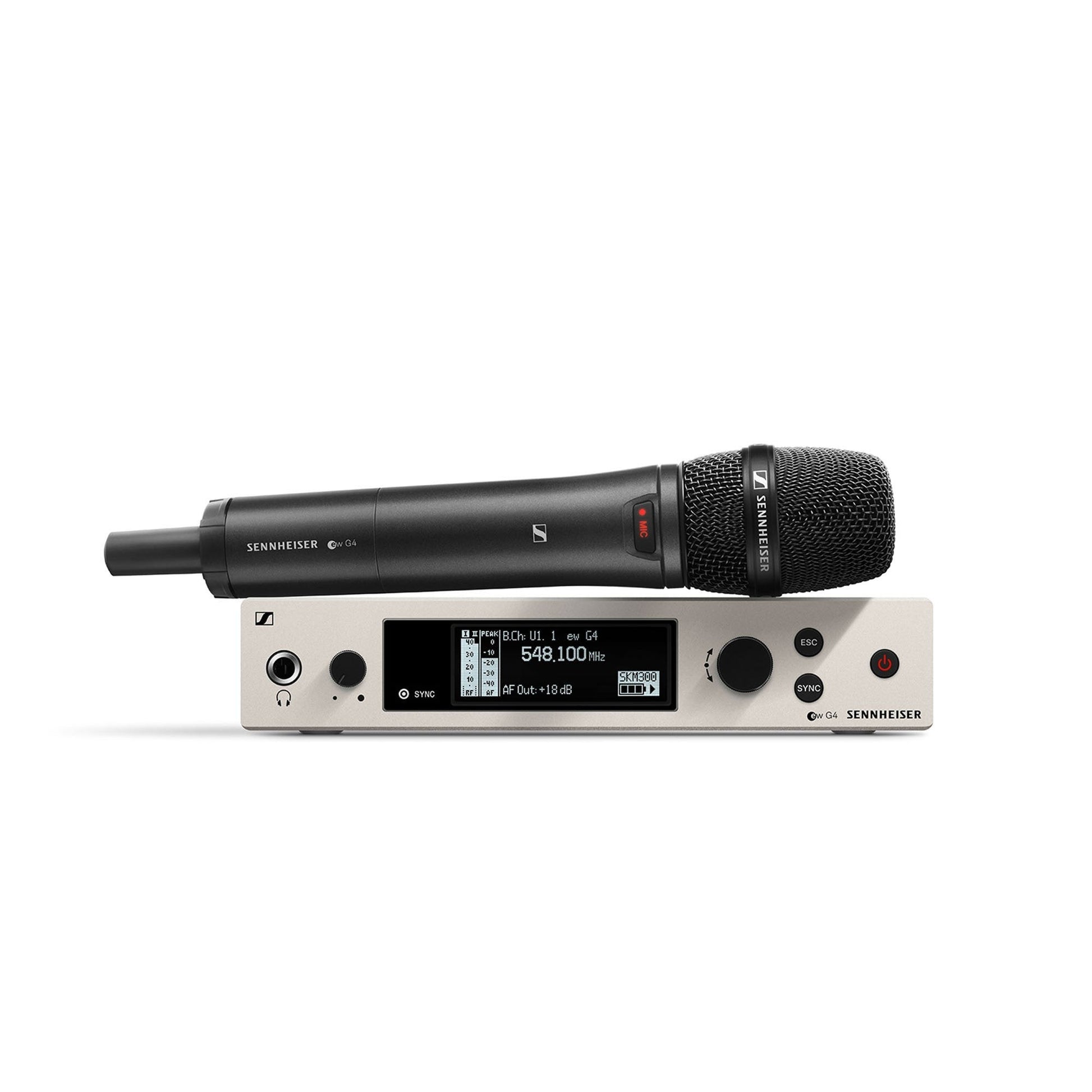

The Sennheiser EW100 G4-865-S-GBw Vocal Set Handheld System with 865S Supercardiod Microphone on channel 38 is a versatile wireless system.
Series uses the power of an increased switching bandwidth of up to 88 MHz.
New frequency ranges allow to operate multi-channel setups with dozens of channels while securing reliable operation - despite digital dividend.
The aluminium housing of the handheld transmitter is not just robust but also lightweight for long speeches, whereas the noiseless mute switch ensures full control.
Features:
- Easy to use, fast setup time
- Integrated network port allows control, monitoring and setup via Sennheiser Control Cockpit and WSM Software
- Broad range of products and existing accessories (such as microphones) allows usage in any kind of environment
- Up to 88 MHz bandwidth, up to 32 channels
- Increased RF output power (10/30/50 mW)
- Transmission Range: up to 100 meters / 330 feet
- Compatible with wireless speaker system LSP 500 PRO
- RC (remote control) switch available for the bodypack transmitter
Specifications:
EM 300-500 G4 - General
- Modulation: Wideband FM
- Frequency ranges:
- Aw+: 470 - 558 MHz
- AS: 520 - 558 MHz
- Gw1: 558 - 608 MHz
- Gw: 558 - 626 MHz
- GBw: 606 - 678 MHz
- Bw: 526 - 698 MHz
- Cw: 718 - 790 MHz
- Dw: 790 - 865 MHz
- JB: 806 - 810 MHz
- K+: 925 - 937.5 MHz
- Receiving frequencies
- Max. 2880 receiving frequencies, adjustable in 25 kHz steps
- 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
- 6 frequency banks with up to 32 programmable channels
- Switching: bandwidth up to 72 MHz
- Nominal/peak deviation: ±24 kHz / ±48 kHz
- Receiver principle: True diversity
- Sensitivity (with HDX, peak deviation): < 2.5 μV for 52 dBA eff S/N
- Adjacent channel selection: Typically ≥ 75 dB
- Intermodulation attenuation: Typically ≥ 70 dB
- Blocking: ≥ 75 dB
- Squelch: 5 to 25 dBμV in steps of 2 dB
- Pilot tone squelch: Can be switched off
- Antenna inputs: 2 BNC sockets
- Compander system: Sennheiser HDX
- EQ presets (switchable, act on line and monitor outputs):
- Preset 1: Flat
- Preset 2: Low Cut (-3 dB at 180 Hz)
- Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
- Preset 4: High Boost (+6 dB at 10 kHz)
- Signal-to-noise ratio (1 mV, peak deviation): ≥ 115 dBA
- Total harmonic distortion (THD): ≤ 0.9 %
- AF output voltage (at peak deviation, 1 kHz AF): 6.3 mm jack socket (unbalanced): +12 dBu XLR socket (balanced): +18 dBu
- Setting range “AF Out”: 48 dB (3 dB steps)
- Temperature range: -10 °C to +55 °C
- Power supply: 12 V DC
- Current consumption: 350 mA
EM 300-500 G4 - Physical & Dimensions
- Height: 43mm
- Width: 212mm
- Depth: 202mm
- Weight: 980g
SKM 300 G4-S - General
- Modulation: Wideband FM
- Frequency ranges:
- Aw+: 470 - 558 MHz
- AS: 520 - 558 MHz
- Gw1: 558 - 608 MHz
- Gw: 558 - 626 MHz
- GBw: 606 - 678 MHz
- Bw: 526 - 698 MHz
- Cw: 718 - 790 MHz
- Dw: 790 - 865 MHz
- JB: 806 - 810MHz
- K+: 925 - 937.5 MHz
- Transmission frequencies
- Max. 2880 frequencies, adjustable in 25 kHz steps
- 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
- 6 frequency banks with up to 32 programmable channels
- Switching bandwidth: up to 72 MHz
- Nominal/peak deviation: ±24 kHz / ±48 kHz
- Frequency stability: ≤ ±15 ppm
- RF output power at 50 Ω switchable:
- Low: typ. 10 mW
- Standard: typ. 30 mW
- High: typ. 50 mW
- Pilot tone squelch: Can be switched off
- Compander system: Sennheiser HDX
- AF: frequency response 80 – 18,000 Hz
- Signal-to-noise ratio (1 mV, peak deviation): ≥ 115 dBA
- Total harmonic distortion (THD): ≤ 0.9 %
- Setting range for input sensitivity: 48 dB, adjustable in 6 dB steps
- Temperature range: -10 °C to +55 °C
- Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
- Nominal voltage: 3 V battery / 2.4 V rechargeable battery
- Current consumption: at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 μA
- Operating time: Typically 8 h
SKM 300 G4-S - Physical & Dimensions
- Ø: 50 x 265mm
- Weight: 450g
MME 865-1
- Transducer principle: pre-polarized condensor microphone
- Sensitivity: 1.6 mV/Pa
- Sound pressure level: 152 dB SPL
- Pick-up pattern: supercardioid
Part Number: 507688
Manufacturer: Sennheiser
