Sennheiser EW 500 G4-965-GBw Vocal Set CH38

Description

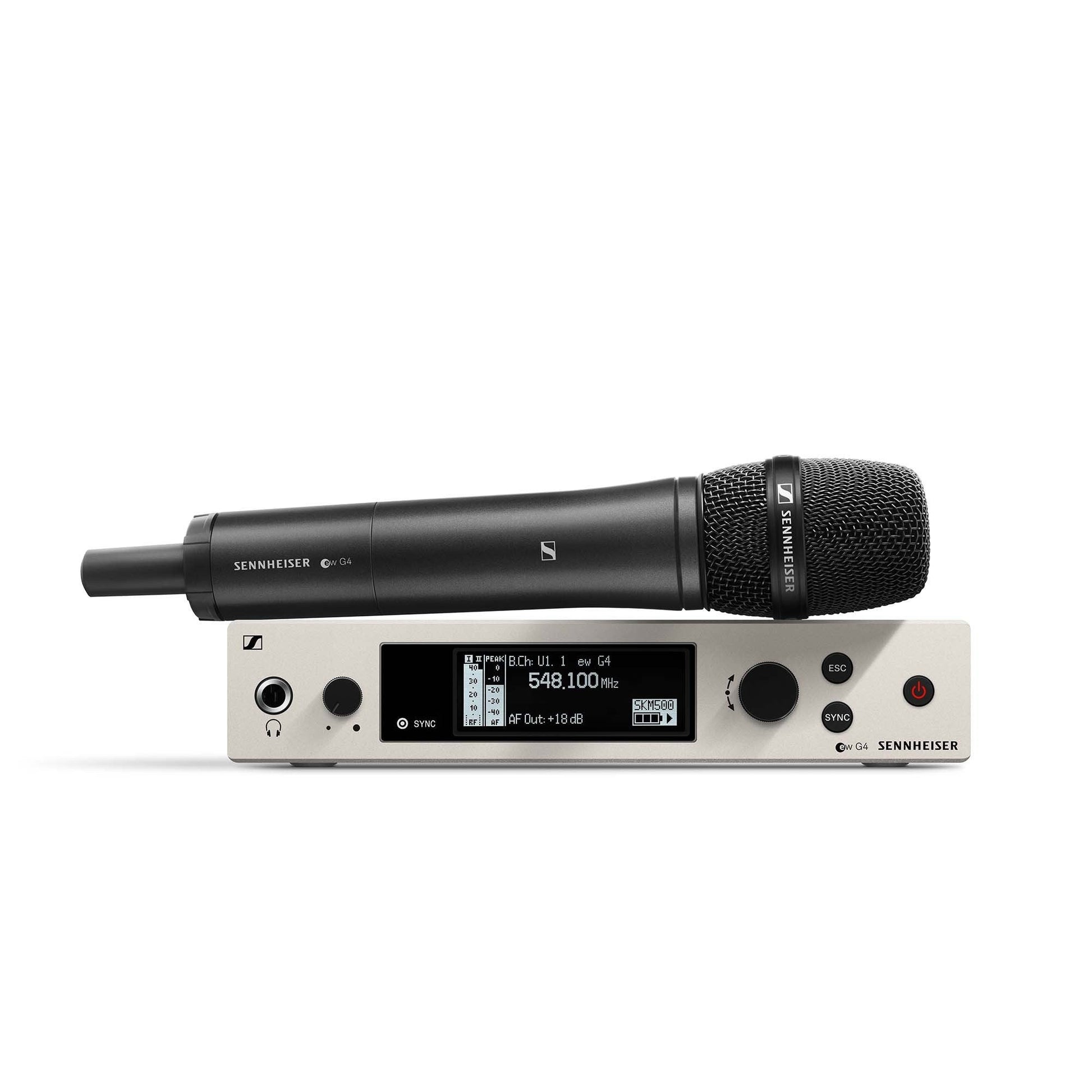

The Sennheiser EW500 G4-965-GBw Vocal Set Handheld System with E965 Cardioid/Supercardioid switchable Microphone on channel 38 is a professional wireless handheld system.

Renowned sound engineers rely on ew 500 G4‘s flexibility, especially when handling multi-channel settings on the world‘s music stages. Up to 88 MHz bandwidth, up to 32 channels.

The pinnacle of the evolution series, powered by Sennheiser’s renowned e 965 on a lightweight black aluminium handheld transmitter, ready to take the world’s biggest live stages.

Features:

  • True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control
  • Easy and flexible wireless synchronisation between transmitter and receiver via infrared
  • Up to 32 compatible channels
  • Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
  • Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
  • High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations

Specifications:

EM 300-500 G4 - General

  • Modulation: Wideband FM
  • Frequency ranges:
    • Aw+: 470 - 558 MHz
    • AS: 520 - 558 MHz
    • Gw1: 558 - 608 MHz
    • Gw: 558 - 626 MHz
    • GBw: 606 - 678 MHz
    • Bw: 526 - 698 MHz
    • Cw: 718 - 790 MHz
    • Dw: 790 - 865 MHz
    • JB: 806 - 810 MHz
    • K+: 925 - 937.5 MHz
  • Receiving frequencies
    • Max. 2880 receiving frequencies, adjustable in 25  kHz steps
    • 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
    • 6 frequency banks with up to 32 programmable channels
  • Switching: bandwidth up to 72 MHz
  • Nominal/peak deviation: ±24 kHz / ±48 kHz
  • Receiver principle: True diversity
  • Sensitivity (with HDX, peak deviation): < 2.5 μV for 52 dBA eff S/N
  • Adjacent channel selection: Typically ≥ 75 dB
  • Intermodulation attenuation: Typically ≥ 70 dB
  • Blocking: ≥ 75 dB
  • Squelch: 5 to 25 dBμV in steps of 2 dB
  • Pilot tone squelch: Can be switched off
  • Antenna inputs: 2 BNC sockets
  • Compander system: Sennheiser HDX
  • EQ presets (switchable, act on line and monitor outputs):
    • Preset 1: Flat
    • Preset 2: Low Cut (-3 dB at 180 Hz)
    • Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
    • Preset 4: High Boost (+6 dB at 10 kHz)
  • Signal-to-noise ratio (1 mV, peak deviation): ≥ 115 dBA
  • Total harmonic distortion (THD): ≤ 0.9 %
  • AF output voltage (at peak deviation, 1 kHz AF): 6.3 mm jack socket (unbalanced): +12 dBu XLR socket (balanced): +18 dBu
  • Setting range “AF Out”: 48 dB (3 dB steps)
  • Temperature range: -10 °C to +55 °C
  • Power supply: 12 V DC
  • Current consumption: 350 mA

EM 300-500 G4 - Physical & Dimensions

  • Height: 43mm
  • Width: 212mm
  • Depth: 202mm
  • Weight: 980g

SK 500 G4 - General

  • Modulation: Wideband FM
  • Frequency ranges
    • Aw+: 470 - 558 MHz
    • AS: 520 - 558 MHz
    • Gw1: 558 - 608 MHz
    • Gw: 558 - 626 MHz
    • GBw: 606 - 678 MHz
    • Bw: 526 - 698 MHz
    • Cw: 718 - 790 MHz
    • Dw: 790 - 865 MHz
    • JB: 806 - 810 MHz
    • K+: 925 - 937.5 MHz
  • Transmission frequencies
    • Max. 2880 frequencies, adjustable in 25 kHz steps
    • 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation
    • 6 frequency banks with up to 32 programmable channels
  • Switching bandwidth: up to 72 MHz
  • Nominal/peak deviation: ±24 kHz / ±48 kHz
  • Frequency stability: ≤ ±15 ppm
  • RF output power at 50 Ω switchable:
    • Low: typ. 10 mW
    • Standard: typ. 30 mW
    • High: typ. 50 mW
  • Pilot tone squelch: Can be switched off
  • Compander system: Sennheiser HDX
  • AF frequency response
  • Mic: 80 – 18,000 Hz
  • Line: 25 – 18,000 Hz
  • Signal-to-noise ratio (1 mV, peak deviation): ≥ 115 dBA
  • Total harmonic distortion (THD): ≤ 0.9 %
  • Max. microphone/line input voltage: 3 Veff
  • Microphone/line input impedance: 40 kΩ, unbalanced / 1 MΩ
  • Input capacitance: Switchable
  • Setting range for input sensitivity: 60 dB, adjustable in 3 dB steps
  • Temperature range: -10 °C to +55 °C
  • Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
  • Nominal voltage: 3 V battery / 2.4 V rechargeable battery
  • Current consumption: at nominal voltage: typ. 180 mA with transmitter switched off: ≤ 25 μA
  • Operating time: Typically 8 h

SK 500 G4 - Physical & Dimensions

  • Height: 82mm
  • Width: 64mm
  • Depth: 24mm
  • Weight: 160g

MMK 965-1

  • Transducer: Double-diaphragm condenser microphone
  • Pick-up pattern: cardioid/supercardioid, switchable
  • Sensitivity (free field, no load) (1 kHz) 7.0 mV/Pa
    • with preattenuation 2.2 mV/Pa (factory setting)
  • Max. SPL at 1 kHz 144 dB
    • with preattenuation 154 dB (factory setting)
  • Dynamic range: 126 dB(A)
  • Diameter of diaphragm: 2.54 cm (1")
  • Frequency response: 40 to 20,000 Hz
  • "Equivalent noise level A-weighted (DIN IEC 651)" 18 dB
  • Weight: 162g

Part Number: 507767

Manufacturer: Sennheiser

Related Collections:

Product form

SKU: SE-EW500-G4-E-E965-CH38

In stock

£1,409.00 Incl. VAT

    Delivery informationDelivery information

    There is a free standard delivery option for most UK orders as well as a £2.99 option which means your order will arrive faster than normal.

    For standard delivery your order should arrive within 2-5 working days. For the faster option it should be 1-3 working days.

    If you're from Northern Ireland there will be a £5 surcharge for heavier items. If you're buying a light item (under 2kg) please let us know as we may be able to refund your postage after the purchase.

    Buy now pay laterBuy now pay later

    Paypal Pay in 3 lets you spread your purchase interest free over 3 separate payments.

    If you'd like to use Paypal Pay in 3, please perform the following steps.

    1. Add the item to your cart as normal.

    2. Check out with Paypal.

    3. Log into Paypal.

    4. You should see a screen detailing the item costs. Scroll down and you should see an option for "Pay in 3".

    5. Continue the checkout process.

    1/3 of the purchase price will be taken immediately and then the rest over the next 2 months the rest of the payment will be taken.

    Please see more info about the service here.

    As with any sort of buy now pay later, please only use this service for added convenience when making a bigger purchase. It should only be used if you're 100% sure you can make all of the payments on time.
