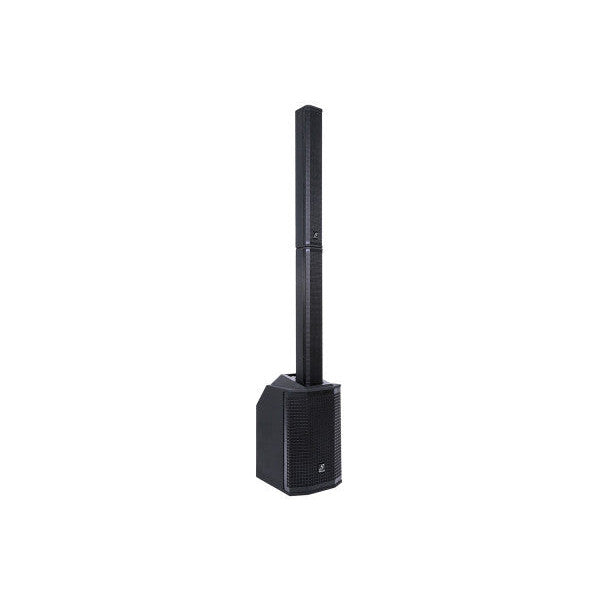

Studiomaster DIRECT 101MX 10" Active All-in-One PA Speaker System + DSP Mixer

Studiomaster DIRECT 101MX 10" Active All-in-One PA Speaker System + DSP Mixer

Out of stock

Regular price $749.00 USD
Regular price Sale price $749.00 USD
Sale Sold out

Prices VAT inclusive. UK delivery free.

  • 1 x Vertical array
  • 1 x 10″ Active subwoofer with mixer
  • 4-channel dsp mixer
  • 2 x switchable MIC/LINE inputs
  • 1 x HI-Z instrument input
  • 1 x RCA / bluetooth stereo input

DIRECT 101MX 10" Active All-in-One PA Speaker System + DSP Mixer

Designed for DJs, small bands, presentations, education and houses of worship, the DIRECT MX series is an all in one column array PA solution with a powerful 2000W built-in amplifier, comprehensive 4 channel mixing, Bluetooth 5.0 playback (with TWS) and reverb effects on the input channels.

Capable of reproducing very low-end frequencies and clear, musical highs through the custom designed wood enclosures, that securely connect together with a unique internal connection, so you can have your PA set-up and ready to go in seconds. All Direct models have 6 x 3″ mid range transducers combined with a 1″ compression driver to deliver clear highs and clarity of your vocals or instruments. The 10″ or 12″ active sub bass gives a big punchy response capable of reproducing the lowest frequencies through its bass-reflex design.

The DirectMX comes installed with a 4-channel dsp mixer, including 2 x switchable MIC/LINE inputs with gain and reverb controls, 1 x HI-Z instrument input, 1 x RCA / Bluetooth stereo input and an XLR line output. There is also an Independent SUB LEVEL control for quick bass adjustment. A Powerful 24-bit DSP interface with display allows for the adjustment of 3 operation modes: music, dj, speech. 3 band EQ with sweepable mid frequency and storable presets, digital gain control, high-pass filtering, dual-channel limiter, Digital delay for delay zones up to 100 m (in steps of 0.25 m) and Bluetooth connection, all controlled via a simple ONE CONTROL encoder. The DirectMX utilises Bluetooth 5.0 large range stereo Bluetooth playback with TWS (true wireless stereo).

No matter your application the DIRECT MX series gives you the connection options you need. The on-board 4 channel mixer comes with 2x MIC/Line inputs with a useful vocal reverb facility, a Hi-Z instrument input for connecting electric guitars and a stereo input for playback either through the phono connections or via Bluetooth 5.0. The DSP allows simple set-up with 3 preset systems: Music, DJ or Speech, along with 3 band master EQ and a useful output delay if using as a delay speaker in a larger system.
