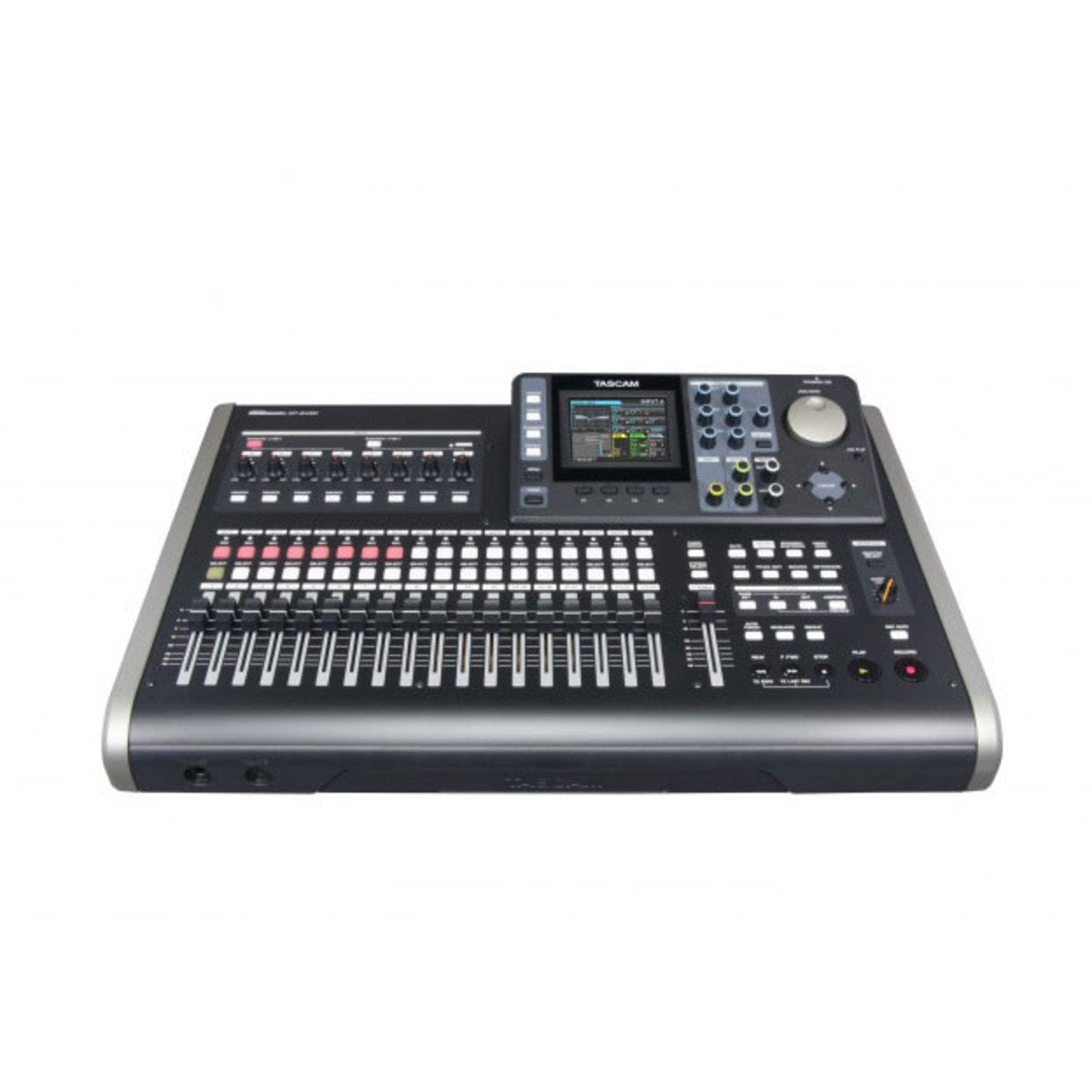

The DP-24 SD is a 24-track Digital Portastudio with solid-state recording, a colour LCD and channel strip controls to make recording simple so you stay creative.
Up to eight tracks can be recorded at a time through its combination XLR and 6.3-mm combo jacks. Input processing like compression and limiting are available during recording, as well as guitar amp simulation and multi-effects for use with the instrument-level input.
Once recorded, tracks can be viewed on the large display and mixed with dedicated mixing controls like nineteen linear faders and a dozen channel strip encoders. Two mixdown effects including reverb and chorus are also available, as well as a mastering effect. Once finished, songs can be transferred to computer over USB for further processing or sharing with other people.
The DP-24SD has eight XLR-TRS combo inputs. You can record up to eight sources at one time and use up to 24 tracks for playback and mixing. Electrical guitars and basses can be connected directly to input H when set to GUITAR.The semi-parametric equalisers for each track and each input are independent from other effects so you can control the sound of each track like any professional sound engineer. There's even a Q control to manipulate the bandwidth of a certain frequency range.
An 8.9-cm (3.5") LCD screen and self-illuminated buttons make it easy to view your entire creative process. Whether you press SOURCE and SELECT buttons to assign an input to a track, or use the REC and MUTE buttons to enable recording or mute a track - you are always aware of the situation, even with little ambient light.
The DP-24SD has twelve mono tracks and six stereo tracks. Use a stereo track for recording synthesizer or other stereo sources and mono tracks when recording guitar or vocals.
Even with its high number of tracks and features, the DP-24SD is one of the easiest multi-track recorders in the market to use. Nineteen track faders and one master fader allow instant access to any track without selecting pages or fader layers. You can use up to eight dynamics effects at once, one for each input source. Choose from Compressor, Noise Suppressor, De-Esser and Exciter.
For example, utilise the built-in compressor for your bass, guitar and drums tracks. There are also guitar multi-effects including Noise Suppression, Amp Simulation, Compression, Chorus, Flanger, Phaser, Tremolo, Auto Wah, and Delay.
Note: When the mutli-effects processor is used, only four dynamics effects are available. The stereo reverb on Send/Return 1 is always available.
The DP-24SD utilises SD/SDHC cards as recording media which are maintenance-free and provide secure shock resistance due to the absence of any moving parts. If you need more recording space, simply put in a new SD card.
File format is FAT 16 or FAT 32, so you can access your recorded files on your computer when connected via USB. You can also import audio files recorded elsewhere to mix them with your Portastudio files.
Product Features
- 24-track digital Portastudio
- Headphones output with 70 mW per channel
- 2 effect send outputs (6.3-mm TS jack)
- Stereo RCA output
- Peak-hold function for level meters on display
- Dedicated controls for EQ, pan and effect sends
- Colour LC display and 12-encoder channel strip for simple operation
- Each track equipped with 3-band EQ
- Instrument-level input for direct recording of guitar or bass
- Phantom power supplied on all inputs (switchable A-D, E-H)
- 8 XLR/TRS combo connectors for inputs
- 44.1 kHz or 48 kHz sampling rate, 16 bit or 24 bit resolution
- Simultaneous recording of 8 tracks
- Simultaneous playback of 24 tracks
- 12 mono tracks + 6 stereo tracks, 19 faders
- SD card included
Product Specifications
- Depth (mm): 340
- Height (mm): 104
- Width (mm): 514
- Net weight (kg): 5.8
- Compatible With: SD card (512 MB to 2 GB) SDHC card (4-32 GB)
- Power: AC adapter (GPE248-120200-Z)
- Power consumption (W): 12 W (Phantom power on)
Manufacturer: Tascam
